Type T/P (thermostatic/pressure balance) double coaxial system with hand shower rail, 4 body jets and shower head

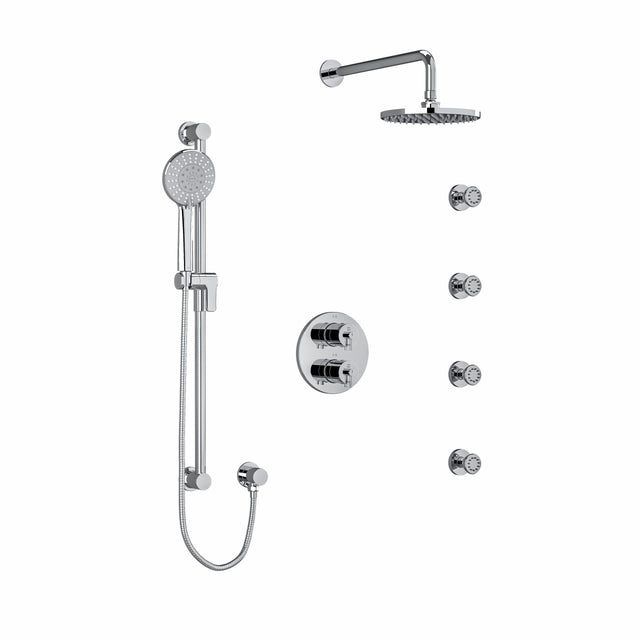

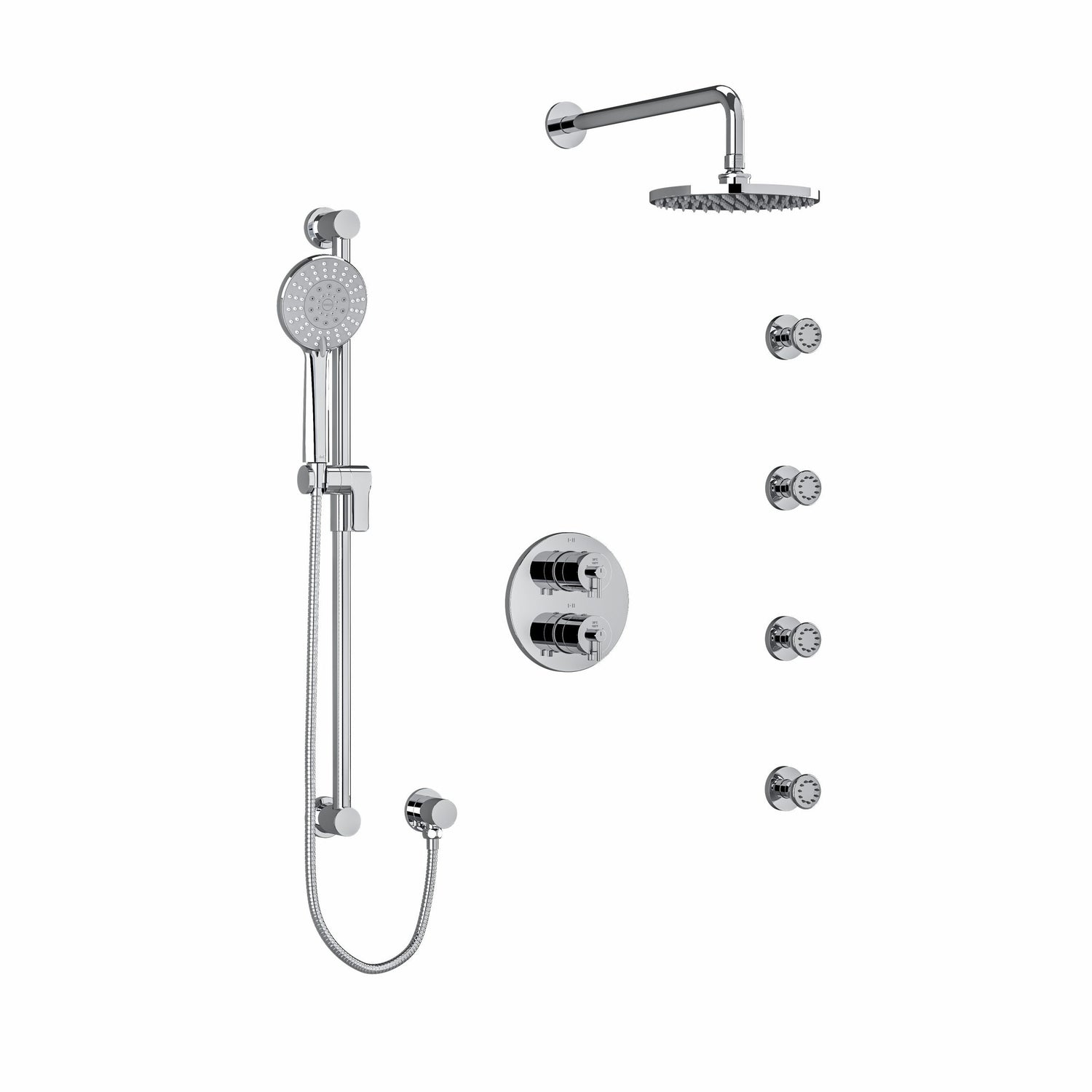

The Riobel GS KIT#446GS is a Type T/P (thermostatic/pressure balance) double coaxial shower system with hand shower rail, 4 body jets and shower head, finished in Chrome. The system is made up of the TGS46C 4-way Type T/P coaxial valve trim, the R46 4-way Type T/P ¾" coaxial valve rough, the 5063C hand shower rail, the 468C 20 cm (8") shower head, the 503C 40 cm (16") shower arm, 390C body jets and the 775C elbow supply.

Features

• R46 valve rough: ¾" male NPT inlet, four ½" female NPT outlets, service valves and test cap
• Installation requirement: the R46 rough must be supplied with minimum ¾" PEX, ¾" EXPANSION PEX or ½" copper
• 5063C hand shower rail: 4363 3-jet hand shower with pause, Ø22 mm (7/8") slide bar, Easy-Glide left cursor and 150 cm (59") double interlock flexible hose, swivel and 2 check valves; scale-free
• 468C shower head: 20 cm (8"), G½" female inlet, swivel and scale-free
• 503C shower arm: 40 cm (16") with ½" male NPT inlet and round flange
• 390C body jets: directional and scale-free, ½" female NPT inlet, flow of 2 to 6 L/min, 0.5 to 1.6 gpm (US) at 60psi
• 775C elbow supply: adjustable depth, ½" male outlet and ½" female NPT inlet

Specifications

• Model: KIT#446GS
• Finish: Chrome
• Certifications: CSA B125.1, ASME A112.18.1, ASSE 1016, CMR248 Approval
• Warranty: Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts against all manufacturing defects, from the initial purchase date; all other finishes, including plastic components, are guaranteed for one year
• Note: Sizes, models and finishes may differ from those presented
