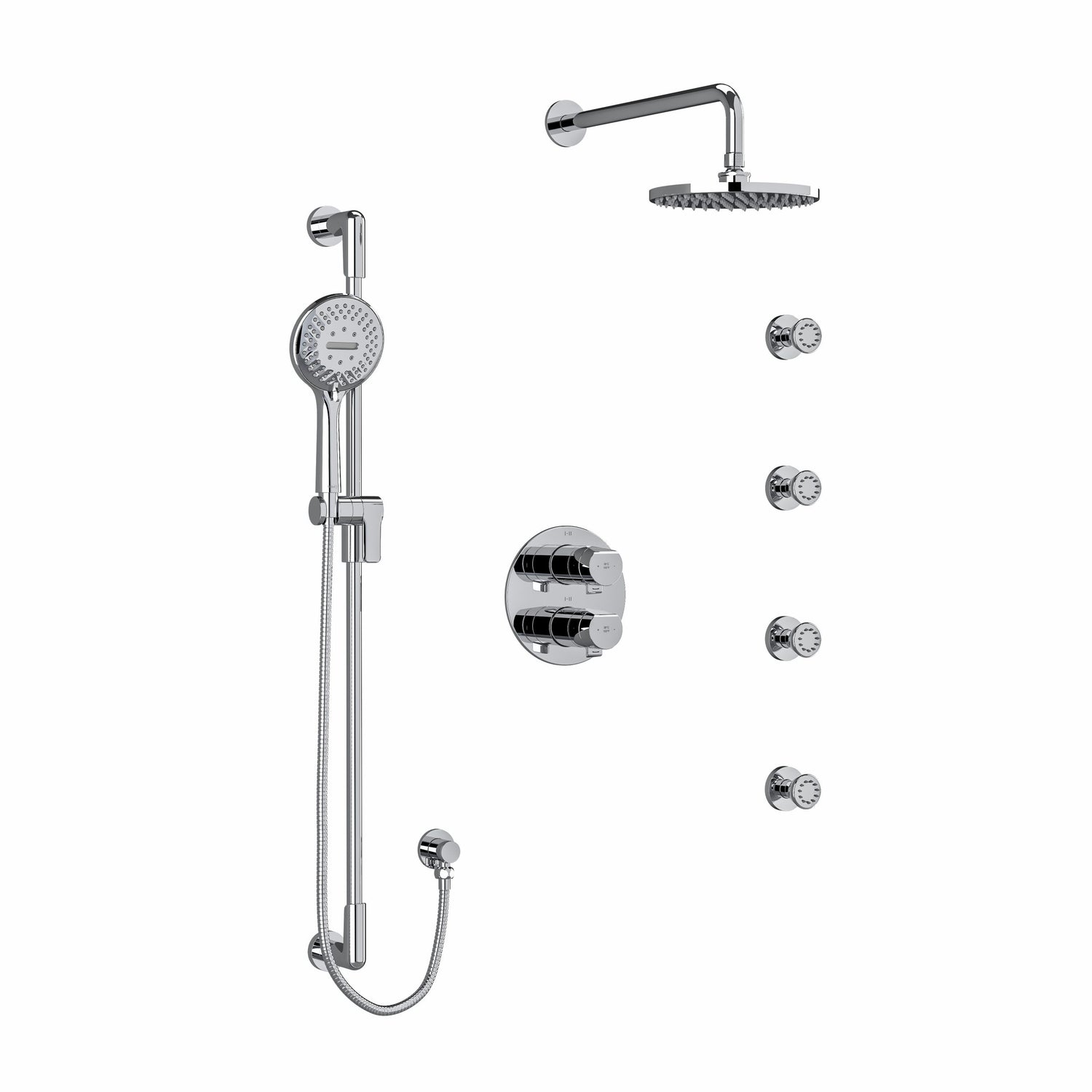

Type T/P (thermostatic/pressure balance) double coaxial system with hand shower rail, 4 body jets and shower head

The Riobel Parabola Type T/P (thermostatic/pressure balance) double coaxial shower system combines a hand shower rail, four body jets and a shower head in one coordinated set. In Chrome (KIT446PBC), the kit comprises the TPB46C 4-way Type T/P coaxial valve trim, R46 ¾" coaxial valve rough, 4839C hand shower rail, 468C 20 cm (8") shower head, 503C 40 cm (16") shower arm, 390C body jets and 710C elbow supply.

Features

• Chrome kit R46 rough: ¾" male NPT inlet, four ½" female NPT outlets, service valves and test cap.
• Installation requirement (Chrome kit R46 rough): it must be supplied with minimum ¾" PEX, ¾" EXPANSION PEX or ½" copper.
• Chrome kit hand shower rail (4839C): Easy-Glide left cursor, scale-free 4375 3-jet hand shower and 150 cm (59") double interlock flexible hose with swivel and 2 check valves.
• Chrome kit shower head (468C): scale-free and swivel, with a G½" female inlet; shower arm (503C): ½" male NPT inlet and round flange.
• Chrome kit body jets (390C): directional and scale-free, with a ½" female NPT inlet.
• Chrome kit elbow supply (710C): ½" female NPT inlet, ½" male outlet and adjustable depth.
• Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts, guaranteed from the initial purchase date against all manufacturing defects; all other finishes, including plastic components, are guaranteed for one year

Specifications

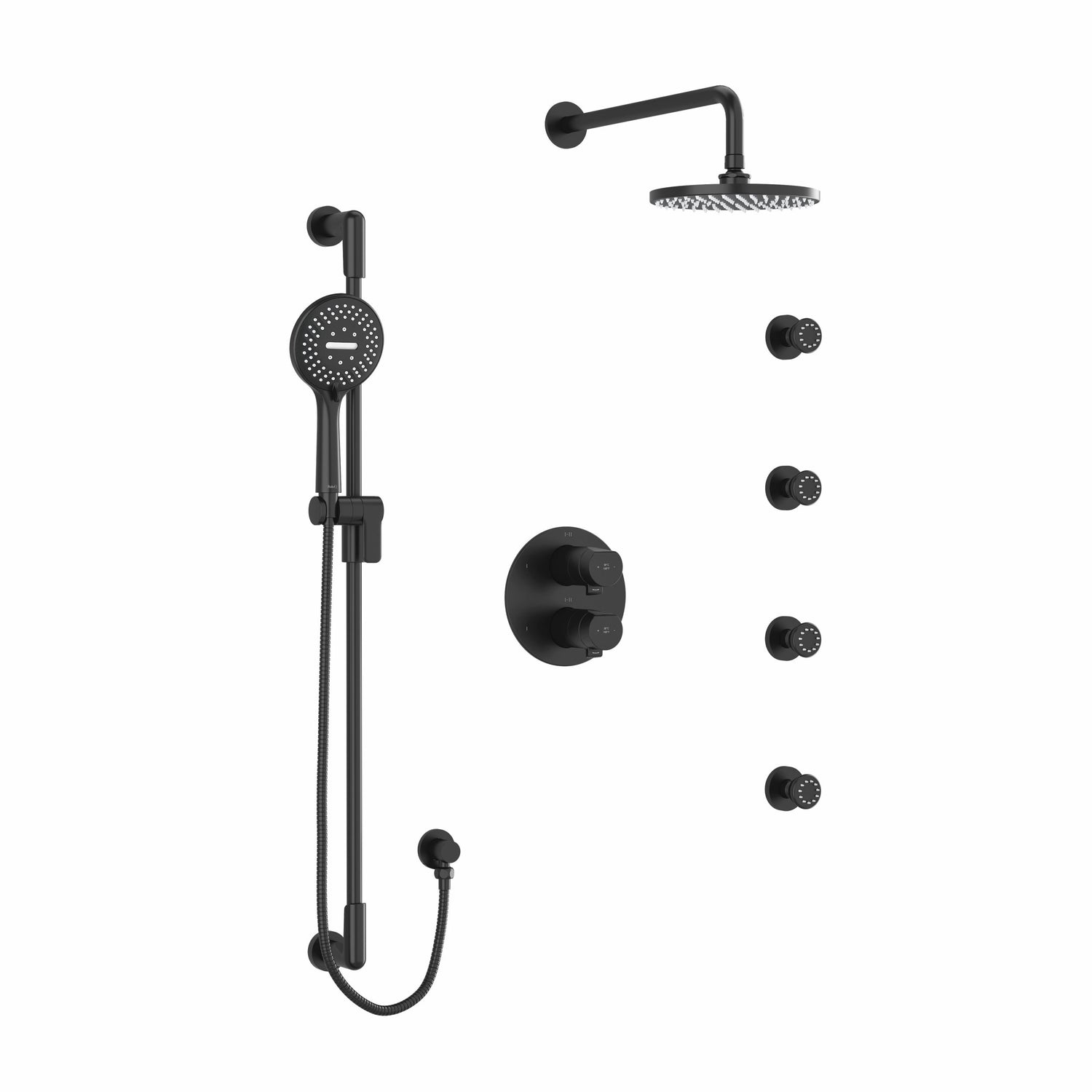

• Available finishes: Brushed Gold, Black, Chrome, Polished Nickel
• Certifications (Chrome kit, KIT446PBC): CSA B125.1, ASME A112.18.1, ASSE 1016
• Body jet flow (Chrome kit): 2 to 6 L/min, 0.5 to 1.6 gpm (US) at 60psi
• Note: Sizes, models and finishes may differ from those presented
