Type T/P (thermostatic/pressure balance) ½" coaxial 3-way system with hand shower rail and rain and cascade shower head

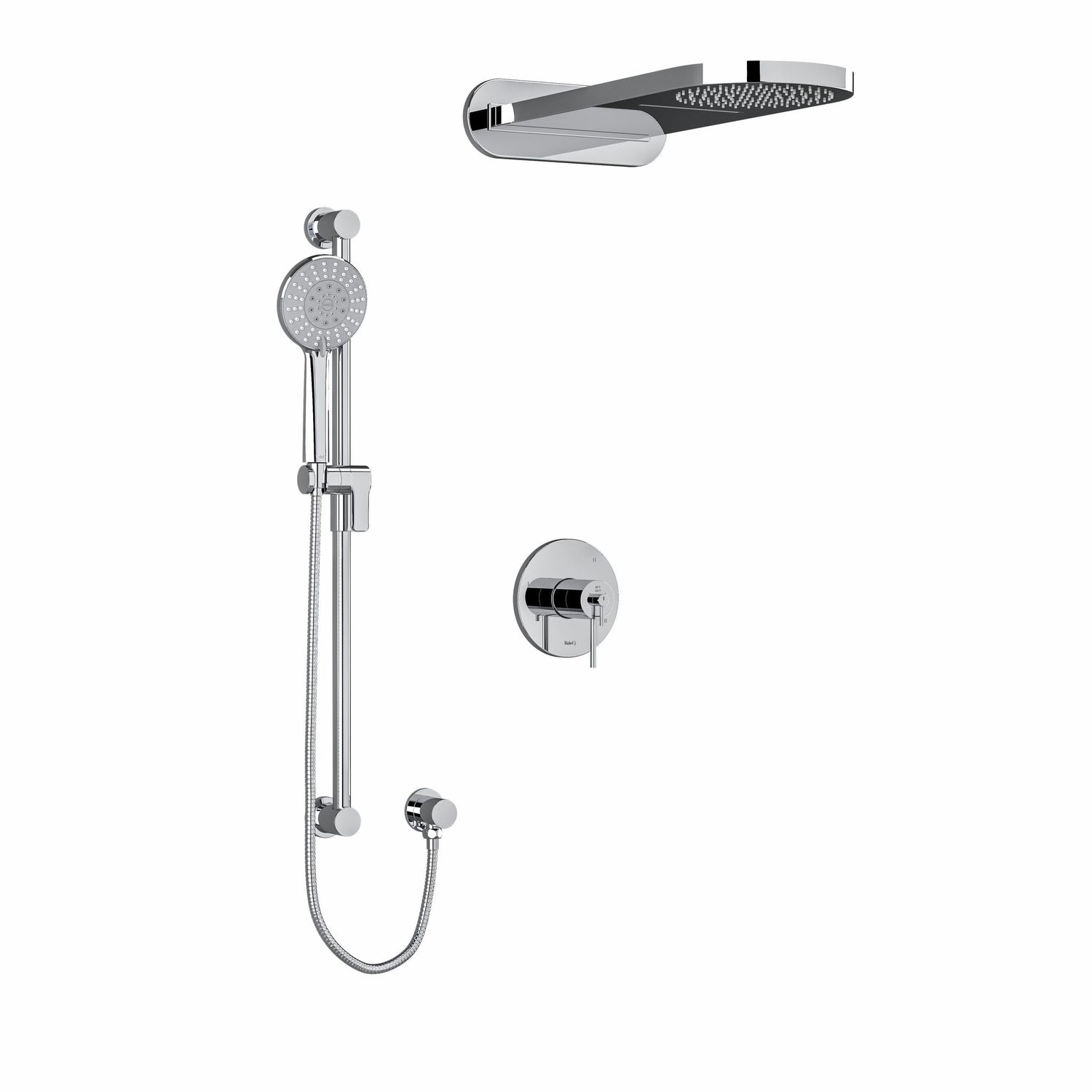

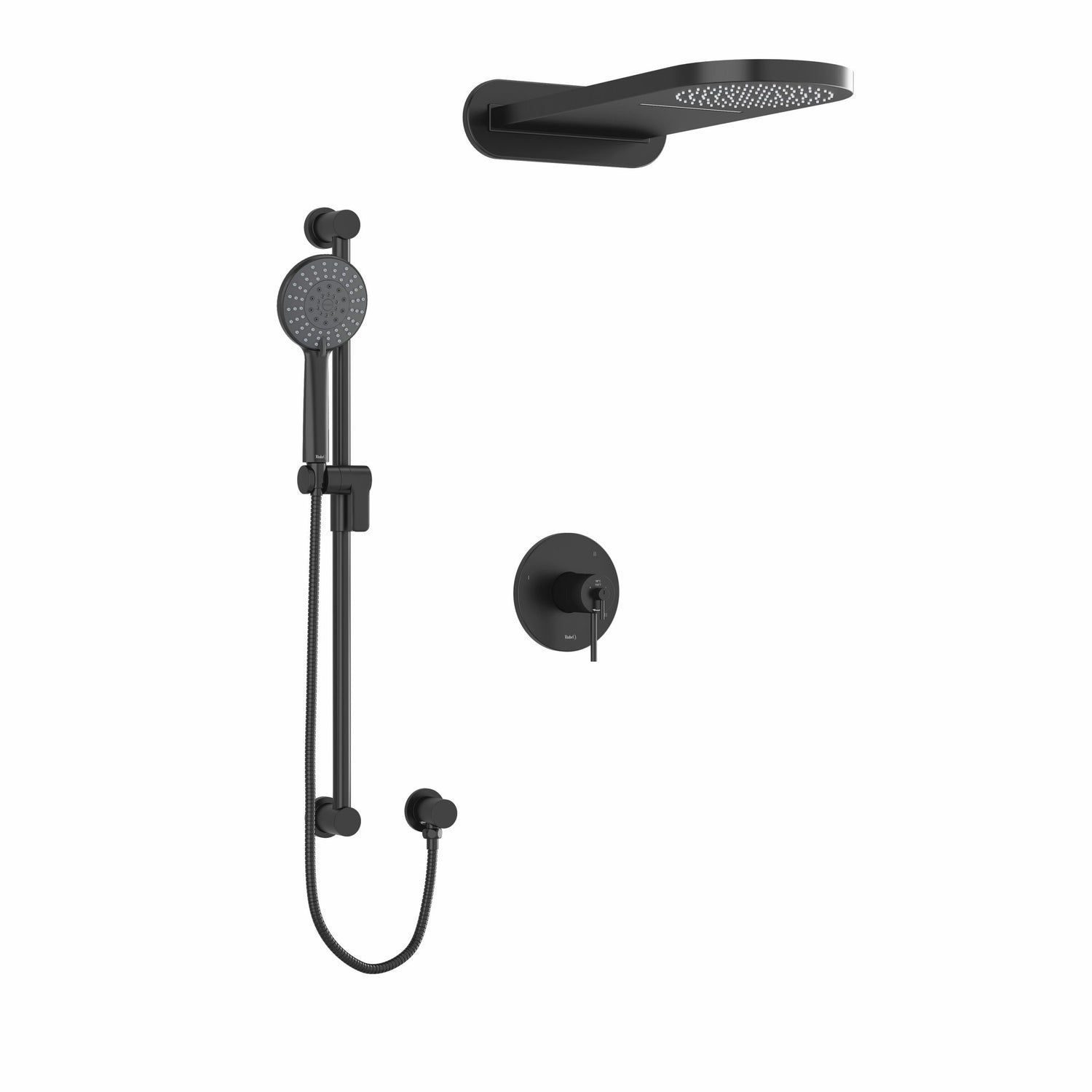

The Riobel GS KIT#2745GS is a Type T/P (thermostatic/pressure balance) ½" coaxial 3-way shower system with hand shower rail and rain and cascade shower head, offered in Chrome and Black. In Chrome (KIT2745GSC), the kit is made up of the TGS45C 3-way Type T/P coaxial valve trim, the R45 3-way Type T/P coaxial valve rough, the 5063C hand shower rail, the 406C rain and cascade shower head and the 775C elbow supply.

Features

• TGS45C valve trim (Chrome kit): thermostatic/pressure balance coaxial cartridge with check valves and 6 shared positions (OFF, 1, 1 and 2, 2, 2 and 3, 3)
• TGS45C valve trim flow (Chrome kit): 23 L/min, 6.0 gpm (US) at 60psi
• R45 valve rough (Chrome kit): ½" inlet male NPT or sweat, three ½" outlets male NPT or sweat, service valves and test cap
• 5063C hand shower rail (Chrome kit): 4363 3-jet hand shower with pause, Ø22 mm (7/8") slide bar, Easy-Glide left cursor and 150 cm (59") double interlock flexible hose, swivel and 2 check valves; scale-free
• 406C rain and cascade shower head (Chrome kit): scale-free, two ½" female NPT inlets, special rough included
• 775C elbow supply (Chrome kit): adjustable depth, ½" male outlet and ½" female NPT inlet

Specifications

• Model: KIT#2745GS
• Available finishes: Chrome, Black
• Certifications (Chrome kit): CSA B125.1, ASME A112.18.1, ASSE 1016, CMR248 Approval
• Warranty: Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts against all manufacturing defects, from the initial purchase date; all other finishes, including plastic components, are guaranteed for one year
• Note: Sizes, models and finishes may differ from those presented
