Riser With Diverter, Hose And Sliding Handshower Holder 1560pn

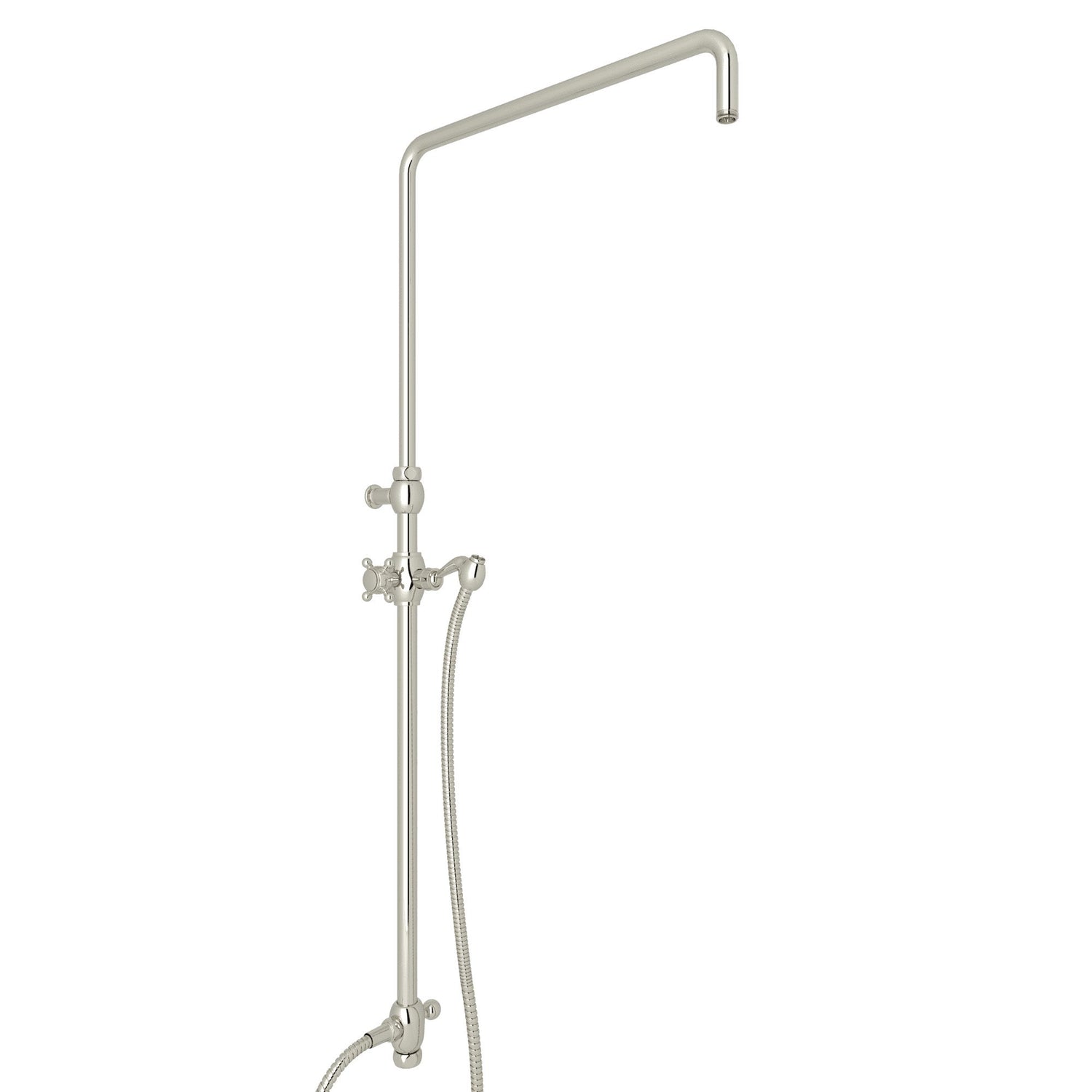

The ROHL 1560PN riser with diverter, hose and sliding handshower holder is an exposed shower riser that brings together a diverter, a hose and a sliding handshower holder in one wall-mounted assembly, finished in polished nickel. It is for use with exposed therm valves and has a spring diverter for handshower or showerhead selection, a 17” reach and adjustable height, with an upper riser that can recess into the lower riser and swivel. The showerhead and handshower must be ordered separately.

Features

• Spring diverter for handshower or showerhead selection
• Includes sliding parking bracket and hose for handshower
• Adjustable height; upper riser can recess into lower riser and swivel
• Adjustable wall stanchion 2 3/8” - 2 15/16”
• 3/4” NPSM inlet and 1/2” NPSM outlet
• 17” reach
• Bottom portion of riser may be cut to fit with a pipe cutter up to maximum 7 7/8”
• Brass construction

Specifications

• Inlet: 3/4” NPSM
• Outlet: 1/2” NPSM
• Reach: 17”
• Wall stanchion adjustment: 2 3/8” - 2 15/16”
• Finish: Polished Nickel
• Material: Brass
• Style: Traditional
• Mounting: Wall
• Standard: ASME A112.18.1
• Warranty: 2-Year Limited Warranty
• Country of origin: Italy
