TKIT1345

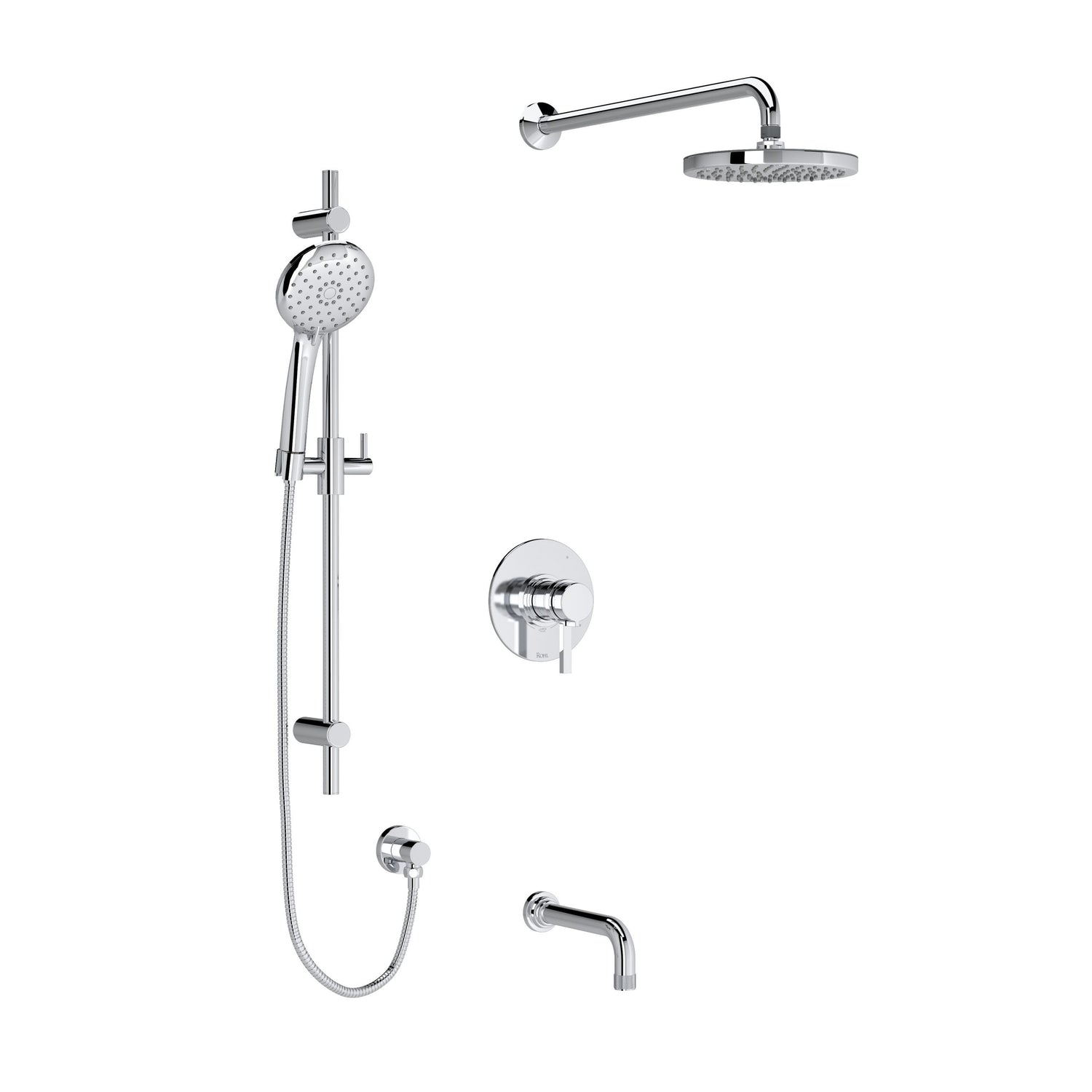

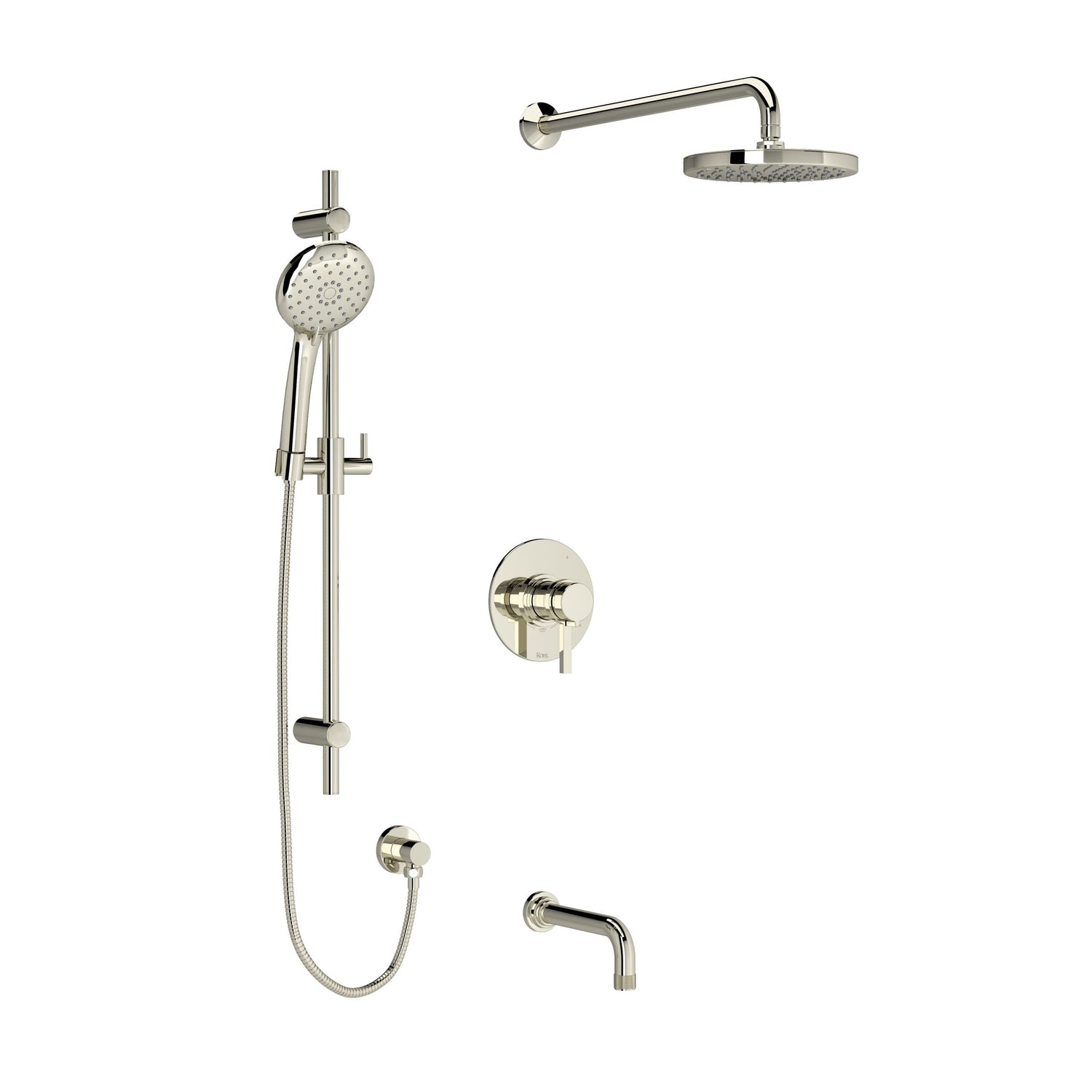

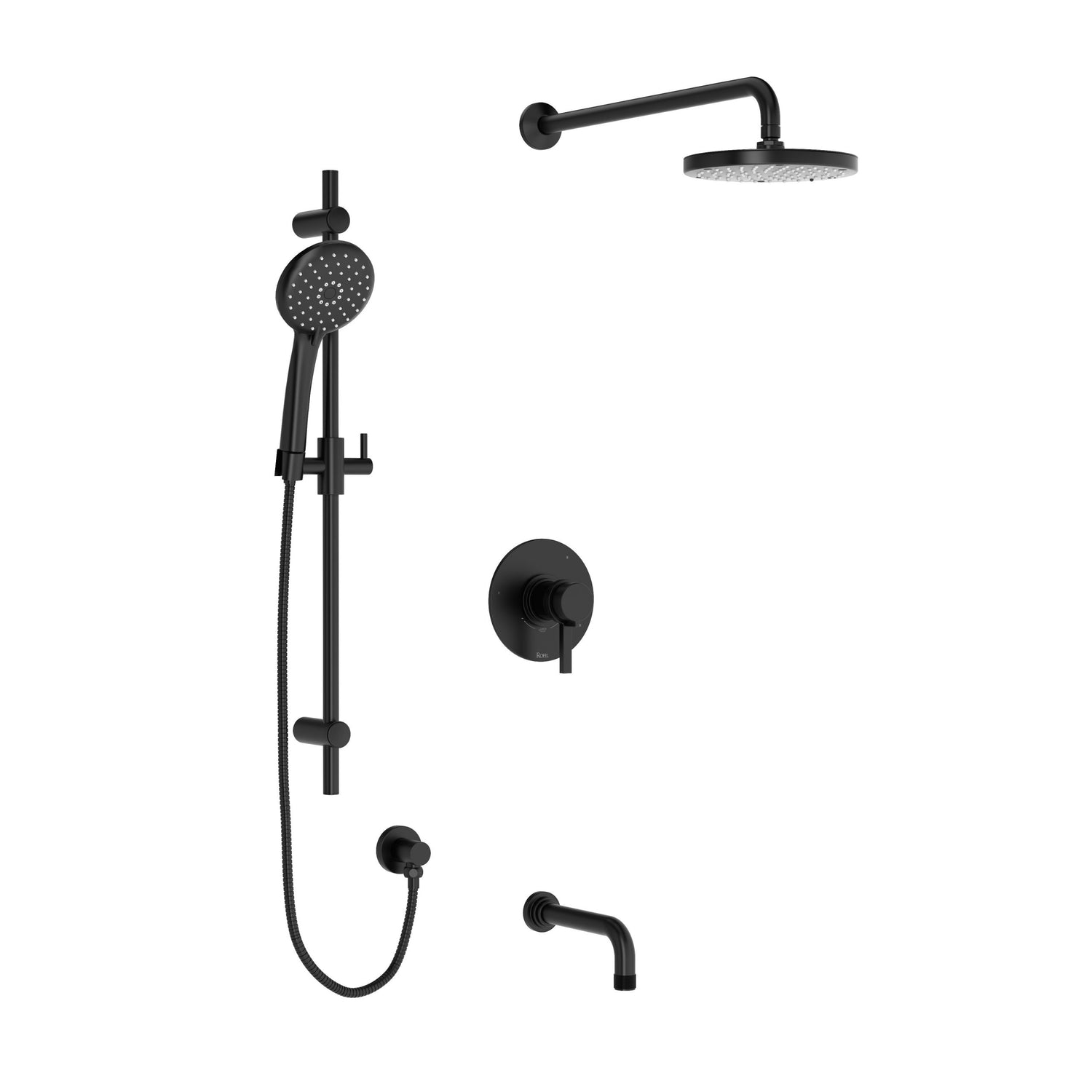

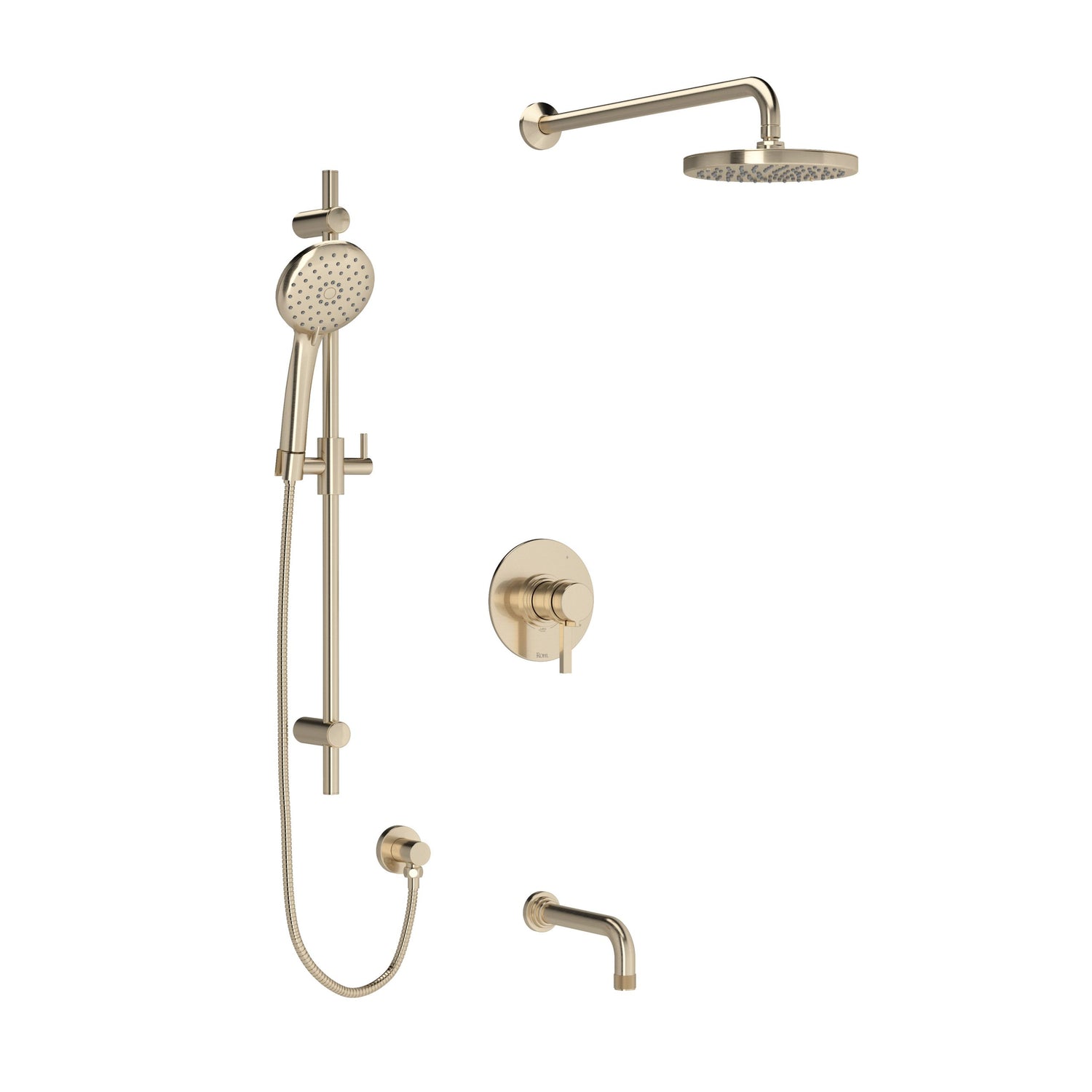

The ROHL Lombardia Shower Kit 1345 Trim is a thermostatic and pressure balance shower trim kit built around the Lombardia 1/2” Therm & Pressure Balance Trim with 5 Functions (Shared). The kit pairs the trim with a modern slide bar, a 3-function 5” handshower, an Oki round rain showerhead, a 20” wall mounted shower arm, a handshower wall outlet, a metal shower hose assembly and the A2203IW wall mount tub spout. The trim combines both thermostatic and pressure balance technologies; the R45 rough-in valve is sold separately.

Features

• Trim: “Set it and forget it” temperature control, plus temperature and volume control with diverter
• Trim: 3 dedicated functions and 2 shared functions
• 0-955 cartridge included
• Modern slide bar: brass construction, 29 5/8” length and a sliding handshower parking bracket; length may not be cut down
• Handshower: Rain, Rain/Massage and Massage spray patterns, 1.75 GPM at 60 PSI (CEC compliant)
• Showerhead: single-function rain, 7 7/8” diameter, ABS construction with flexible calcium resistant nozzles; flow rate 1.8 GPM, similar to a gentle rain, best installed pointing straight down
• Shower arm: 20”, solid brass construction with an adjustable ABS wall flange
• Metal shower hose: brass outer coil, double spiral, PVC lining, 59” length
• Tub spout: 1/2” female NPT inlet, minimum 7” reach, brass construction

Specifications

• Collection: Lombardia
• Kit model: TKIT1345LB
• Standards: CSA B125.1, ASME A112.18.1, ASSE 1016
• Rough-in valve: R45, sold separately
• Cartridge: 0-955 (included)
• Handshower flow rate: 1.75 GPM at 60 PSI
• Showerhead flow rate: 1.8 GPM
• Available finishes: Polished Chrome, Matte Black, Polished Nickel, Satin Nickel
