ROUGH FOR WALL MOUNT TUB FILLER (EXCEPT MOND)

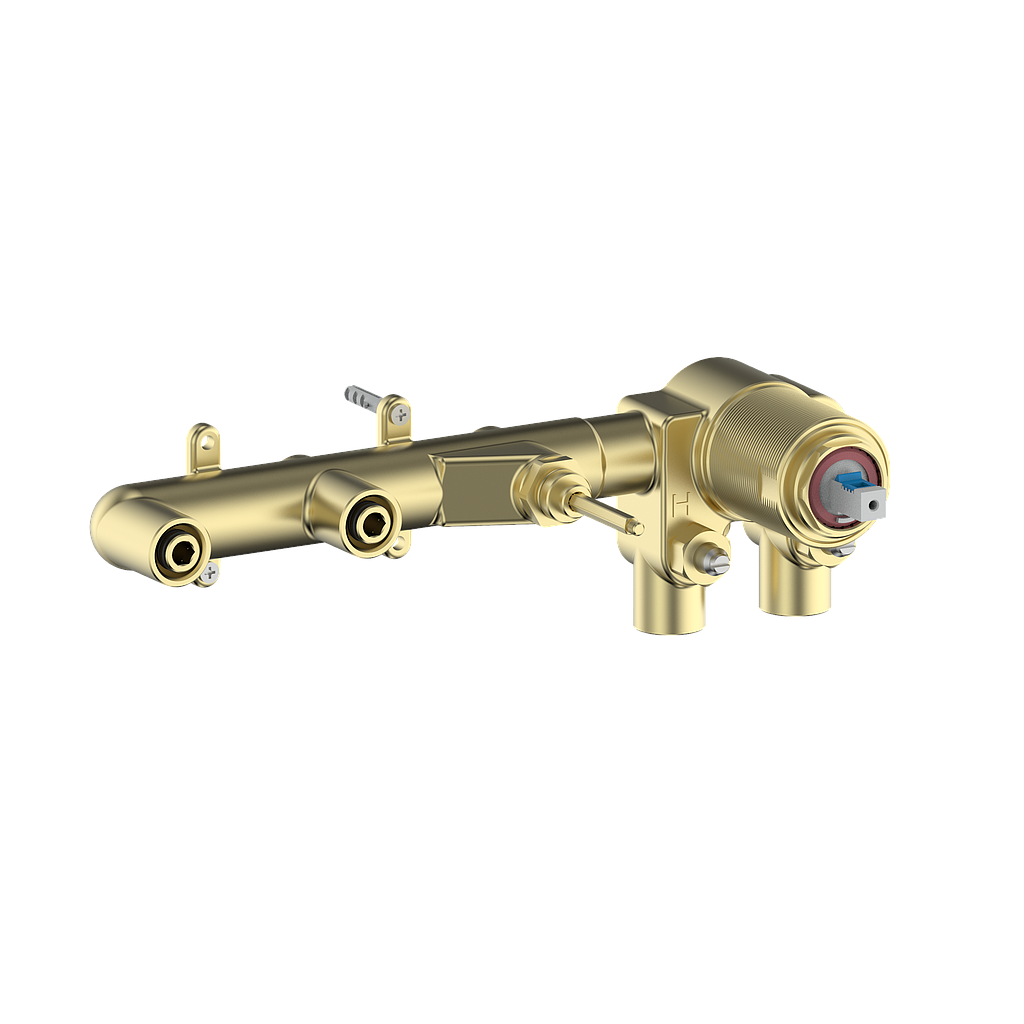

The Vogt VE.2200 is a rough-in for a wall mount tub filler with one handle, made with solid brass construction. This rough is for wall mount tub fillers except Mond. It has a full brass face plate, a 1/2" female NPT connection and ceramic disk and diverter cartridges.

Features

• CE.1440.PB ceramic disk cartridge.
• CE.1922.DR ceramic diverter cartridge.
• Full brass face plate.
• Hand shower flow rate of 1.9 gpm at 60 psi.
• Tub spout flow rate of 5.8 gpm (22 lpm) at 60 psi.
• Solid brass construction with a 1/2" female NPT connection.
• Limited lifetime warranty against all manufacturing defects to the original consumer purchaser (see full warranty for more details).

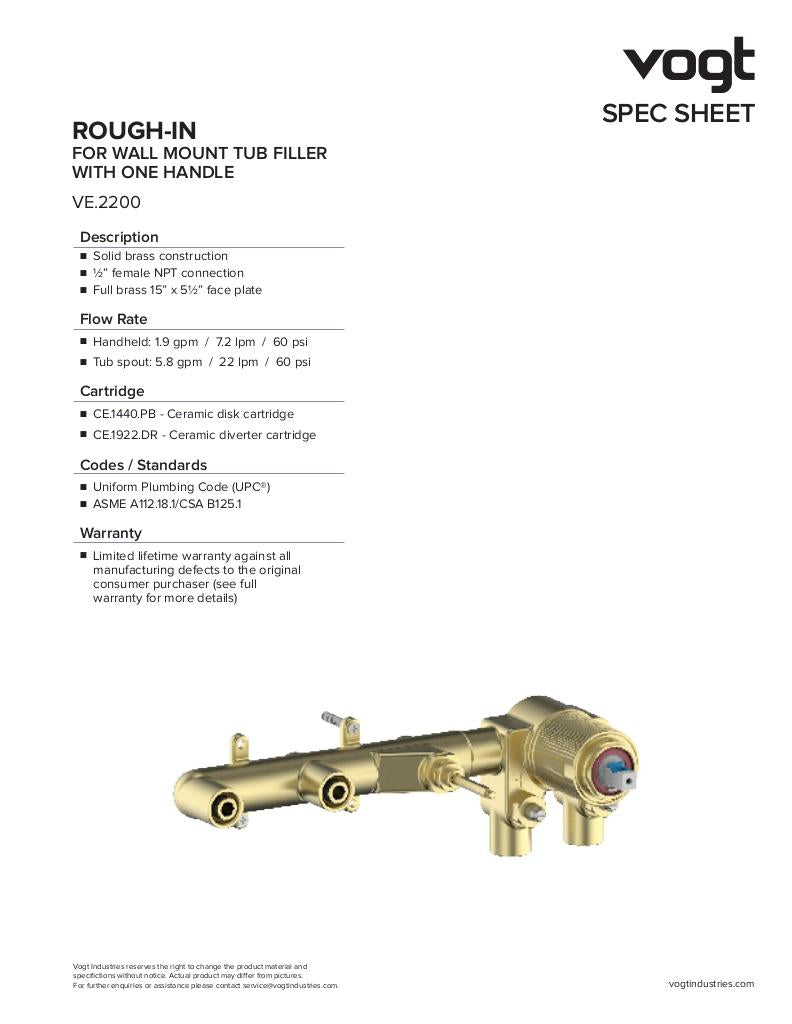

Specifications

• Type: Rough-in for wall mount tub filler with one handle
• Construction: Solid brass
• Connection: 1/2" female NPT
• Cartridges: CE.1440.PB ceramic disk cartridge; CE.1922.DR ceramic diverter cartridge
• Handheld flow rate: 1.9 gpm at 60 psi
• Tub spout flow rate: 5.8 gpm | 22 lpm | 60 psi
• Codes / standards: Uniform Plumbing Code (UPC), ASME A112.18.1/CSA B125.1, ASSE 1016
• Warranty: Limited lifetime warranty against all manufacturing defects to the original consumer purchaser (see full warranty for more details)
