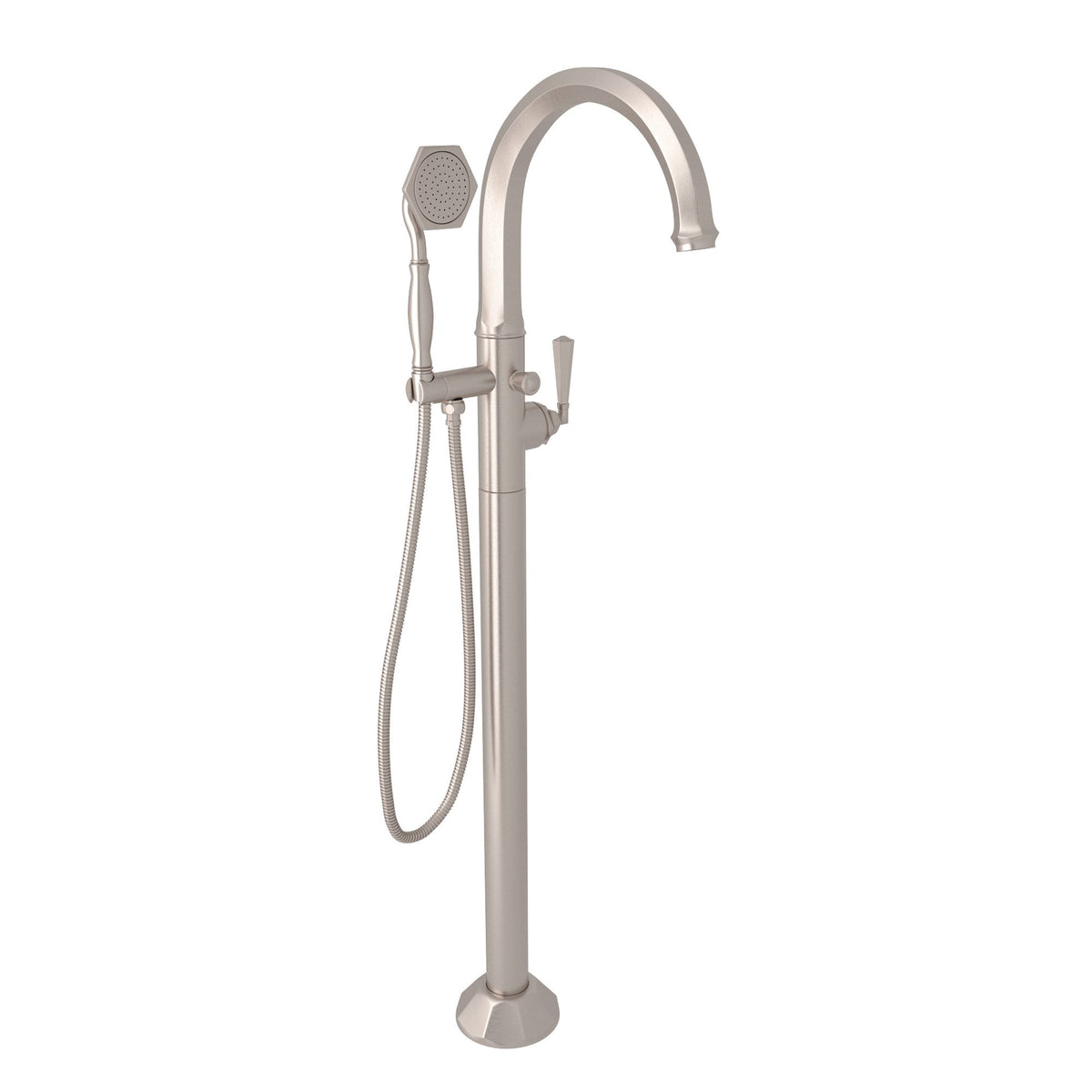

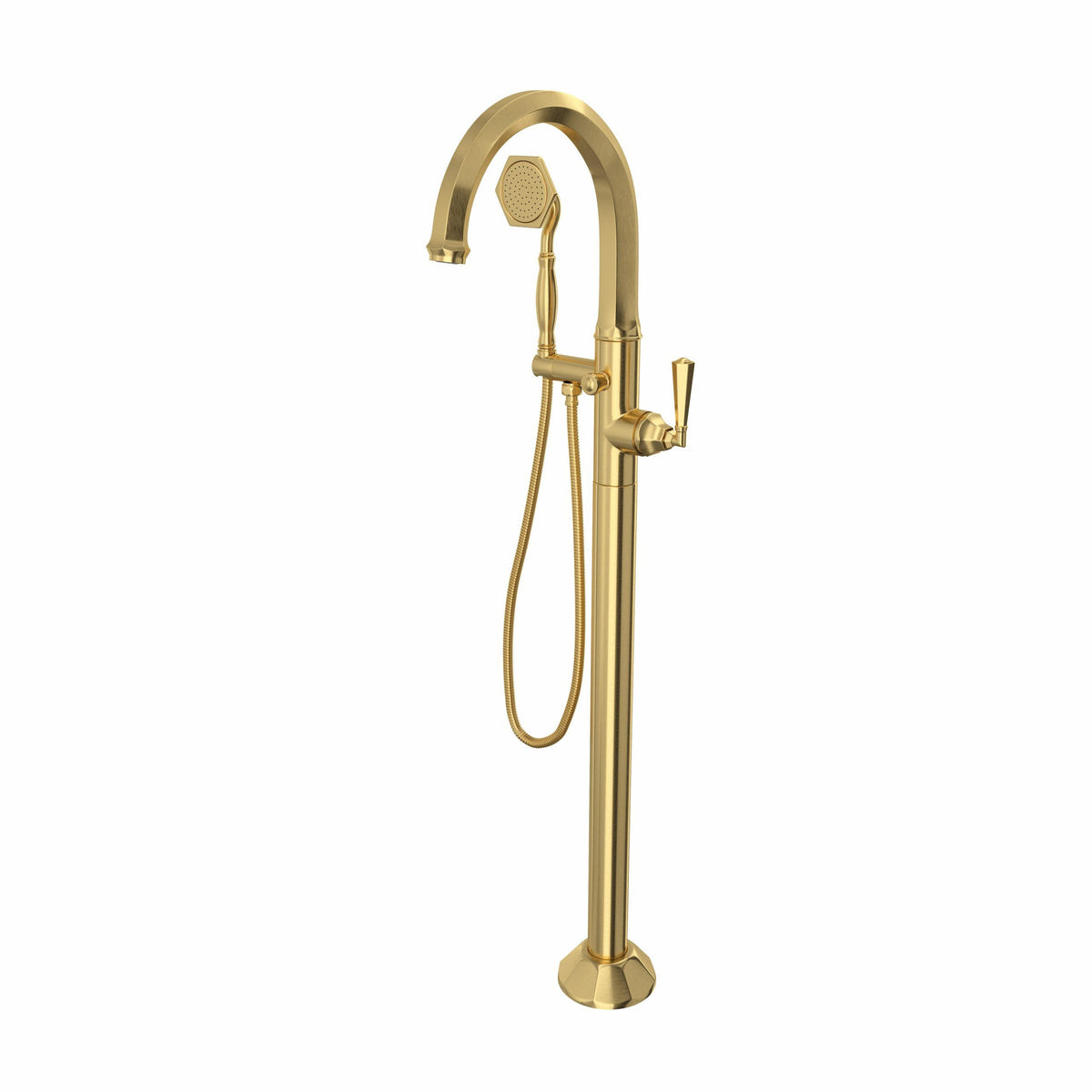

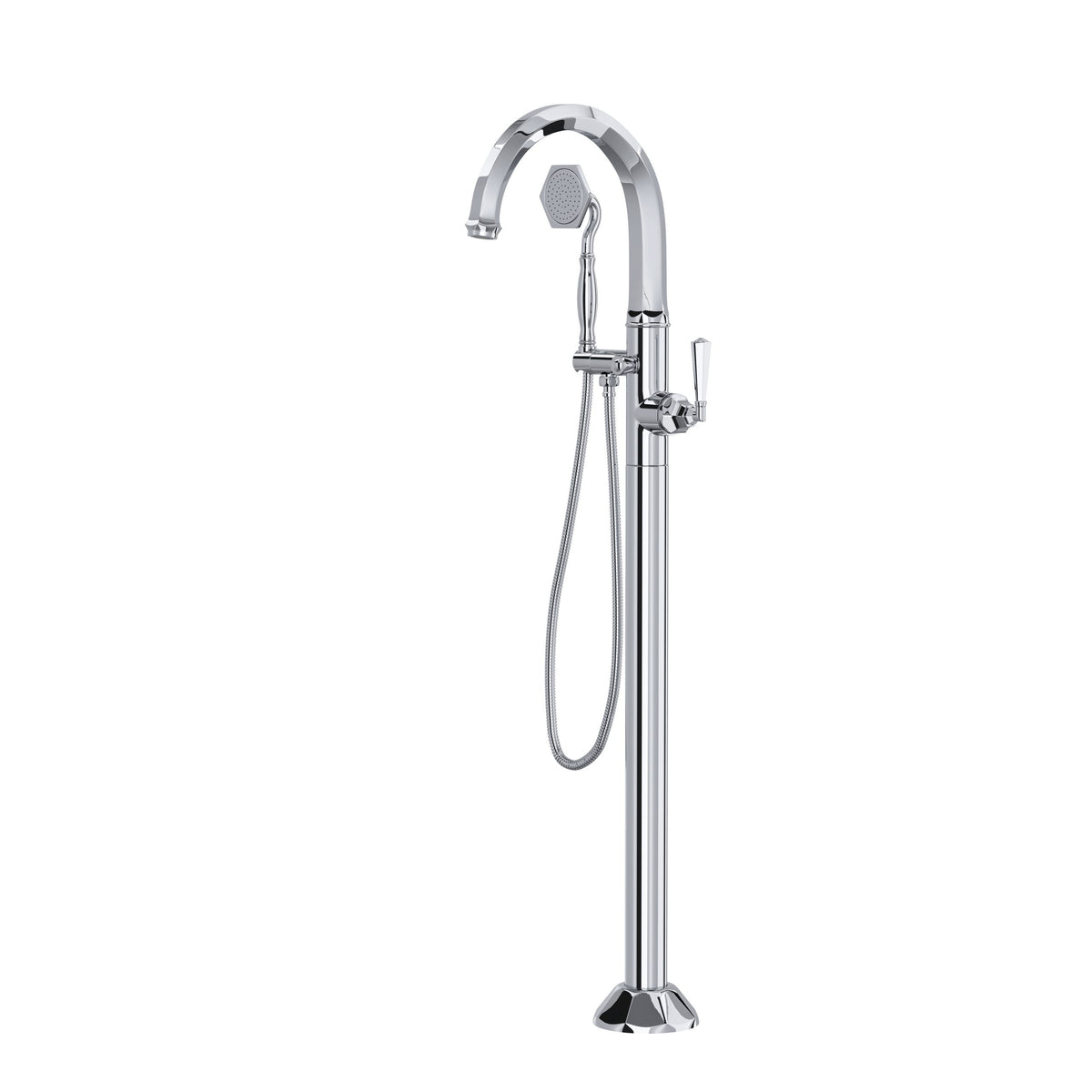

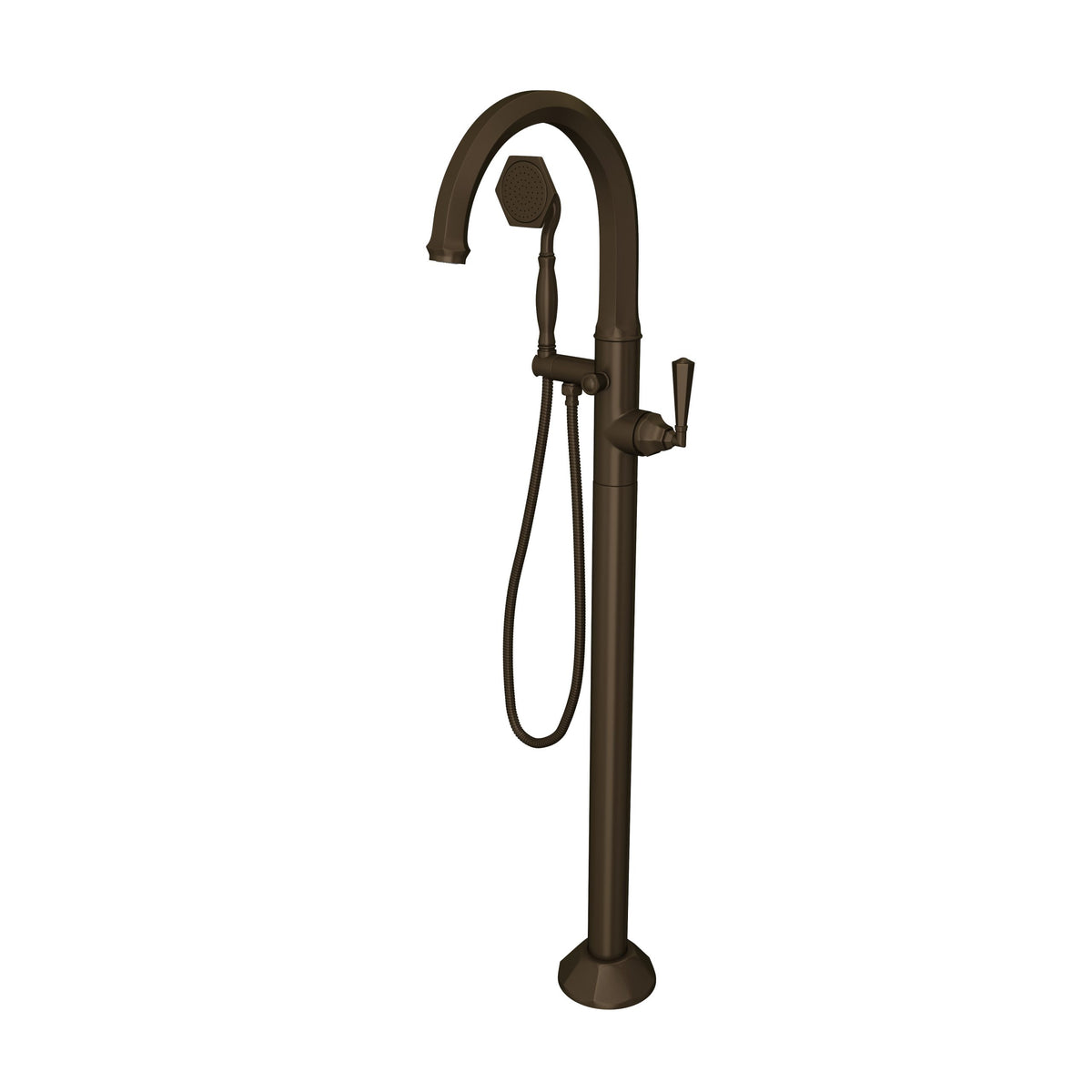

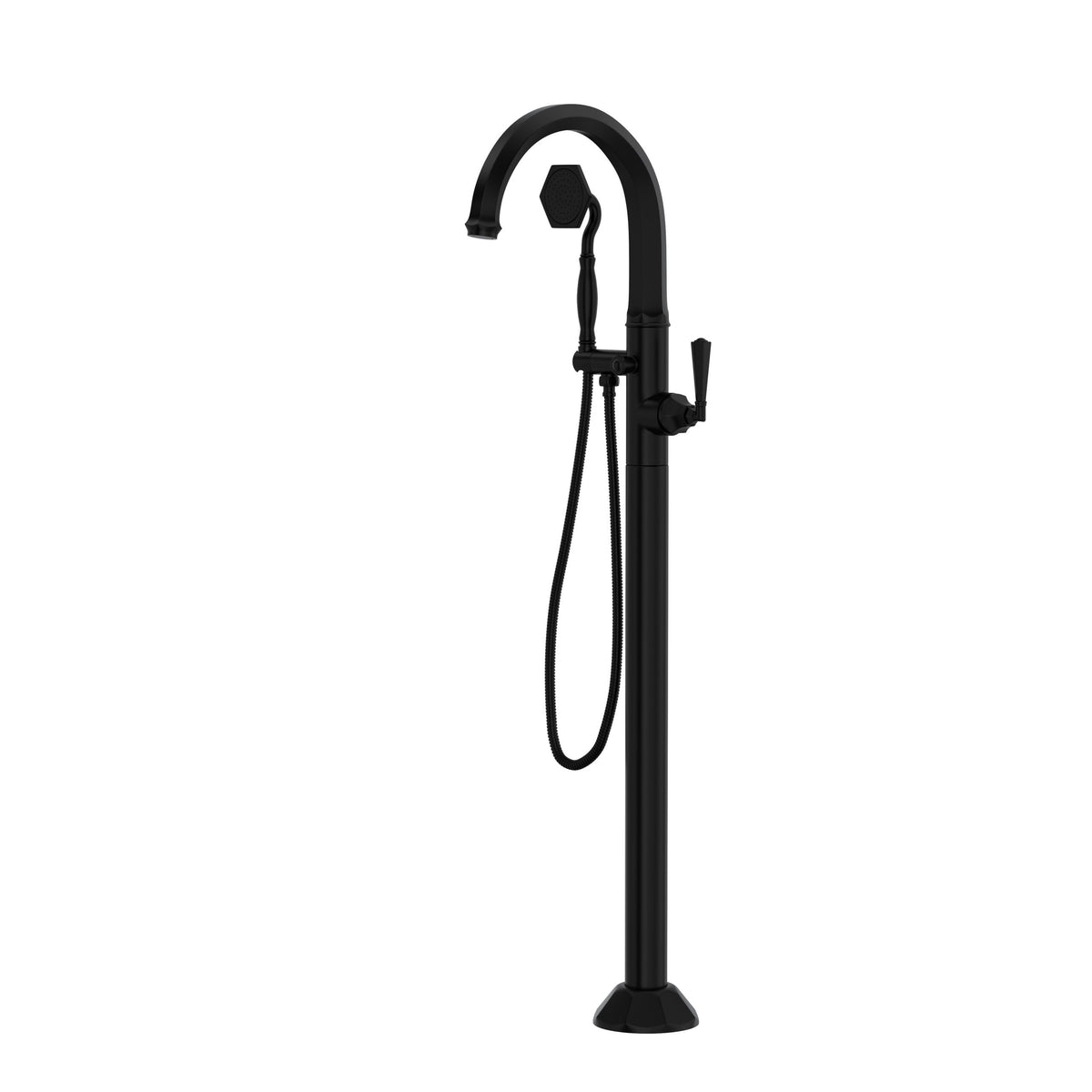

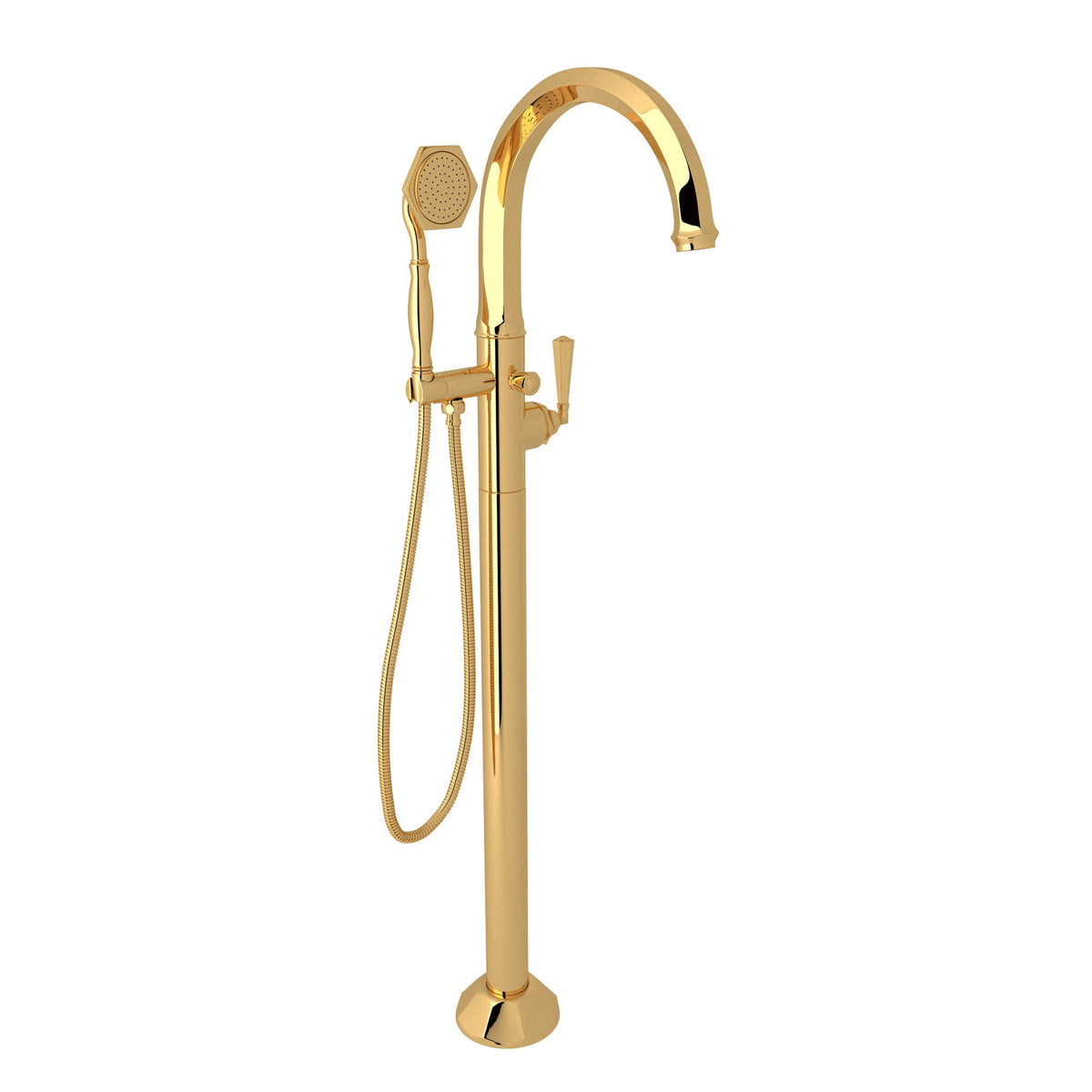

Palladian® Single Hole Floor-mount Tub Filler Trim

The ROHL Palladian single hole floor-mount tub filler trim pairs a C-spout with a 1 jet anti-calcium hand shower. It flows at 12 GPM (45.4 L/min) at 60 PSI (CEC compliant), and the hand shower delivers 1.8 GPM at 60 PSI. The rough is sold separately (order RH0506F1) and must be recessed under the finished floor during installation.

Features

• Floor-mount, single-hole installation
• C-spout design
• 1 jet anti-calcium hand shower
• 1/2" female NPT inlet
• A remote thermostatic valve may be needed; verify local code requirements
• Brass construction
• Meets ASME A112.18.1/CSA B125.1

Specifications

• Product type: Floor-mount tub filler trim
• Collection: Palladian
• Hole configuration: 1
• Spout: C-Spout
• Flow rate: 12 GPM (45.4 L/min) at 60 PSI (CEC compliant)
• Hand shower: 1 jet, 1.8 GPM at 60 PSI
• Inlet: 1/2" female NPT
• Standards: ASME A112.18.1/CSA B125.1
• Material: Brass
• Style: Transitional
• Rough: RH0506F1 (sold separately)
• Available finishes: Polished Chrome, Italian Brass, Matte Black, Polished Nickel, Satin Nickel, Satin Unlacquered Brass, Tuscan Brass
• Warranty (Polished Chrome, TPN06HF1LMAPC): Limited Lifetime Warranty
• Country of origin (Polished Chrome, TPN06HF1LMAPC): China
