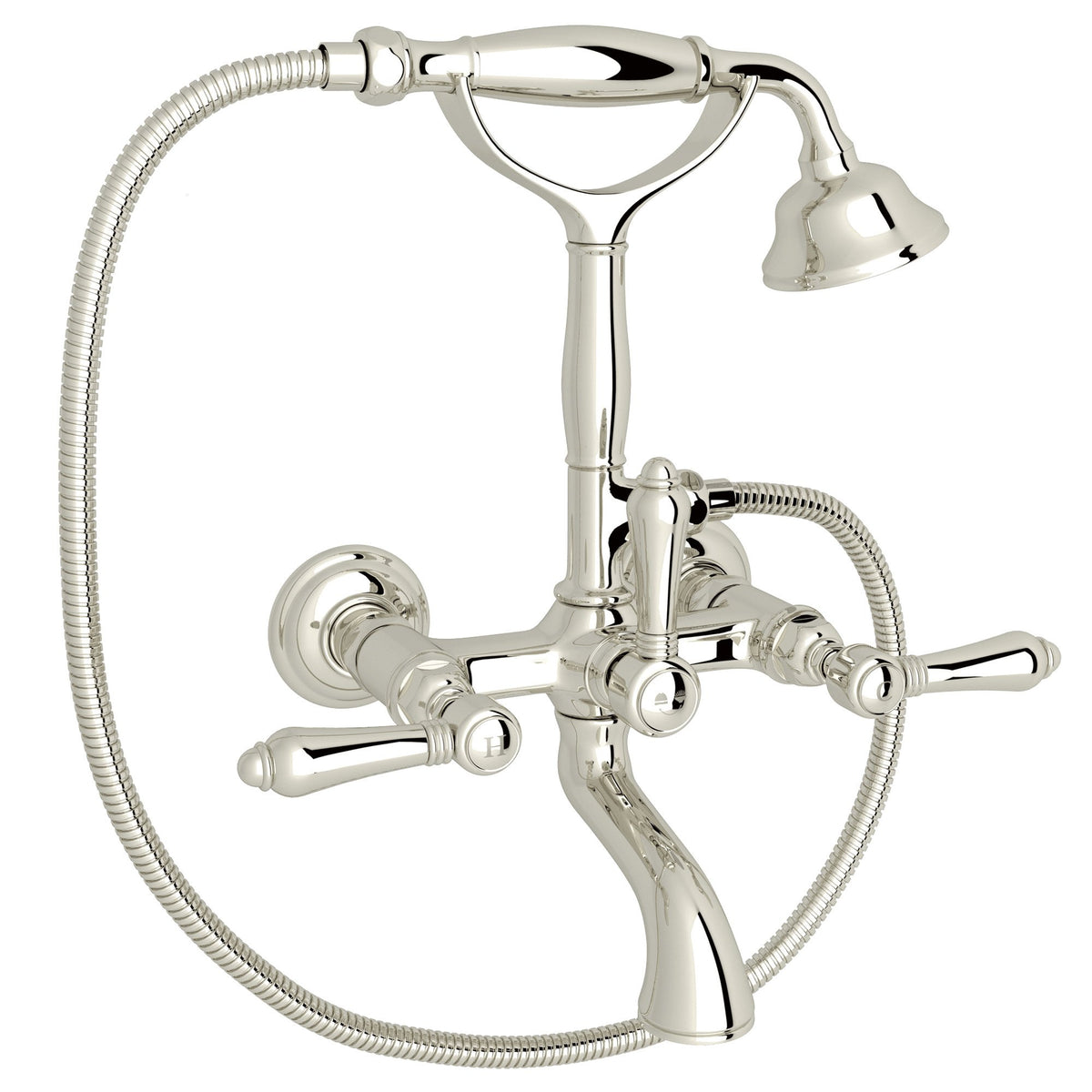

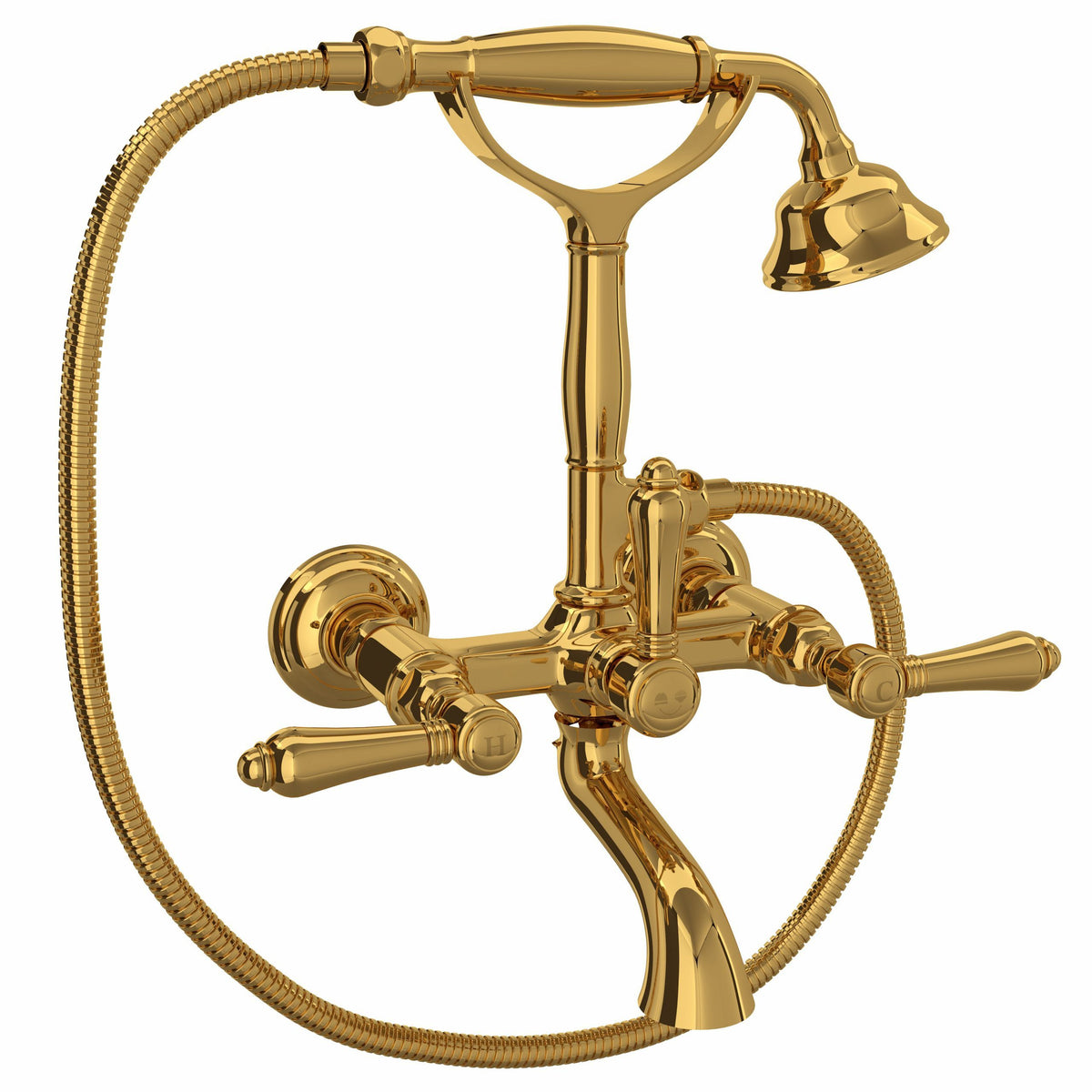

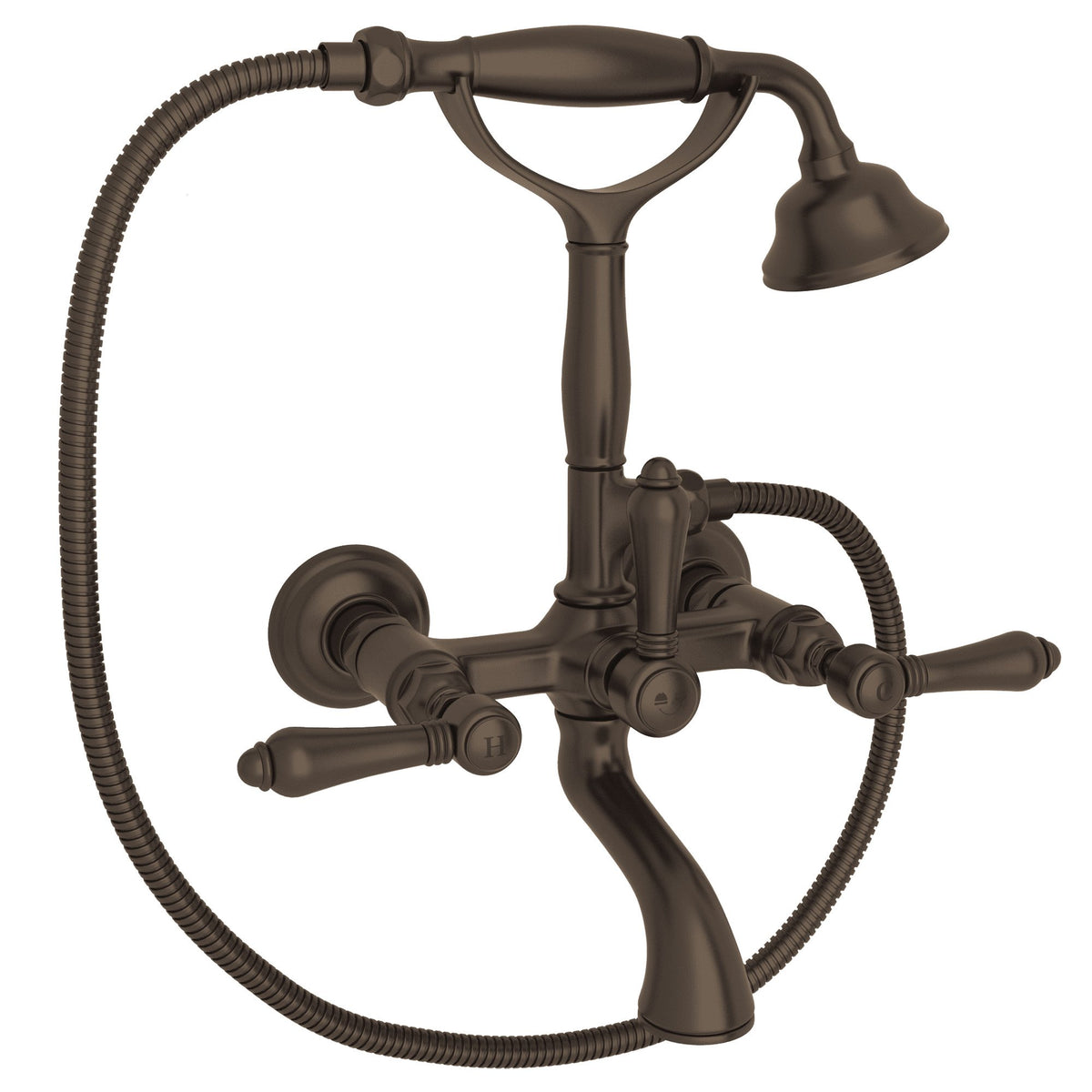

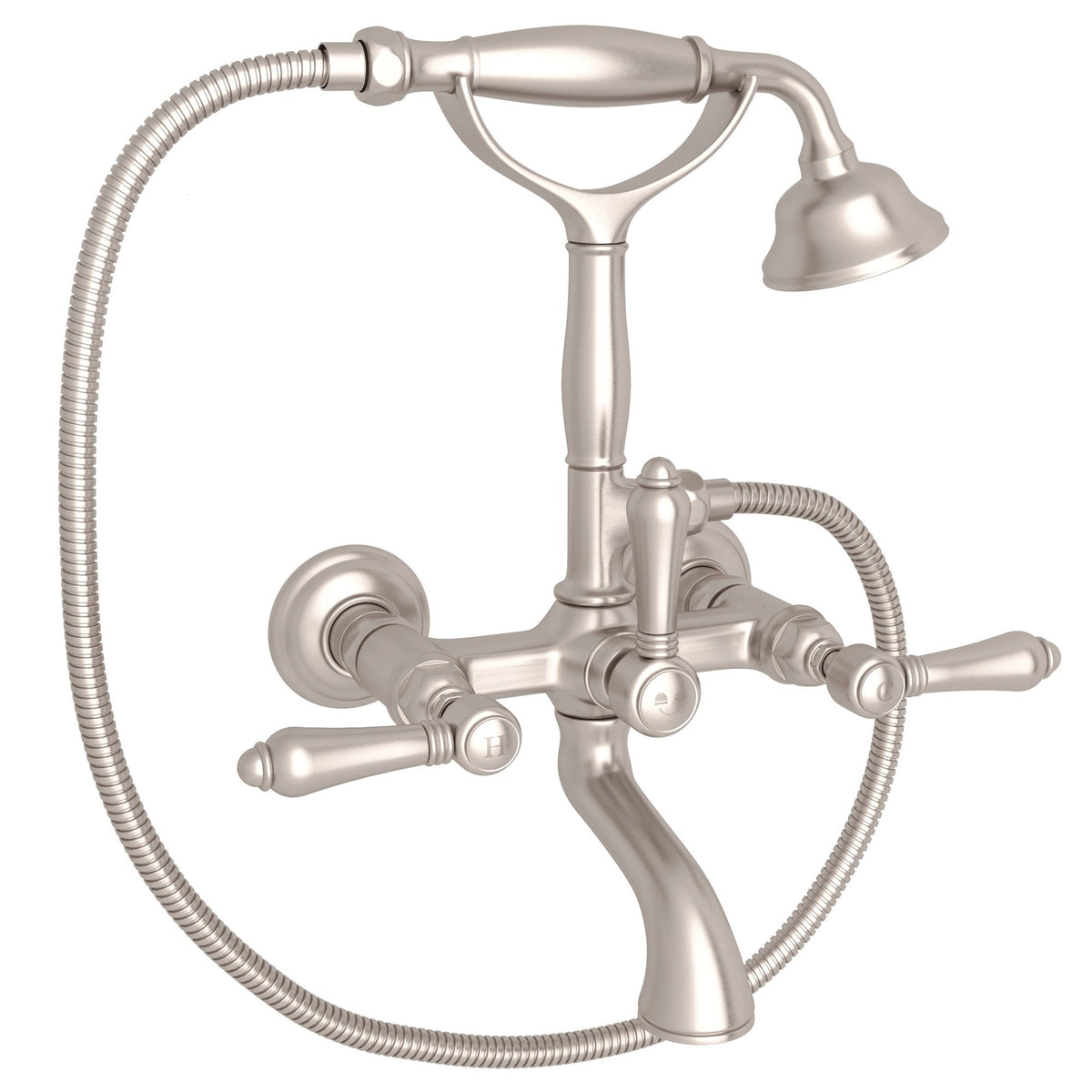

Exposed Wall Mount Tub Filler A1401lm

The ROHL Exposed Wall Mount Tub Filler A1401LM is a wall-mounted tub filler with metal lever handles, a single-function anti-calcium handshower and a low spout. It connects through a 1/2" female NPT inlet and needs no additional rough-in valve to install. Choose from Polished Chrome, Italian Brass, Polished Nickel, Satin Nickel, Tuscan Brass or Unlacquered Brass.

Features

• Wall-mounted, exposed installation with a 2-hole configuration
• Single-function spray
• Traditional style in brass
• Polished Chrome, Polished Nickel, Satin Nickel and Tuscan Brass versions: two-handle tub filler with cradle and a single-function brass handshower with metal insert
• Polished Chrome, Polished Nickel, Satin Nickel and Tuscan Brass versions: 39 3⁄8" length hose and 6 33⁄64" reach from wall to spout outlet
• Polished Chrome, Polished Nickel, Satin Nickel and Tuscan Brass versions: includes wall union C7205 1⁄2"F x 3⁄4"M
• Installation note: you may have to install an inline anti-scald device; check your local code requirements

Specifications

• Model: A1401LM (Metal Levers)
• Available finishes: Polished Chrome, Italian Brass, Polished Nickel, Satin Nickel, Tuscan Brass, Unlacquered Brass
• Installation type: Wall
• Hole configuration: 2
• Inlet: 1/2" female NPT
• Standards: ASME A112.18.1/CSA B125.1
• Center to center (Polished Chrome, Polished Nickel, Satin Nickel and Tuscan Brass versions): 5 29⁄32" ± 5⁄16"
