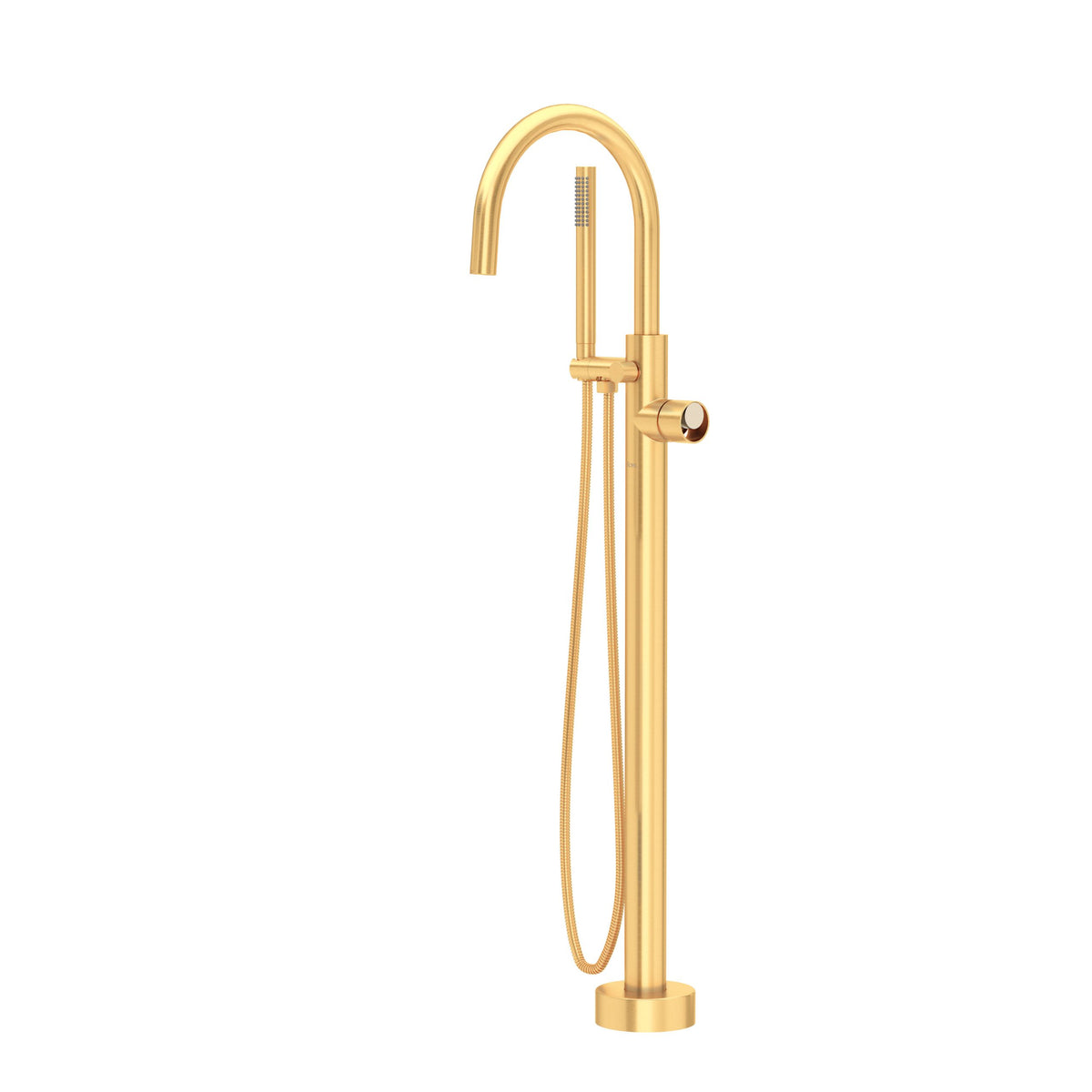

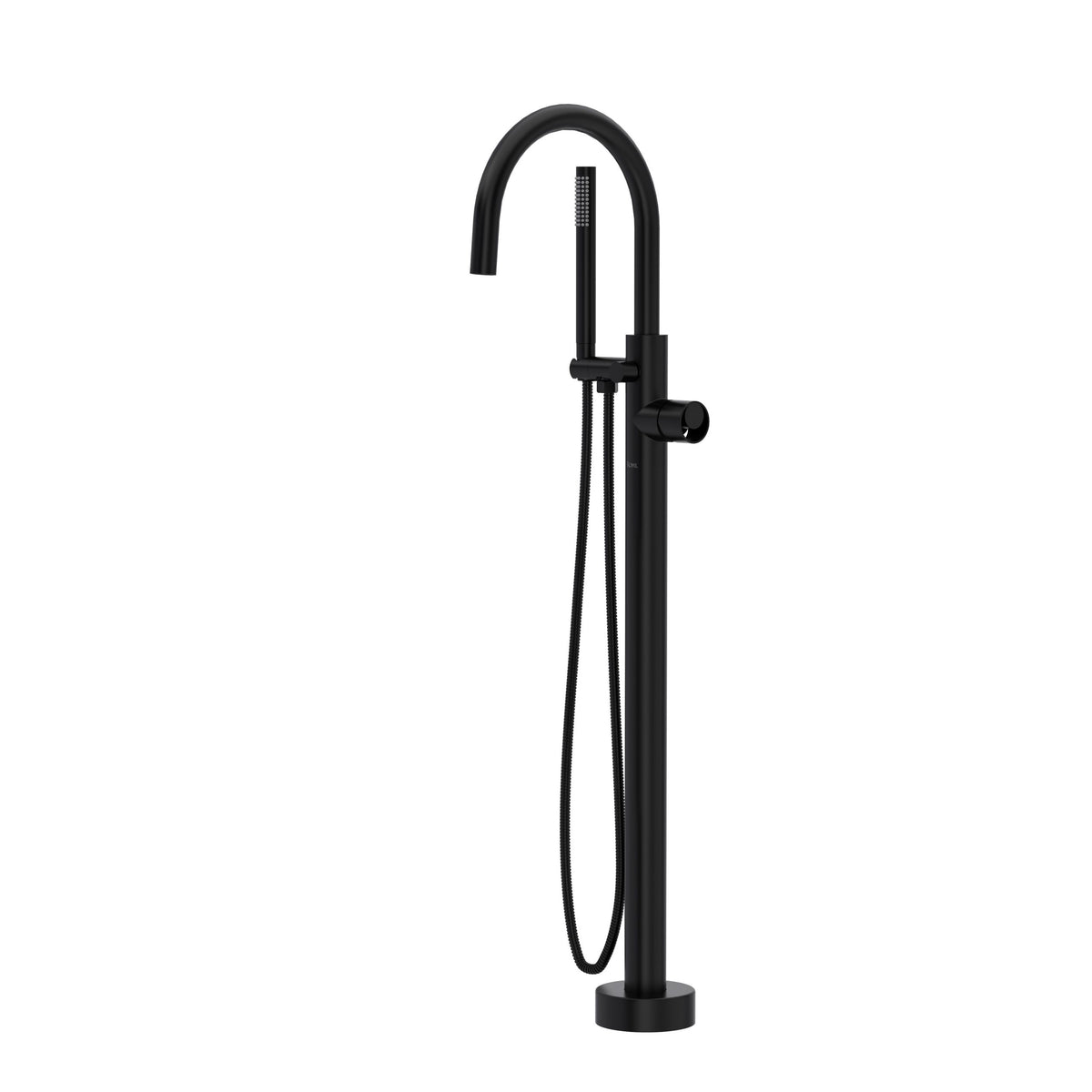

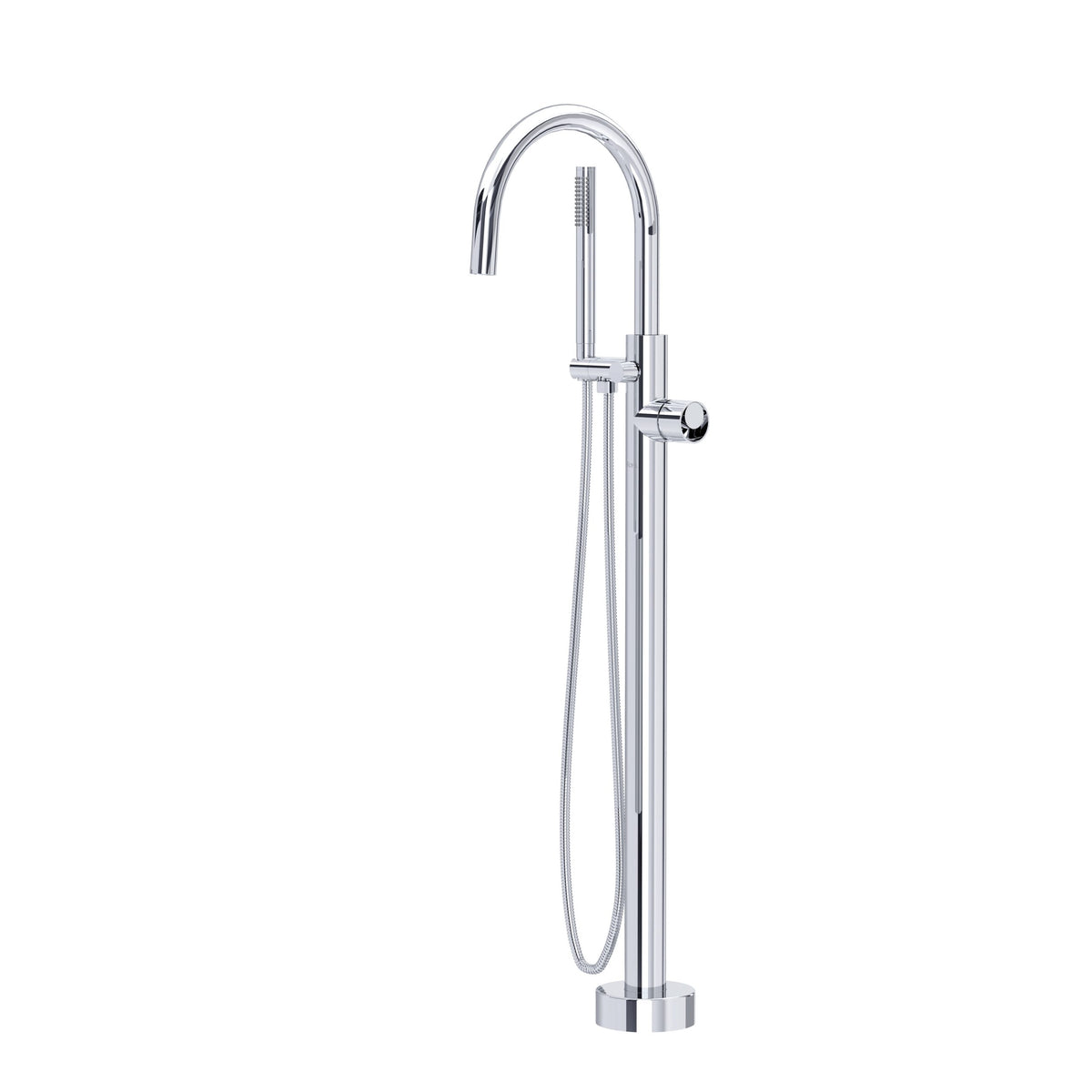

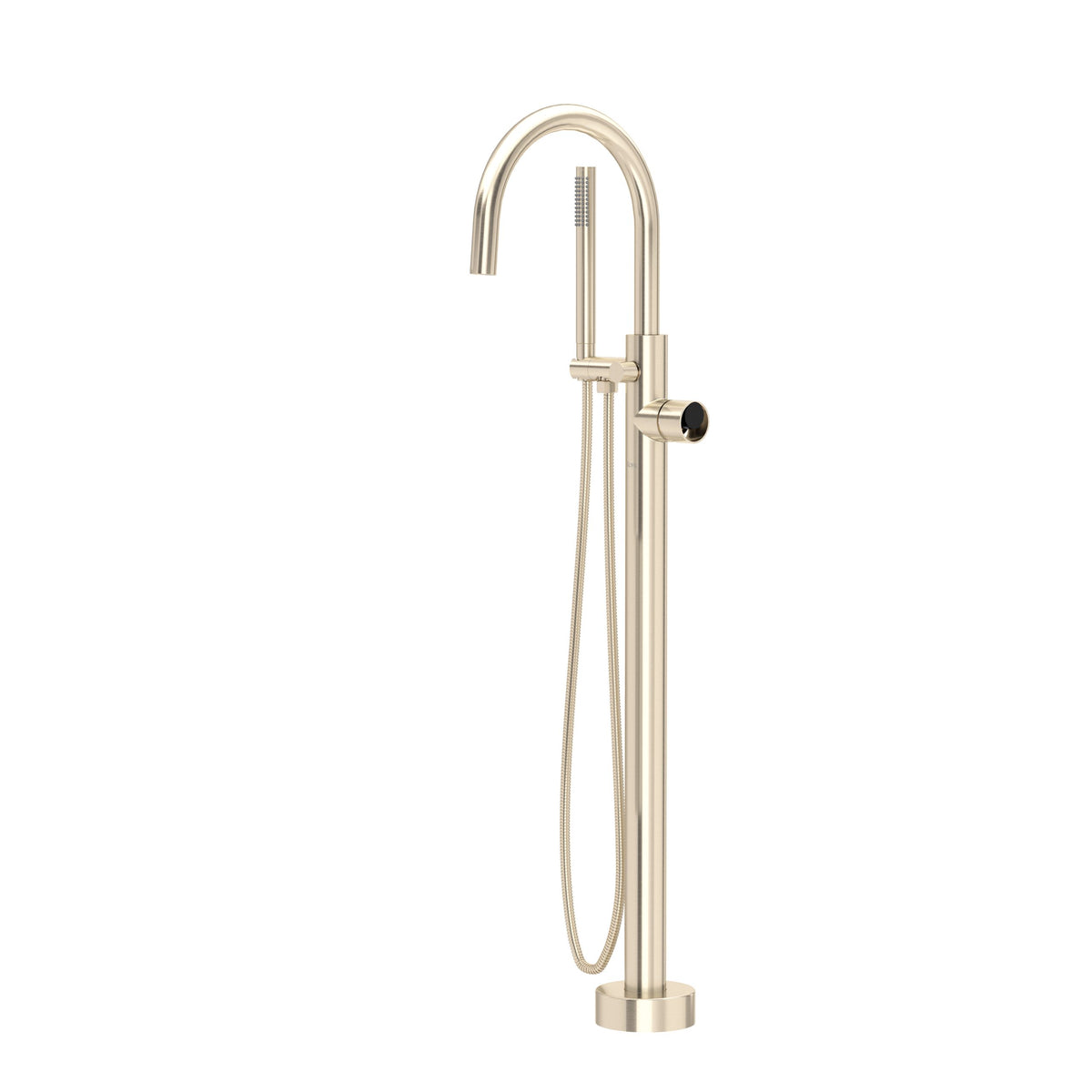

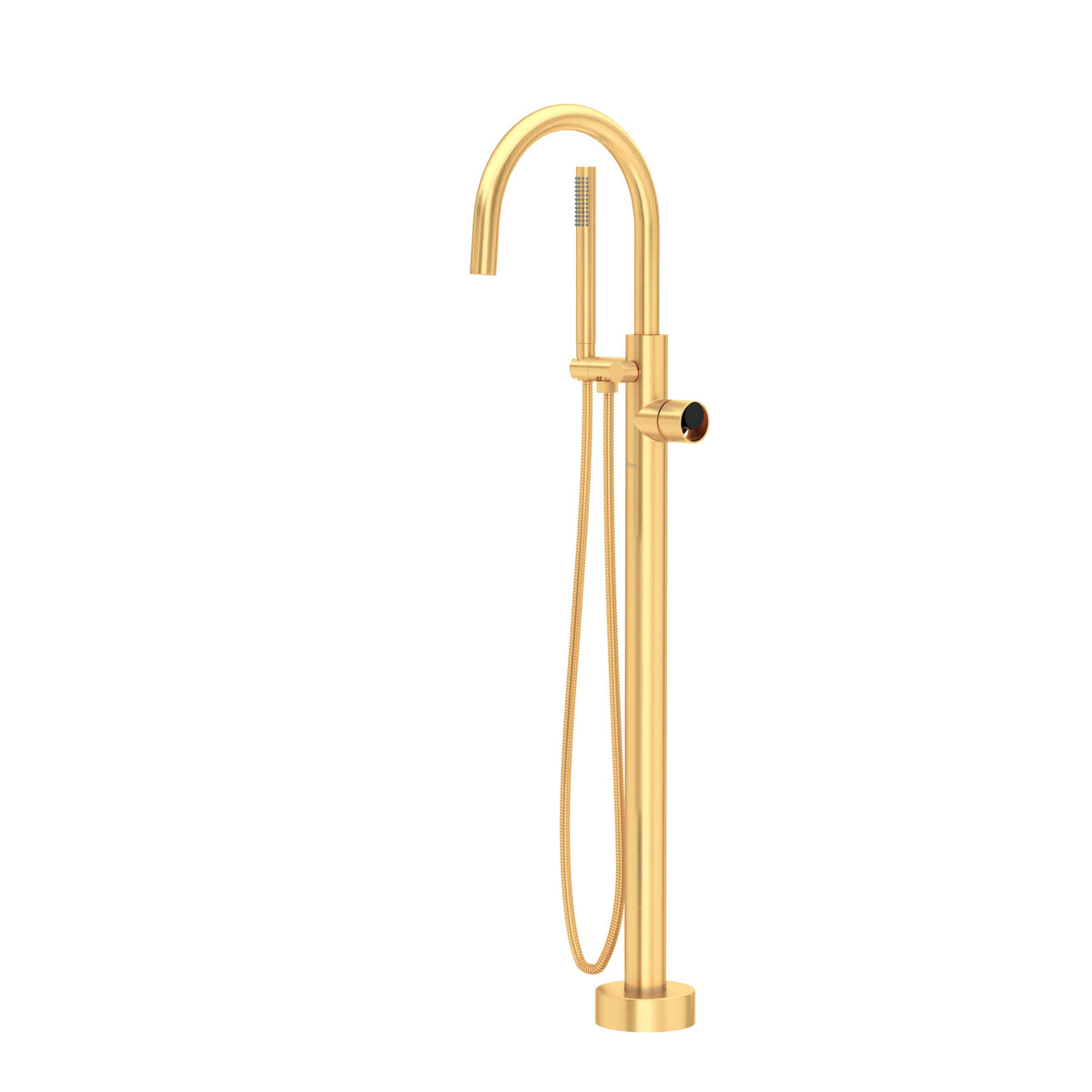

Eclissi™ Single Hole Floor-mount Tub Filler Trim With C-Spout

The ROHL Eclissi™ Single Hole Floor Mount Tub Filler Trim with C-Spout is a floor-mounted C-spout tub filler with a 1-jet anti-calcium hand shower. The tub filler flows 12 GPM (45.4 L/min) at 60 PSI (CEC compliant), and the hand shower flows 1.8 GPM at 60 PSI. This listing is the trim; the RH0506F1 rough is sold separately.

Features

• 1/2" female NPT inlet
• Installation note: the rough must be recessed under the finished floor
• A remote thermostatic valve may be needed; verify local code requirements
• Single spray type
• Brass construction
• Transitional style

Specifications

• Collection: Eclissi
• Model: TEC06HF1IW Series
• Product type: Tub filler trim
• Mounting: Floor
• Spout shape: C-Spout
• Flow rate: 12 GPM (45.4 L/min) at 60 PSI
• Hand shower: 1 jet, anti-calcium, 1.8 GPM at 60 PSI
• Inlet: 1/2" female NPT
• Standards: ASME A112.18.1/CSA B125.1
• Material: Brass
• Rough (sold separately): RH0506F1
• Warranty (Satin Nickel, TEC06HF1IWSTN): Limited Lifetime Warranty
• Available finishes: Satin Nickel, Polished Chrome, Matte Black, Matte Black/Polished Chrome, Matte Black/Satin Gold, Matte Black/Satin Nickel, Polished Chrome/Matte Black, Polished Chrome/Satin Gold, Polished Chrome/Satin Nickel, Satin Nickel/Matte Black, Satin Nickel/Polished Chrome, Satin Nickel/Satin Gold
