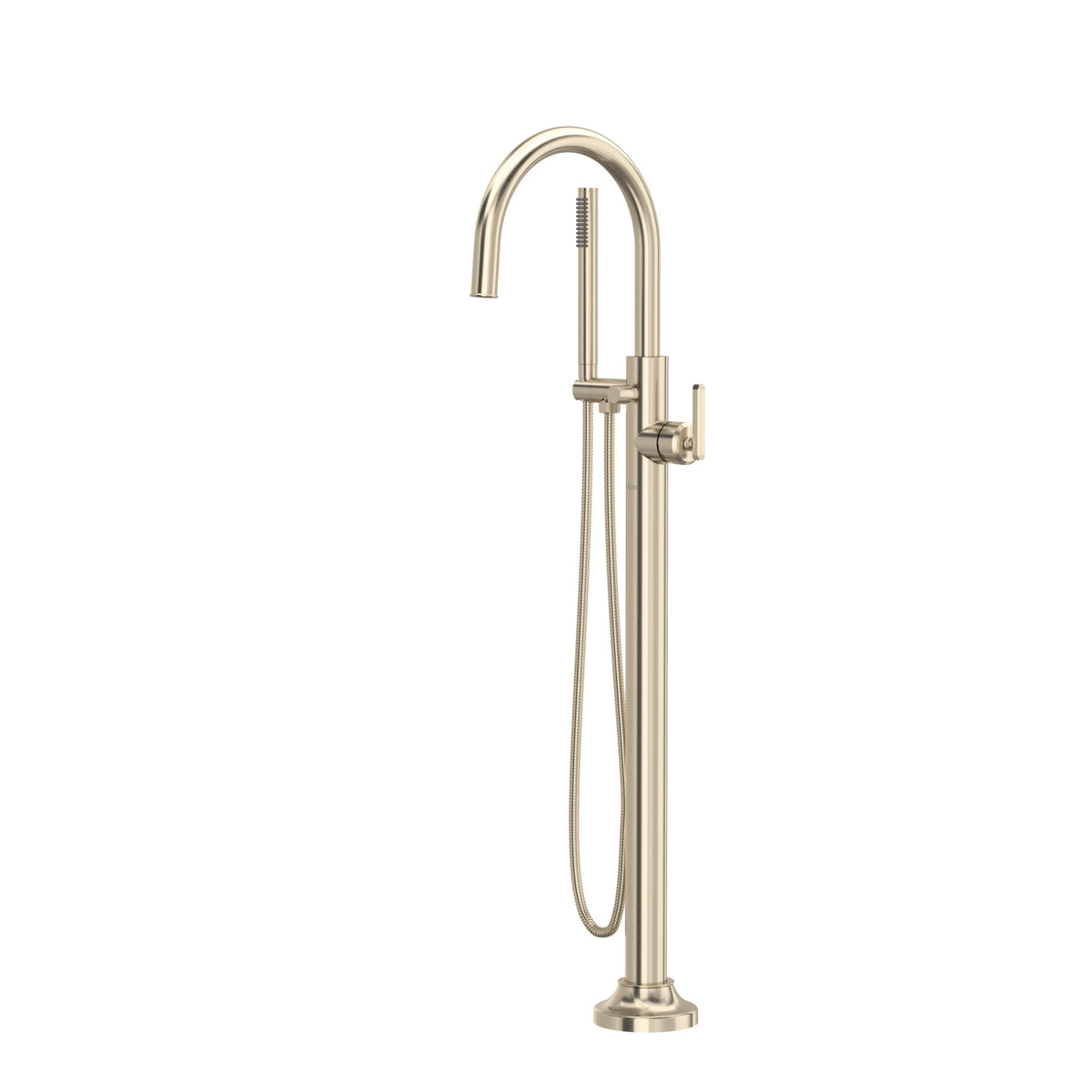

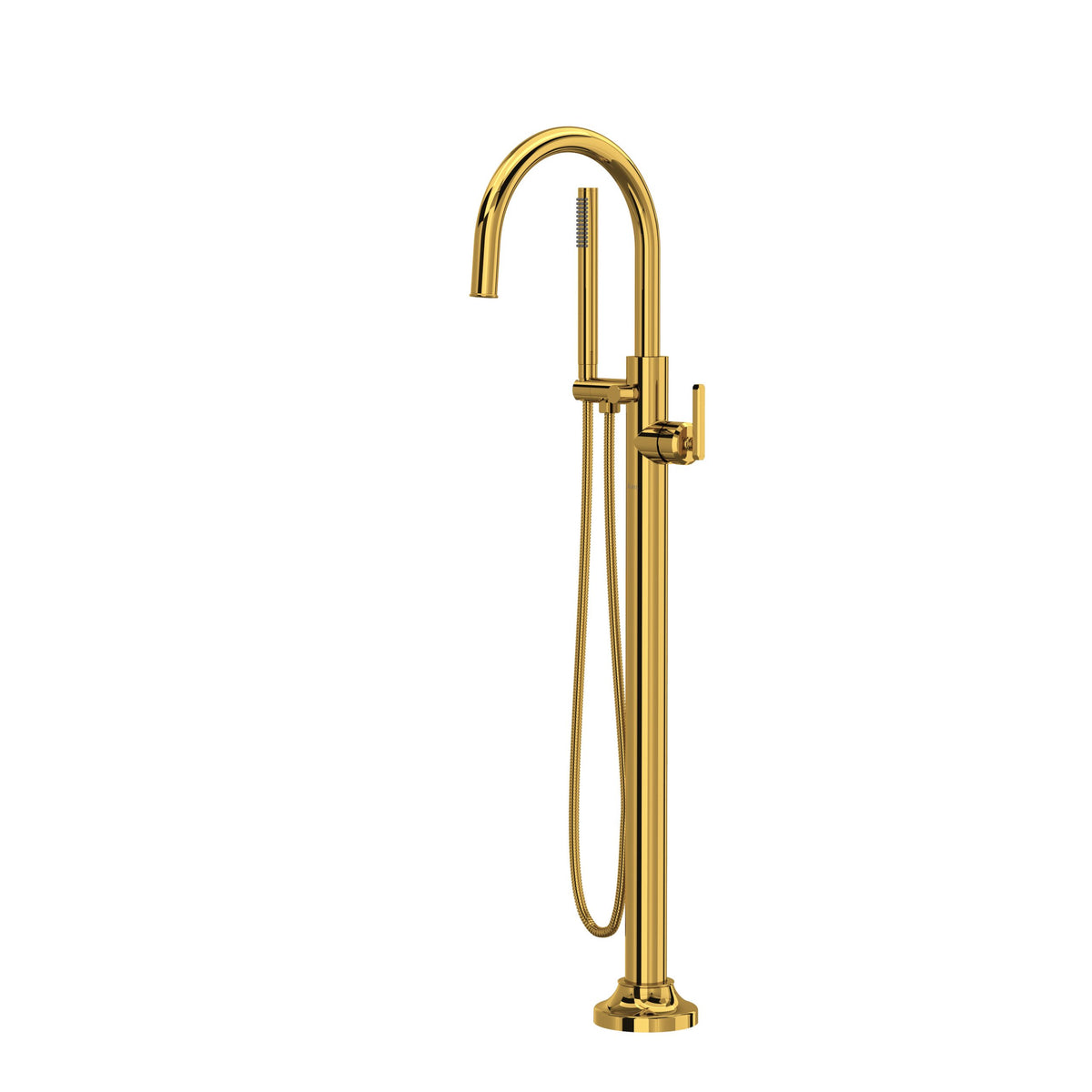

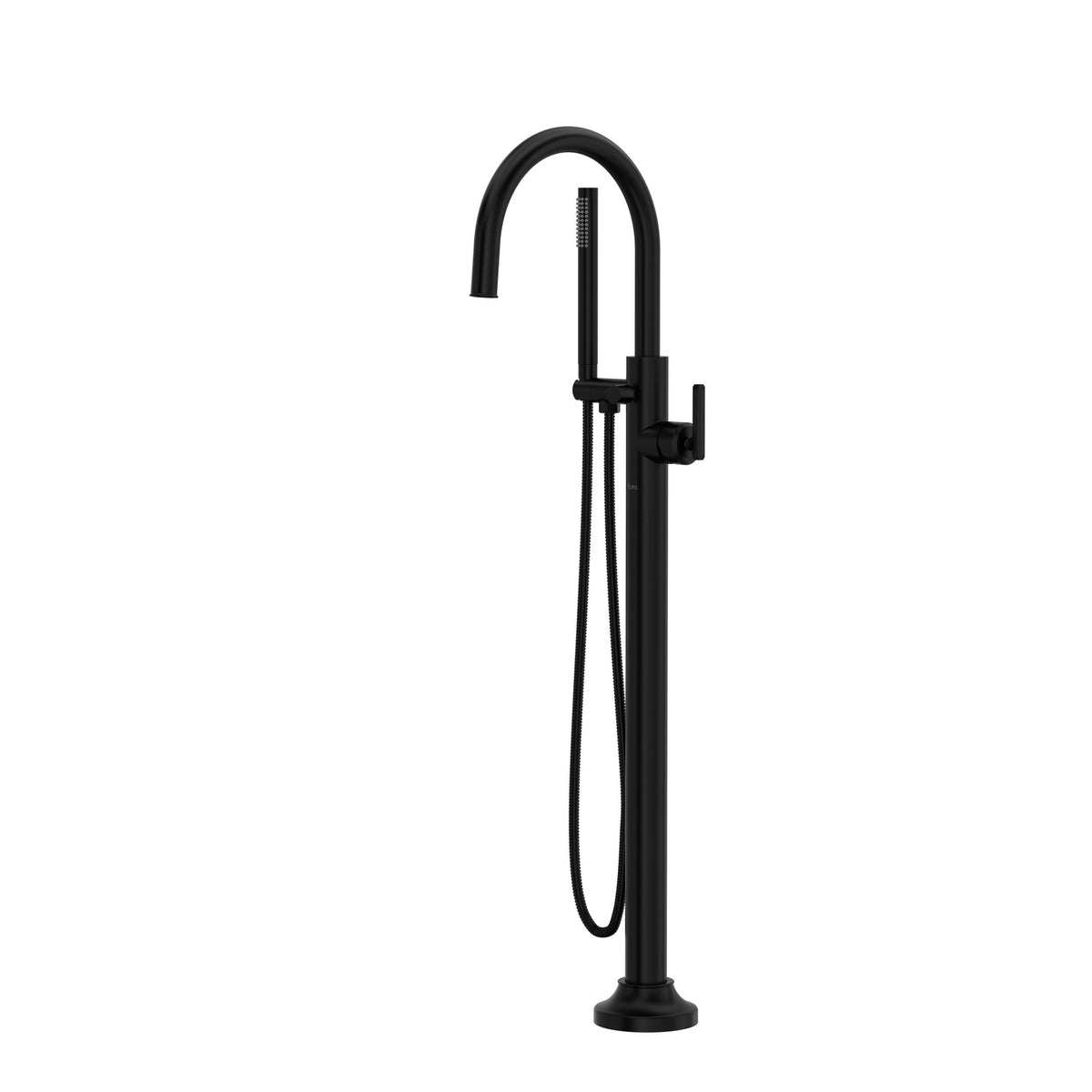

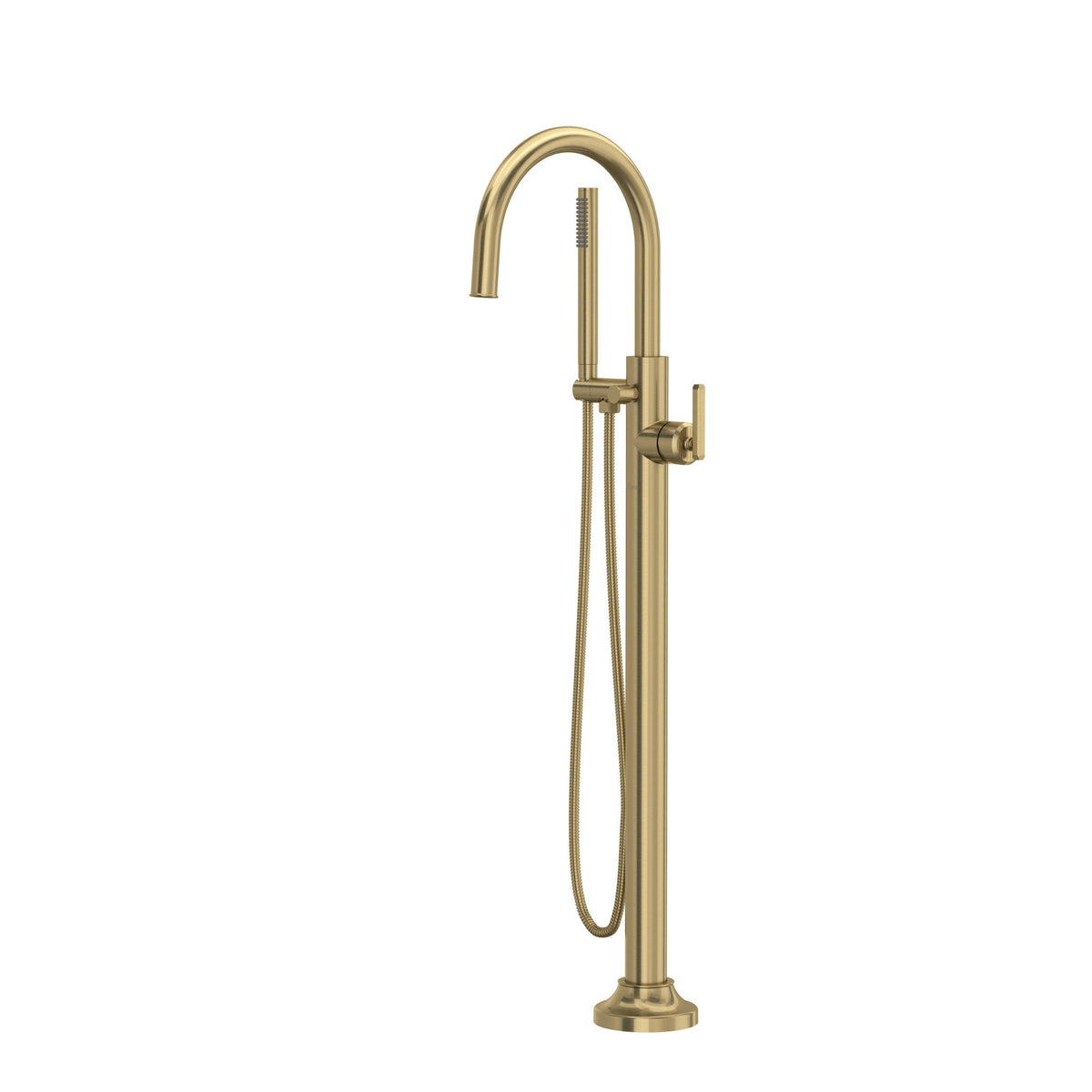

Apothecary™ Single Hole Floor-Mount Tub Filler Trim

The ROHL Apothecary™ Single Hole Floor Mount Tub Filler Trim is a floor-mounted C-spout tub filler with a 1-jet anti-calcium hand shower. The tub filler flows 12 GPM (45.4 L/min) at 60 PSI (CEC compliant), and the hand shower flows 1.8 GPM at 60 PSI. This listing is the trim; the RH0506F1 rough is sold separately.

Features

• 1/2" female NPT inlet
• Installation note: the rough must be recessed under the finished floor
• A remote thermostatic valve may be needed; verify local code requirements
• Single spray type
• Brass construction
• Transitional style

Specifications

• Collection: Apothecary
• Model: TAP05HF1LM Series
• Product type: Tub filler trim
• Mounting: Floor
• Spout shape: C-Spout
• Flow rate: 12 GPM (45.4 L/min) at 60 PSI
• Hand shower: 1 jet, anti-calcium, 1.8 GPM at 60 PSI
• Inlet: 1/2" female NPT
• Standards: ASME A112.18.1/CSA B125.1
• Material: Brass
• Rough (sold separately): RH0506F1
• Warranty (Antique Gold, TAP05HF1LMAG): Limited Lifetime Warranty
• Available finishes: Antique Gold, Polished Chrome, Matte Black, Polished Nickel, Satin Nickel, Unlacquered Brass
