Dartmouth®Undercounter Lavatory

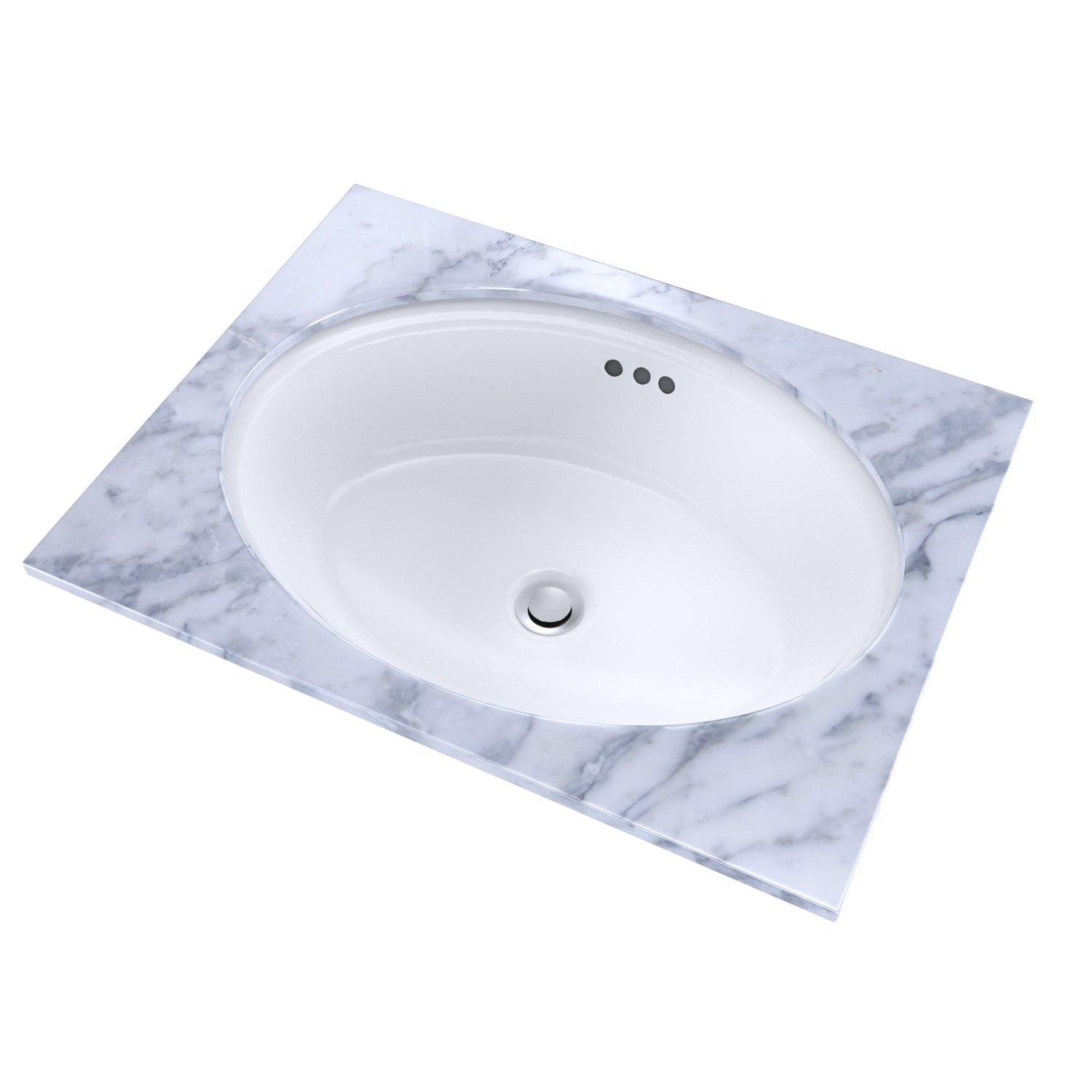

The TOTO Dartmouth® Undercounter Lavatory is an oval bathroom sink with an intricate traditional design and a generously wide basin. It offers the option of front or rear overflow and is made of vitreous china. This listing is the Cotton (#01) colour, and the installation template and mounting hardware are included.

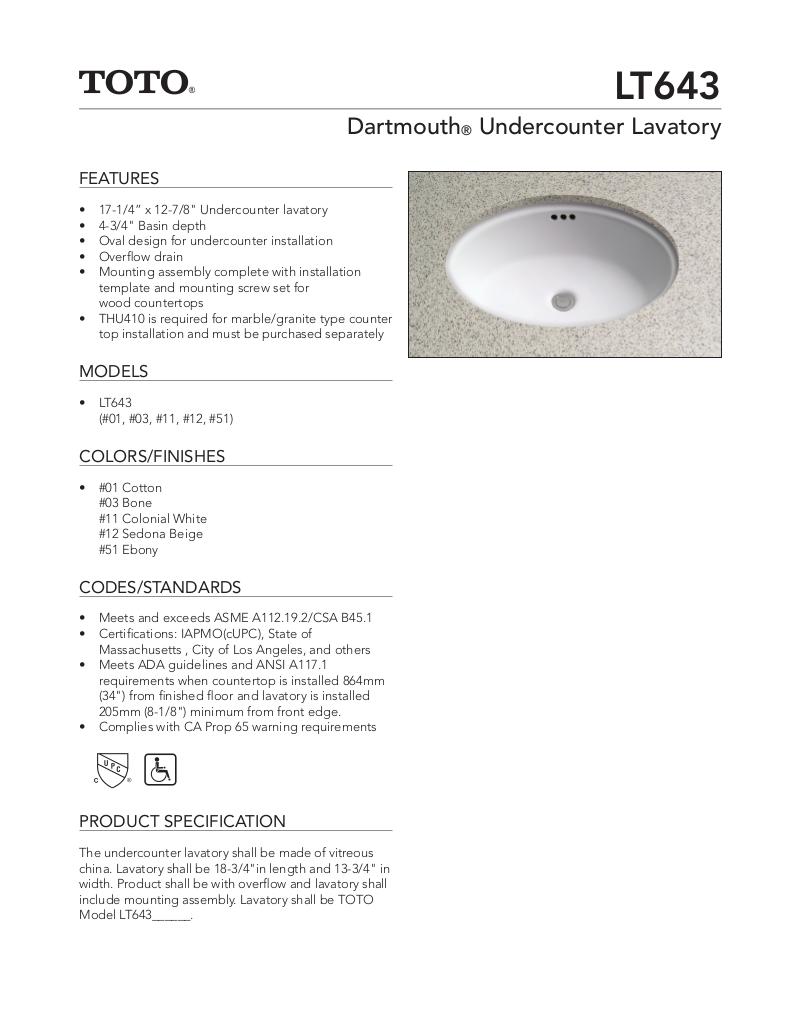

Features

• 17-1/4” x 12-7/8" basin with a 4-3/4" basin depth.
• Oval design for undercounter installation.
• Mounting assembly complete with installation template and mounting screw set for wood countertops.
• THU410 is required for marble/granite type countertop installation and must be purchased separately.
• Meets ADA guidelines and ANSI A117.1 requirements when the countertop is installed 34" from the finished floor and the lavatory is installed 8-1/8" minimum from the front edge.
• Meets and exceeds ASME A112.19.2/CSA B45.1.
• Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others.
• Complies with California Proposition 65 warning requirements.

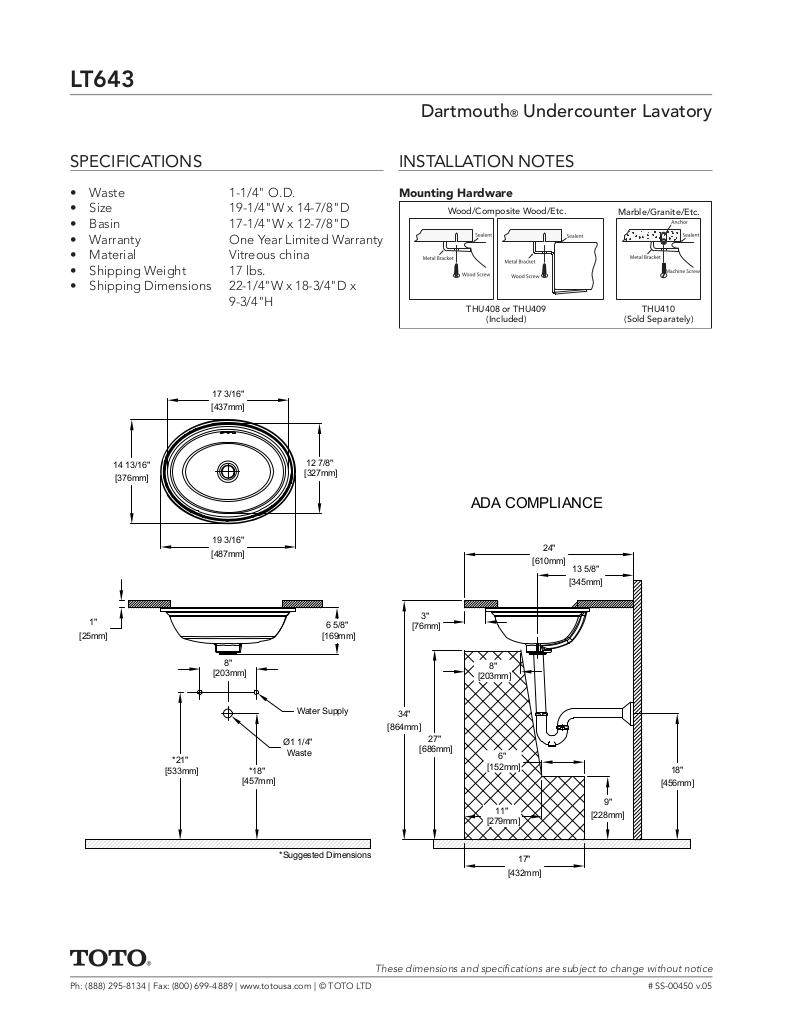

Specifications

• Basin: 17-1/4"W x 12-7/8"D
• Basin depth: 4-3/4"
• Waste: 1-1/4" O.D.
• Material: Vitreous china
• Colour: Cotton (#01)
• Mounting hardware: THU408 or THU409 for wood/composite wood (included); THU410 for marble/granite (sold separately)
• Warranty: One Year Limited Warranty
