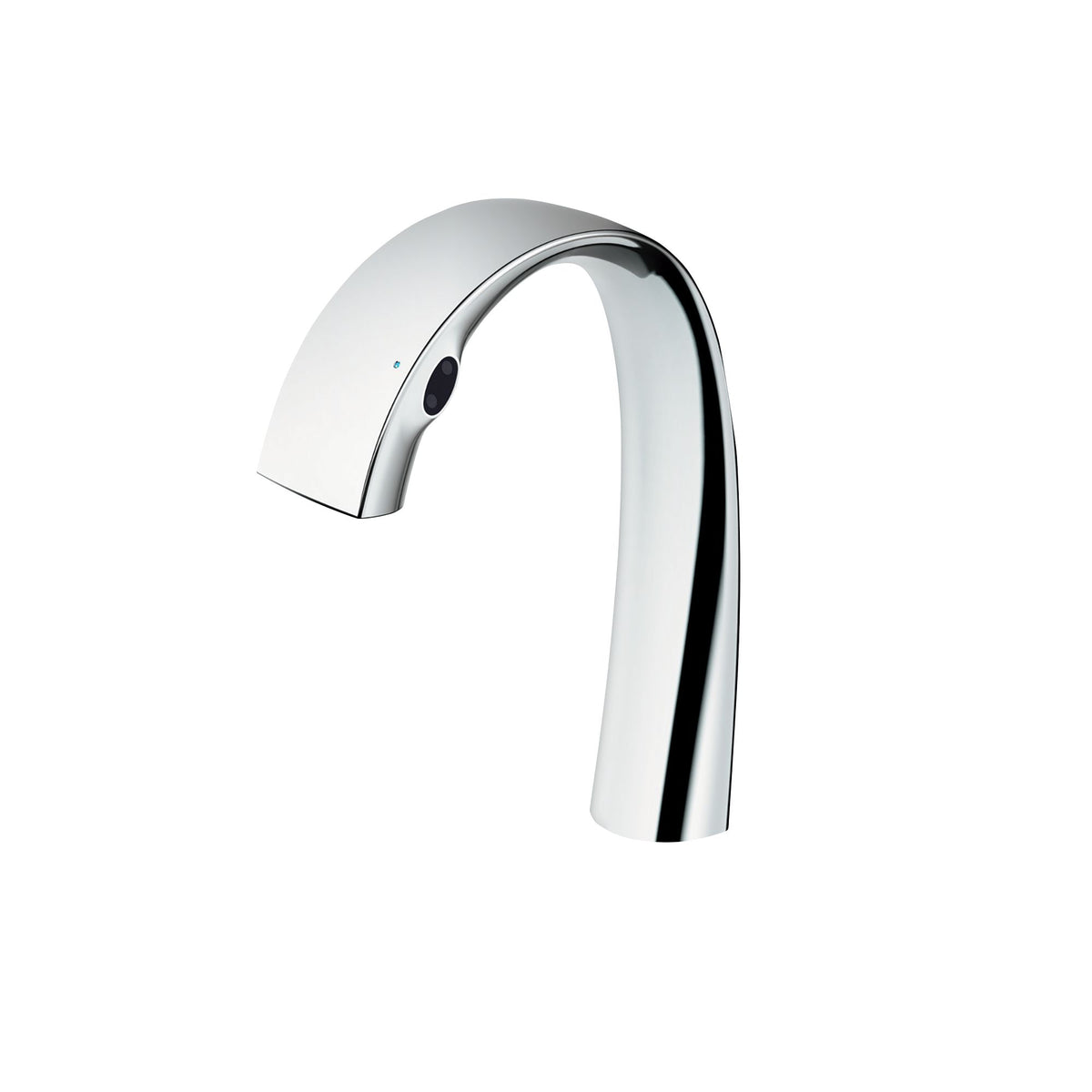

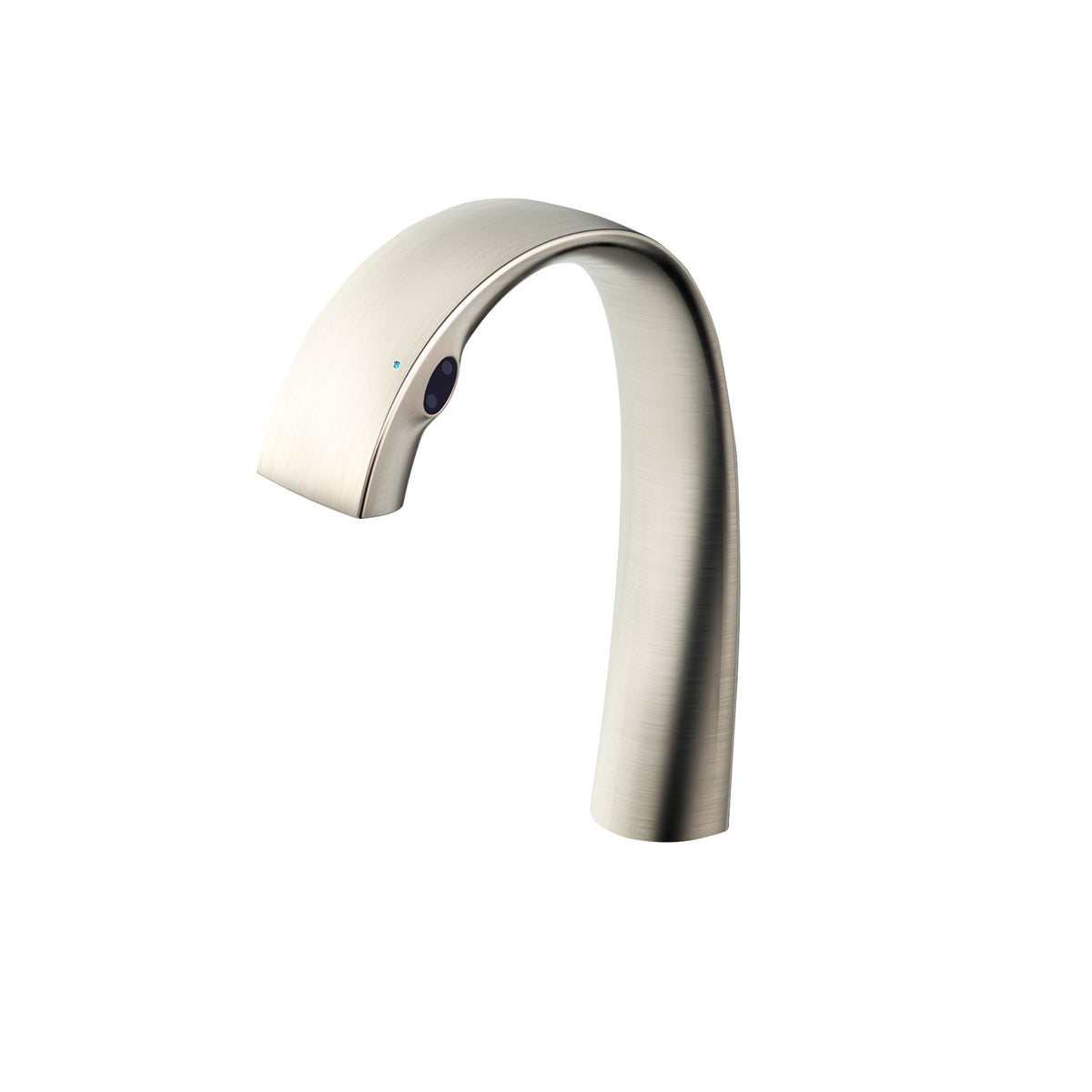

ZN Automatic Lavatory Faucet

The TOTO ZN Automatic Lavatory Faucet (TLP01701U) is a touchless automatic sensor faucet for the bathroom sink. SOFT FLOW® prevents splashing, and the SAFETY THERMO® thermostatic mixing valve provides scald prevention. It is a WaterSense® certified 1.1 gpm faucet with a temperature indicating LED light; installation requires the TLP01702U controller, sold separately.

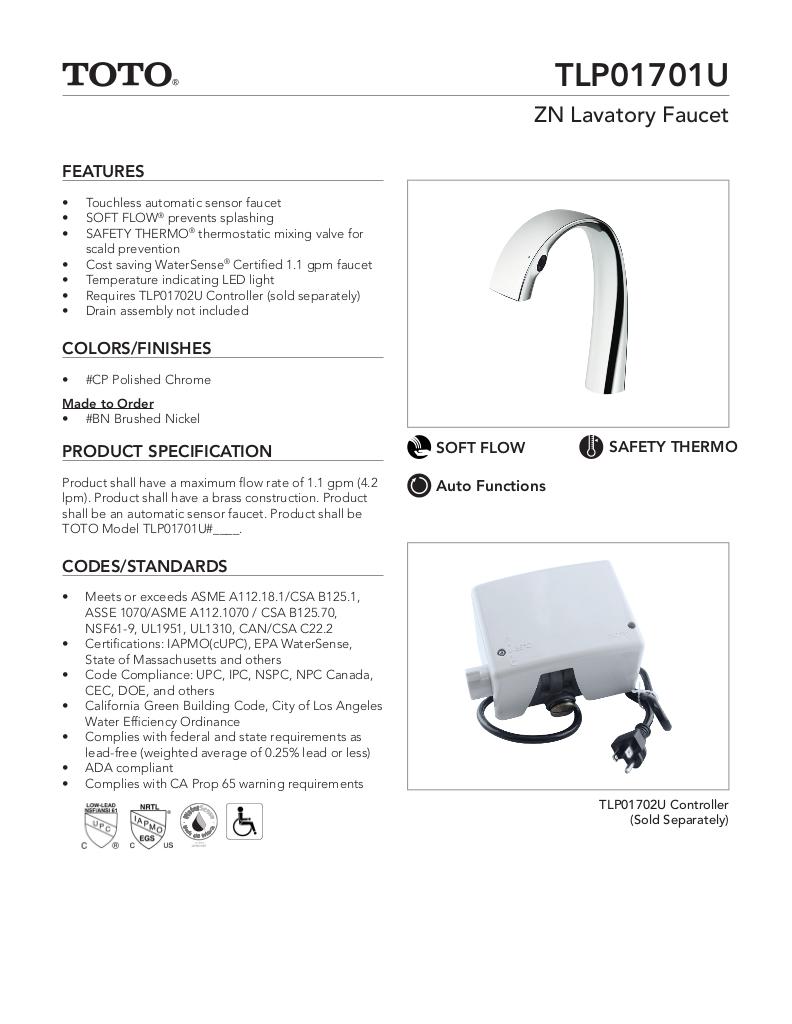

Features

• Touchless automatic sensor faucet

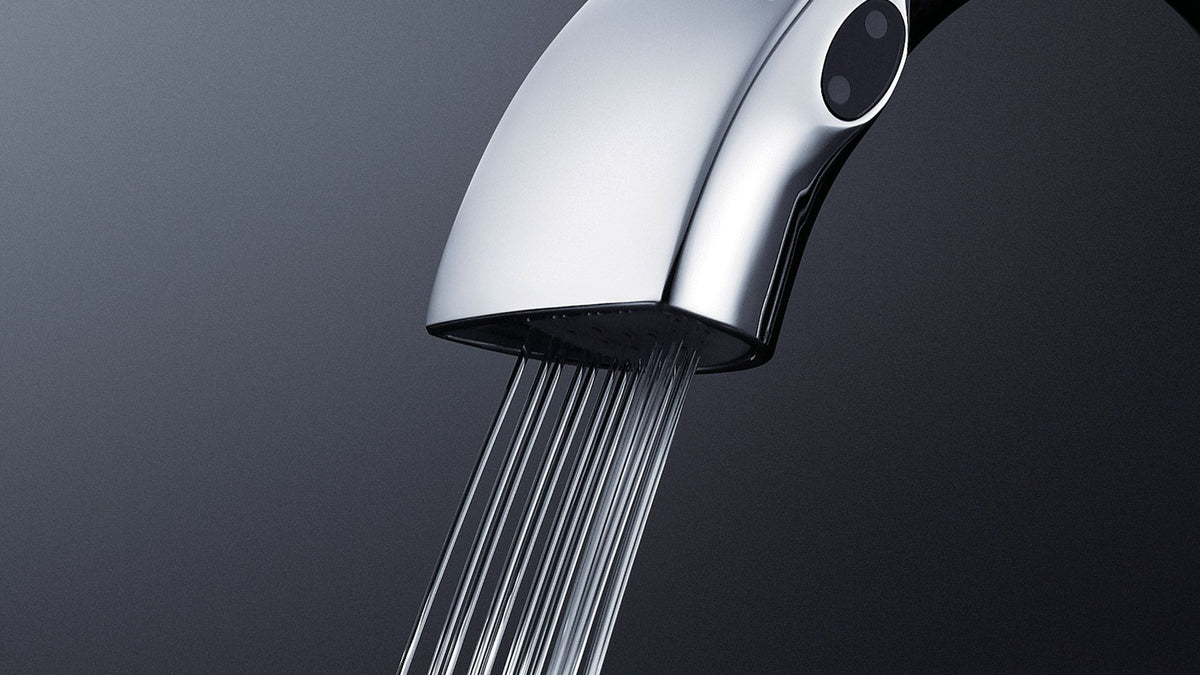

• SOFT FLOW® prevents splashing
• SAFETY THERMO® thermostatic mixing valve for scald prevention
• WaterSense® certified 1.1 gpm faucet
• Temperature indicating LED light
• Requires TLP01702U controller (sold separately)
• Drain assembly not included
• ADA compliant

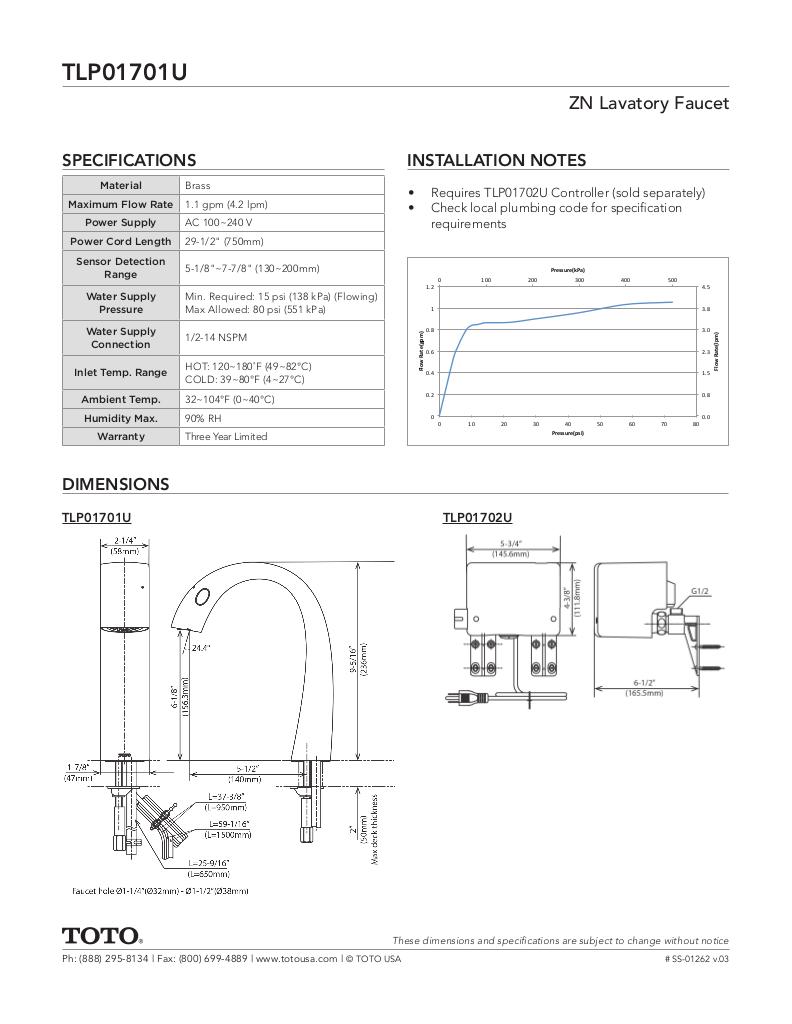

Specifications

• Material: Brass
• Maximum flow rate: 1.1 gpm (4.2 lpm)
• Power supply: AC 100~240 V
• Power cord length: 29-1/2" (750mm)
• Sensor detection range: 5-1/8"~7-7/8" (130~200mm)
• Water supply pressure: Min. required: 15 psi (138 kPa) (flowing); max allowed: 80 psi (551 kPa)
• Water supply connection: 1/2-14 NSPM
• Inlet temperature range: Hot: 120~180˚F (49~82°C); cold: 39~80°F (4~27°C)
• Ambient temperature: 32~104°F (0~40°C)
• Humidity max.: 90% RH
• Warranty: Three Year Limited
• Codes/standards: Meets or exceeds ASME A112.18.1/CSA B125.1, ASSE 1070/ASME A112.1070 / CSA B125.70, NSF61-9, UL1951, UL1310, CAN/CSA C22.2
• Certifications: IAPMO(cUPC), EPA WaterSense, State of Massachusetts and others
