ZEHN TRIM FOR WALL MOUNT LAVATORY FAUCET

The Vogt Zehn trim for a wall mount lavatory faucet is the trim only for an 8” C.C. wall mount 3 piece lavatory faucet. It is made of solid brass with a 1/2” female NPT connection and an adjustable aerator that lets you change the direction of the flow with the tip of your finger. The valve is not included; the VE.1500 valve is required for installation.

Features

• 3 piece wall mount lavatory faucet trim
• Solid brass construction
• Adjustable aerator
• 1/2” female NPT connection
• Flow rate: 1.5 gpm / 5.7 lpm / 60 psi
• Ceramic disk cartridges: CE.1700.R (cold) and CE.1700.L (hot)
• Limited lifetime warranty against all manufacturing defects to the original consumer purchaser (see full warranty for more details)

Specifications

• Model: TM.Z3.1500
• Configuration: 8” C.C. wall mount, 3 piece, trim only
• Flow rate: 1.5 gpm / 5.7 lpm / 60 psi
• Connection: 1/2” female NPT
• Cartridges: CE.1700.R (cold), CE.1700.L (hot)
• Codes / standards: UPC, ASME A112.18.1/CSA B125.1, NSF 372, NSF/ANSI 61

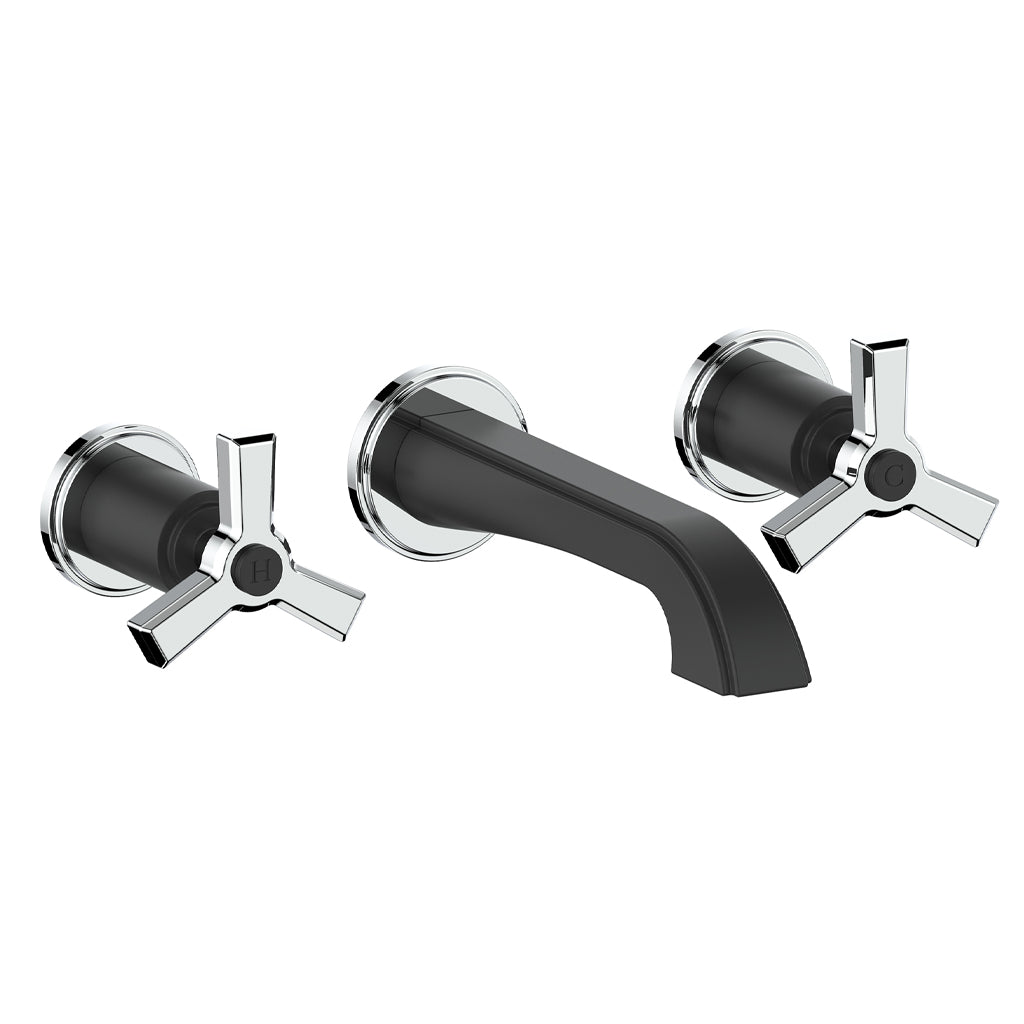

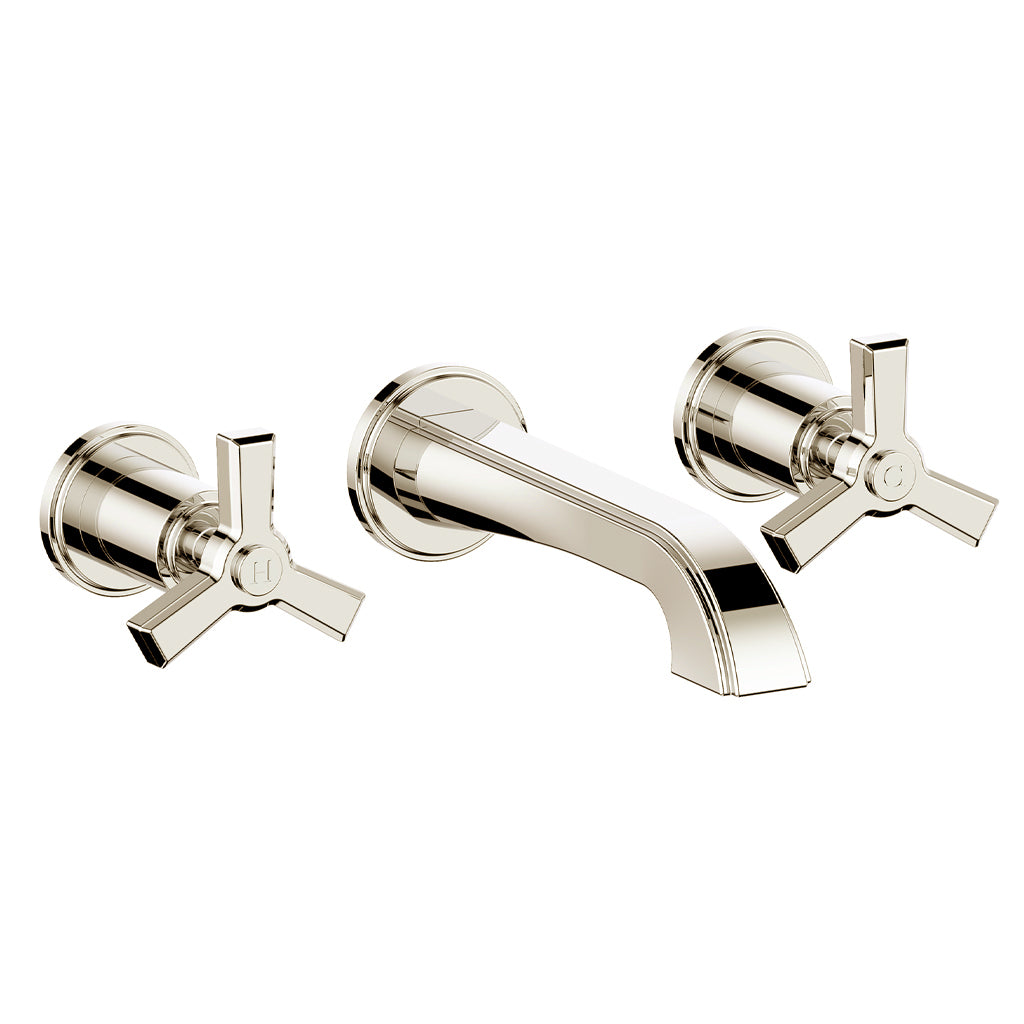

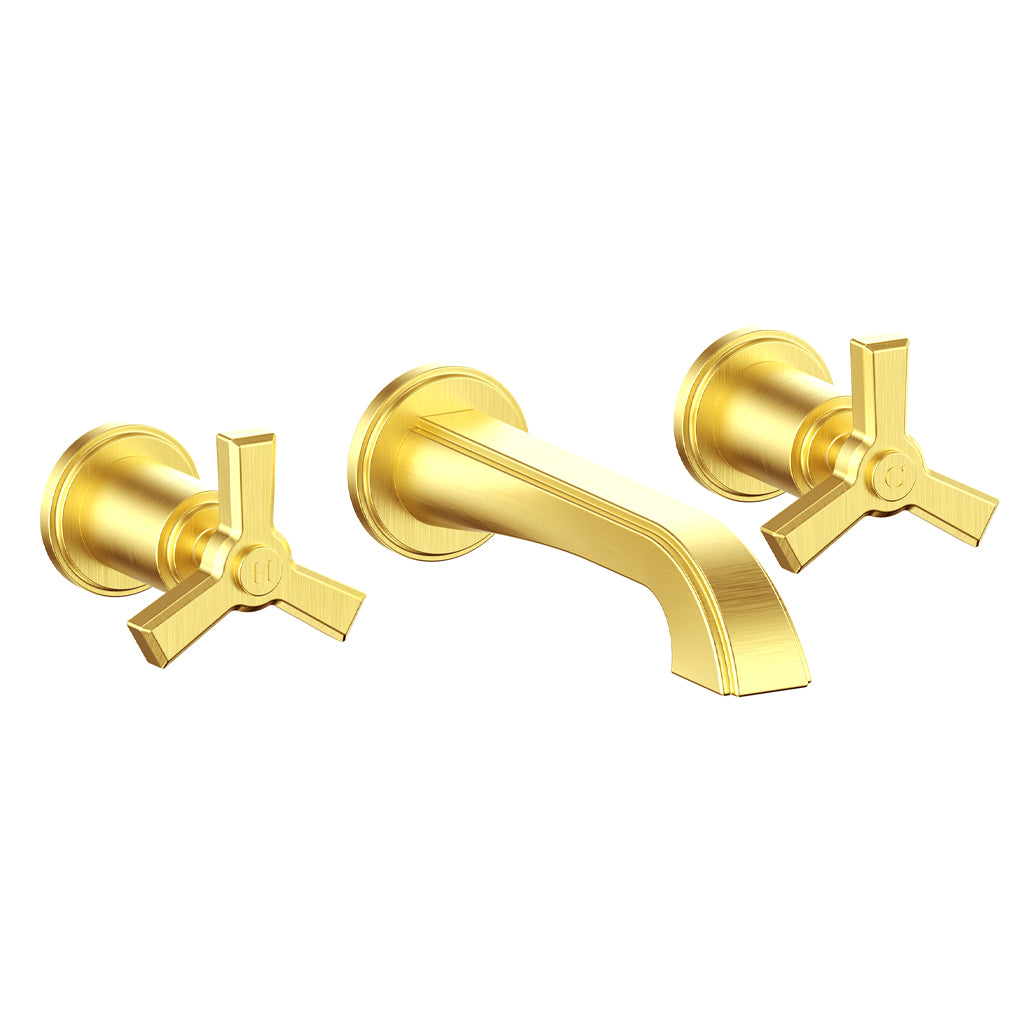

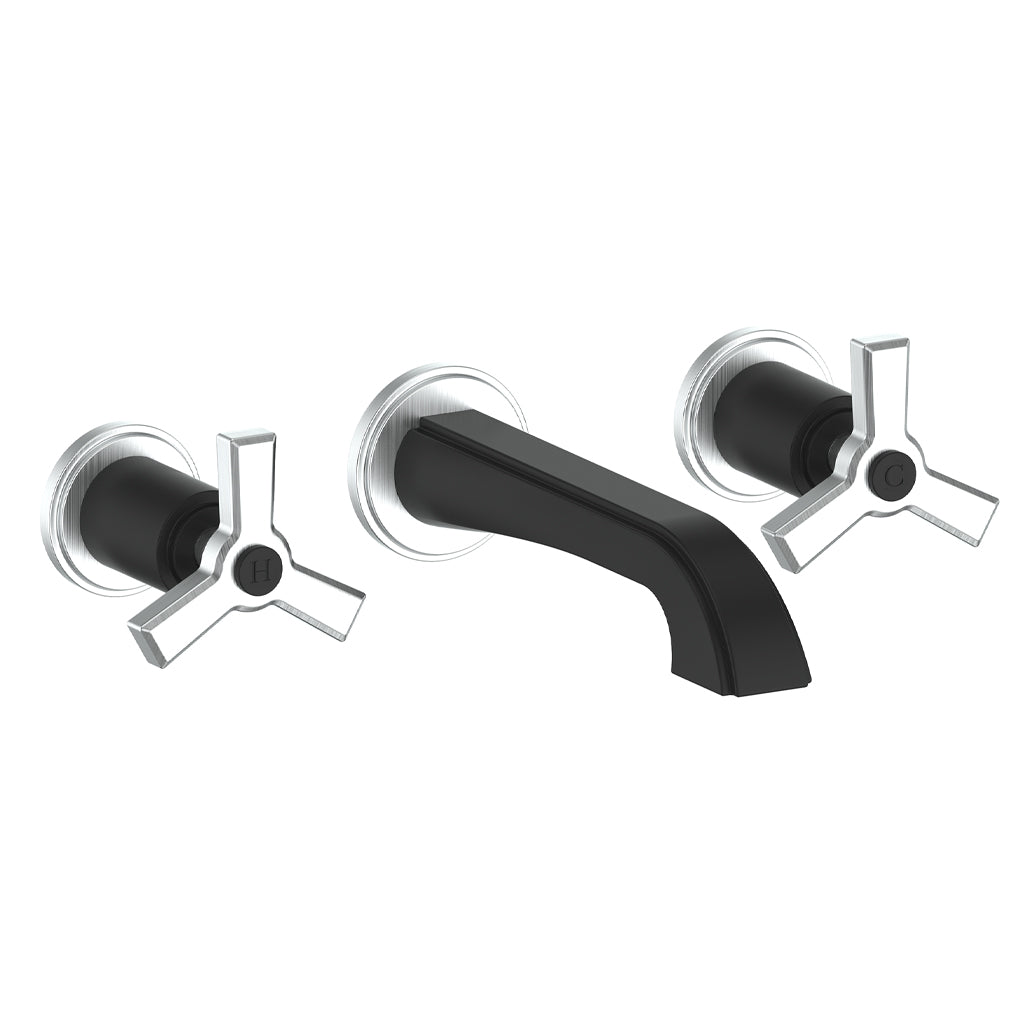

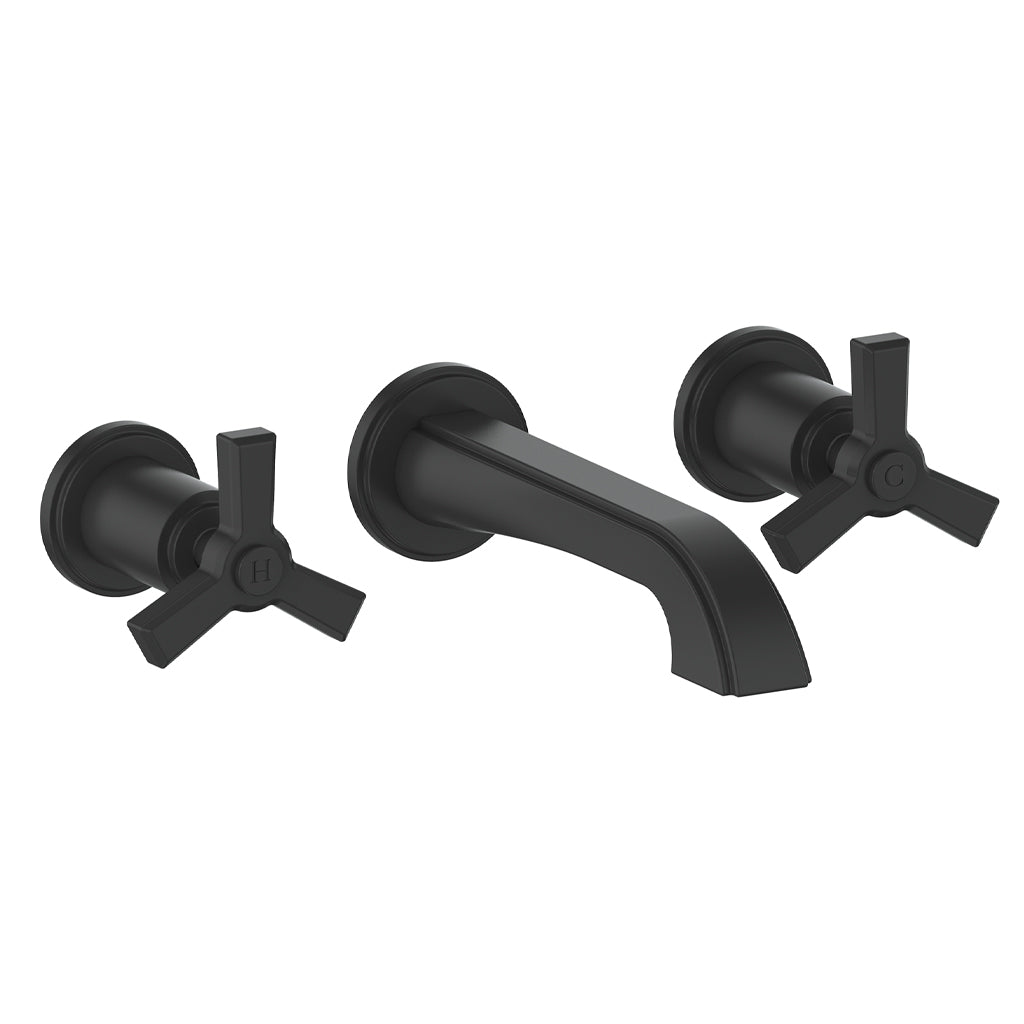

• Finishes: Available in eight finishes, including: Chrome, Matte Black, Chrome/Matte Black, Polished Nickel, Polished Nickel/Matte Black, Brushed Gold, Brushed Gold/Matte black
• Installation requirement: VE.1500 valve (not included)
