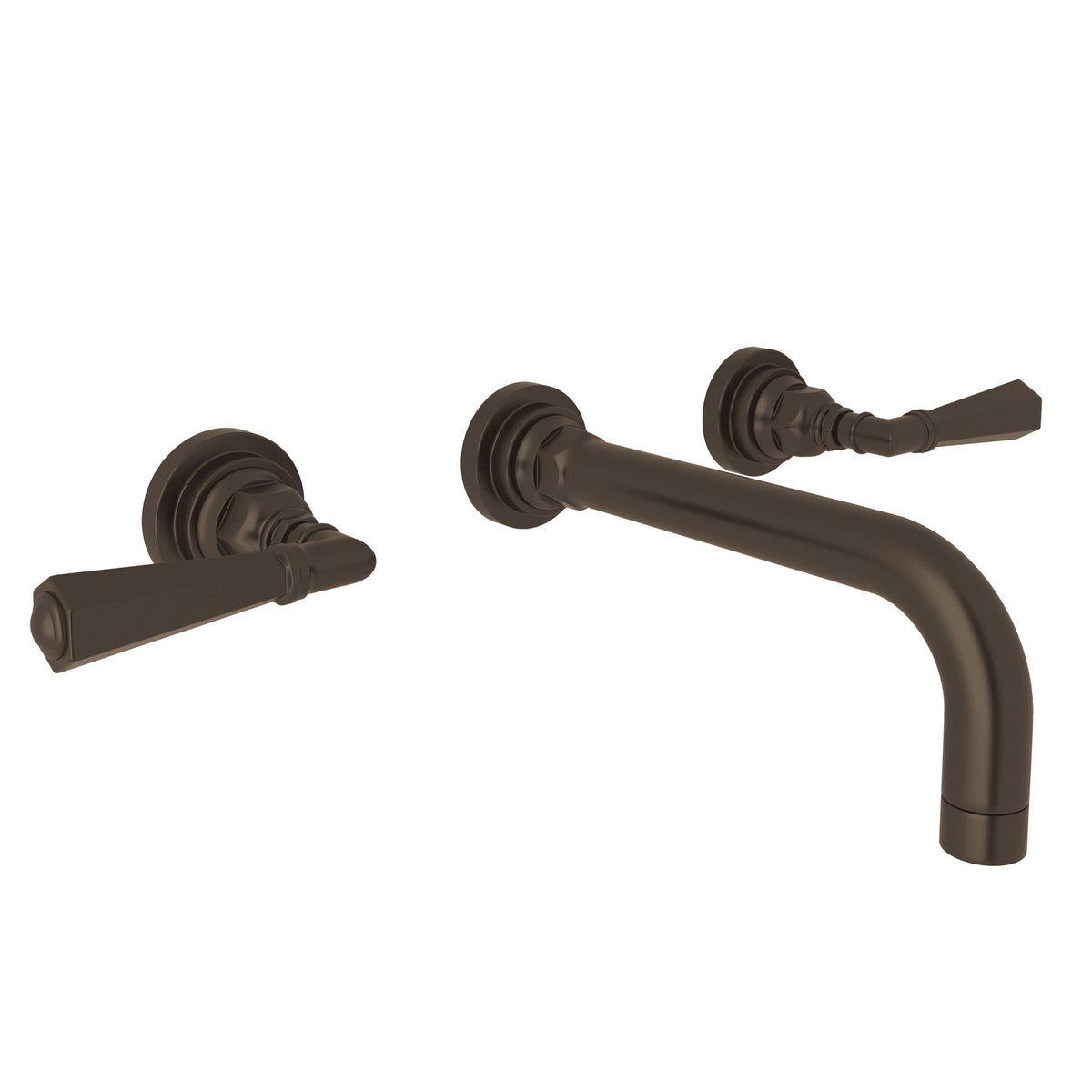

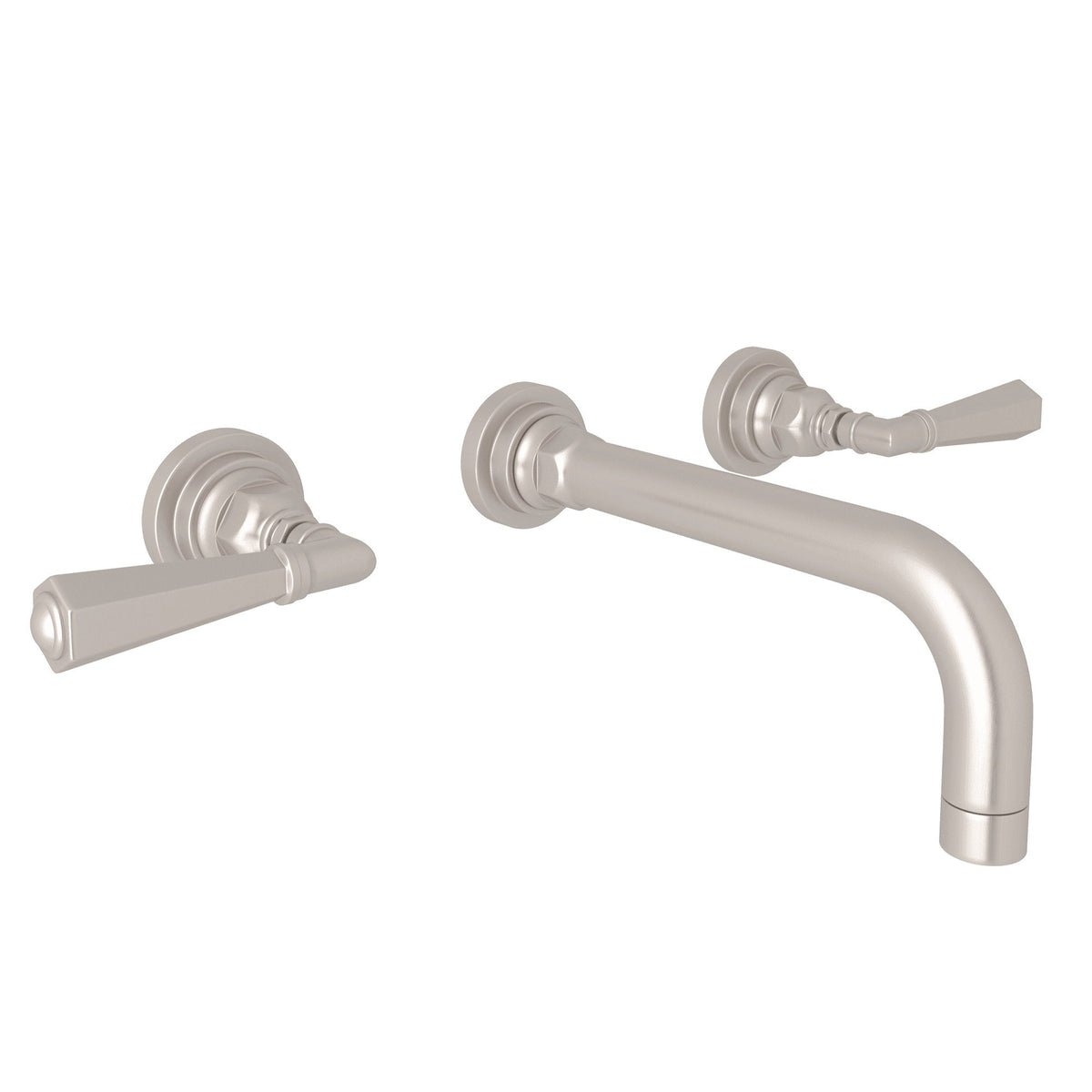

San Giovanni® Wall Mount Lavatory Faucet A2307LMTO-2

The ROHL San Giovanni wall mount widespread lavatory faucet trim (A2307LM) has metal levers and a 1/2" wall mount hot and cold design with a separate fixed spout. It flows 1.2 GPM/4.5 LPM at 60 PSI and is WaterSense and CEC compliant. The rough valve and the drain are sold separately.

Features

• 1/4-turn ceramic disc control cartridges
• Brass construction
• 7 7/8" spout reach with 1/2" female inlet
• 1/2" NPT connectors
• Pop-up not included
• Needed for installation (sold separately): A5039L (lever) or A5039X (cross) wall rough valve
• Needed for installation: plumber to provide a 1/2" male nipple T-fitting for spout installation

Specifications

• Flow rate: 1.2 GPM/4.5 LPM at 60 PSI
• Standards: ASME A112.18.1/CSA B125.1, NSF 61/9 & 372 Q ≤ 1, CEC
• Mounting: Wall
• Hole configuration: 3
• Spout shape: U-Spout
• Style: Transitional
• Available finishes: Polished Chrome, Polished Nickel, Satin Nickel, Tuscan Brass
• Warranty: Limited Lifetime Warranty; no warranty on the Tuscan Brass finish
• Country of origin (Polished Chrome, A2307LMAPCTO-2): Italy
