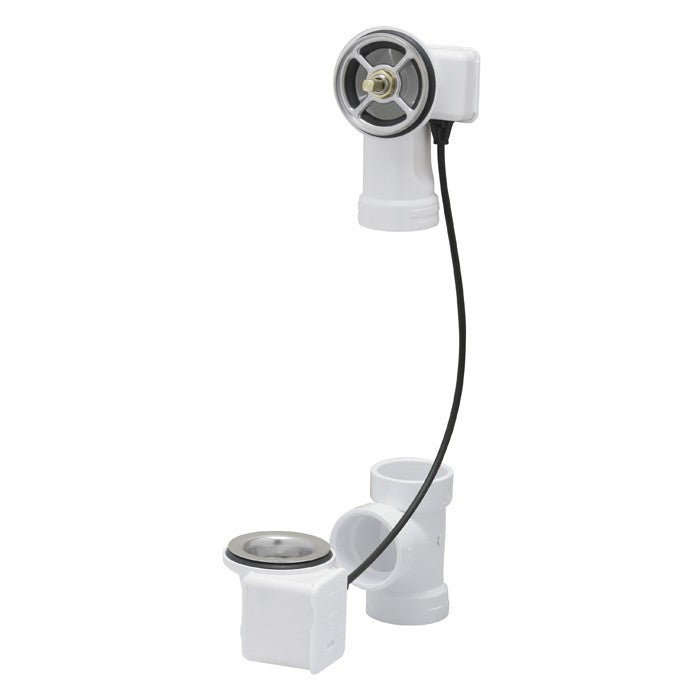

TURNCONTROL BATH WASTE AND OVERFLOW

The Geberit TurnControl bath waste and overflow is a tub drain that opens and closes with a simple one-eighth turn of the handle. TurnControl tub drains have been an industry standard since their introduction over 25 years ago, and they are made in the USA. This version is specified in 1-1/2 inch PVC Schedule 40.

Features

• Fits most tubs 12 to 30 inches deep, with a range of cable lengths to suit a wide array of popular tub designs.
• Teflon-coated stainless steel actuation cable sits outside of the waterway.
• Intuitive, lightweight operation with a 1/8 turn rotary TurnControl handle for easy, quick drain opening and closing.
• Includes rough-in piping (select models) with actuation cable, drain shoe and overflow housing, plus installation tools and mounting hardware; decorative trim is included with complete units only.
• Installation note: tubular rough-ins use compression joints and may not be suitable where glued joints are required; consult local codes before installing.

Specifications

• Model: 151.506.00.1
• Material: 1-1/2 inch PVC Schedule 40
• Operation: 1/8 turn rotary TurnControl handle
• Tub depth: Fits most tubs 12 to 30 inches deep
• Country of manufacture: USA
