SIGMA50

The Geberit Sigma50 is a dual-flush actuator flush plate for Sigma concealed tanks in 2x6 and 2x4 installations. In 2014, industrial designer Christoph Behling updated the Sigma50 without altering the dimensions of the plate, eliminating the metal border so the plate seems to float in front of the wall. In 2019, Geberit and Behling collaborated again to make the Sigma50 sleeker and more touchable.

Features

• Dual-flush actuator for Sigma concealed tanks, 2x6 and 2x4 installations
• Incorporates water saving possibilities when used with Geberit dual-flush tanks: 1.6 GPF (6 LPF) and 0.8 GPF (3 LPF), or 1.28 GPF (4.8 LPF) and 0.8 GPF (3 LPF)
• Designed to maintain appearance push after push
• Moving parts are accessible behind the actuator flush plate

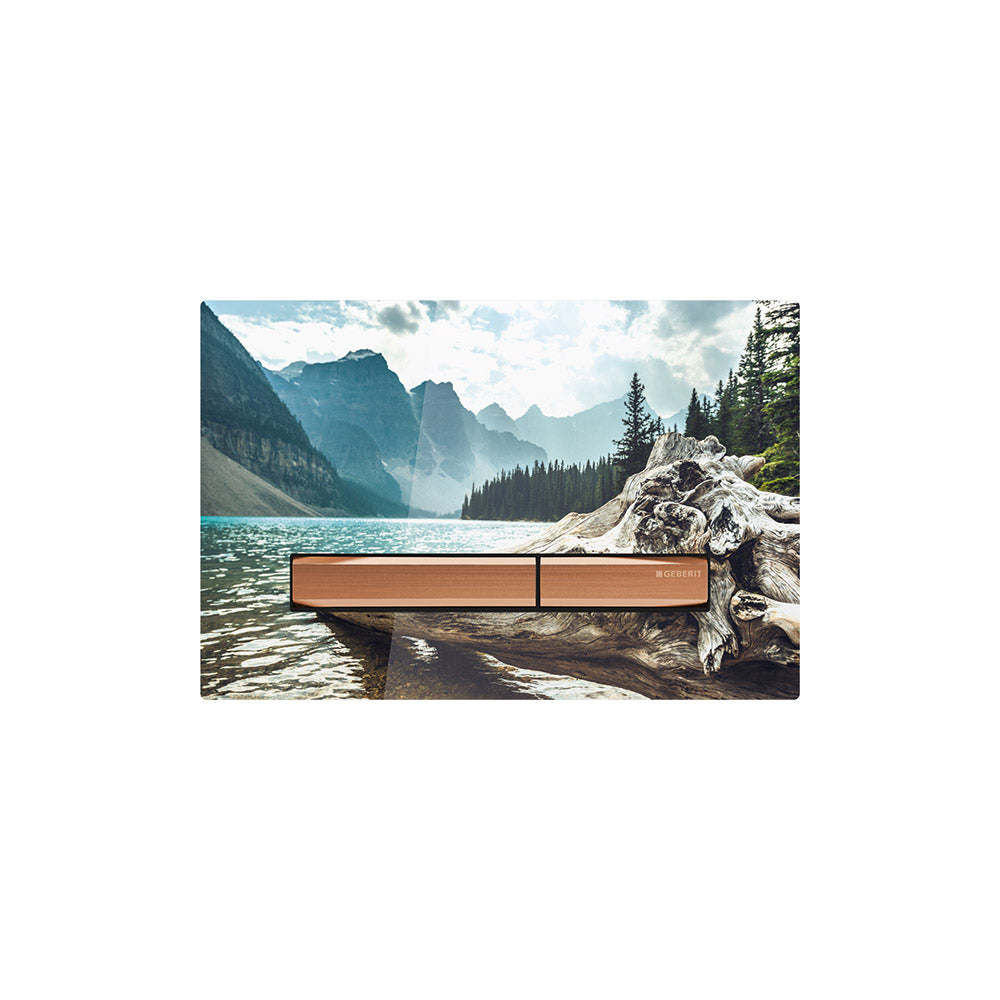

• Customizable overlay version: cut a personalized overlay to your exact specifications, for example to match the wallcovering or display a photograph
• Includes mounting frame and hardware

Specifications

• Installation: Sigma concealed tanks, 2x6 and 2x4 installations
• Flush type: Dual flush
• Flush volumes (with Geberit dual-flush tanks): 1.6 GPF (6 LPF) and 0.8 GPF (3 LPF), or 1.28 GPF (4.8 LPF) and 0.8 GPF (3 LPF)
• Included: Mounting frame and hardware
• Warranty: One-year limited warranty

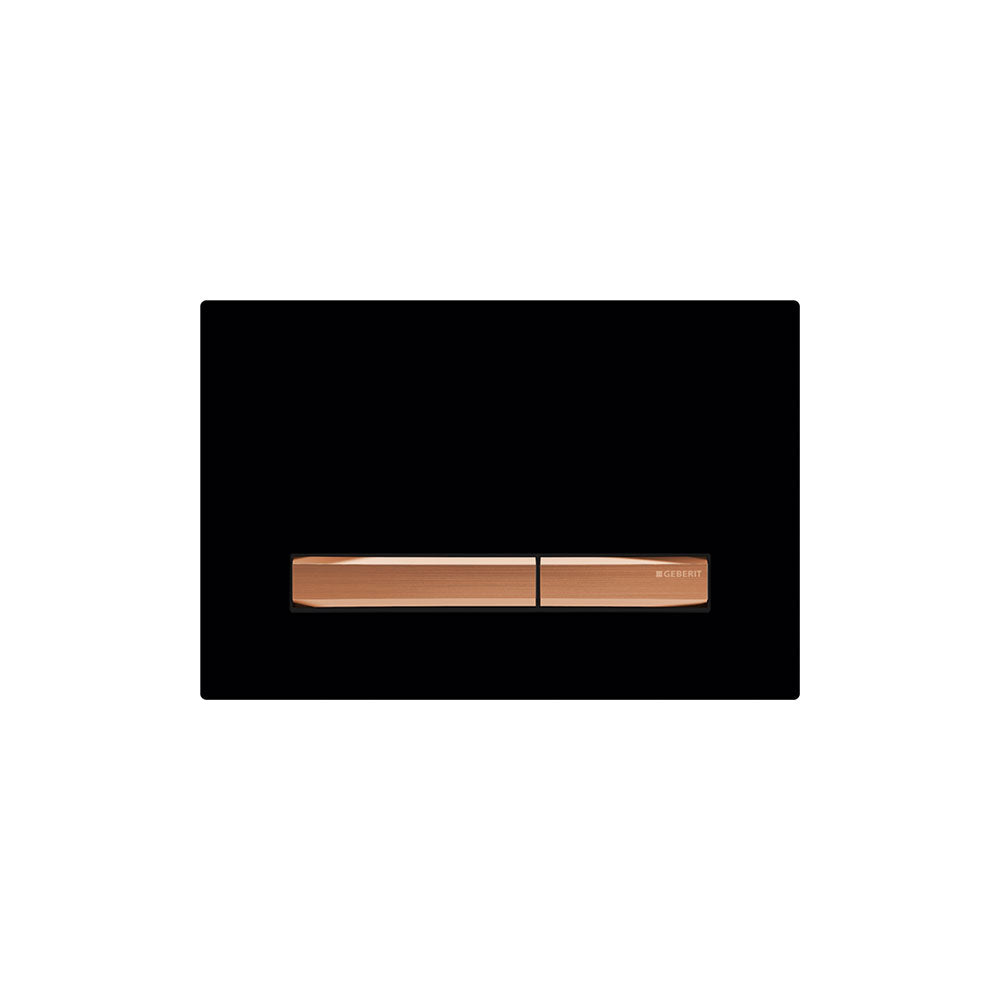

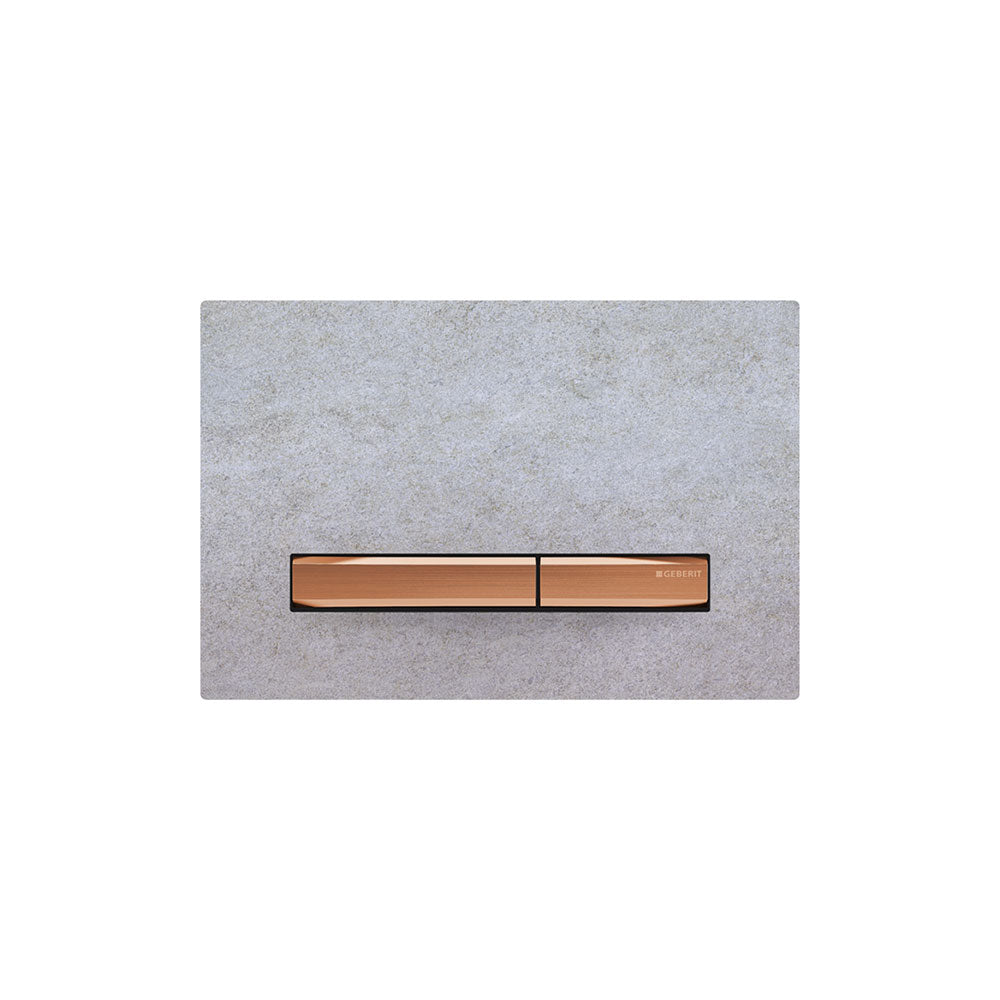

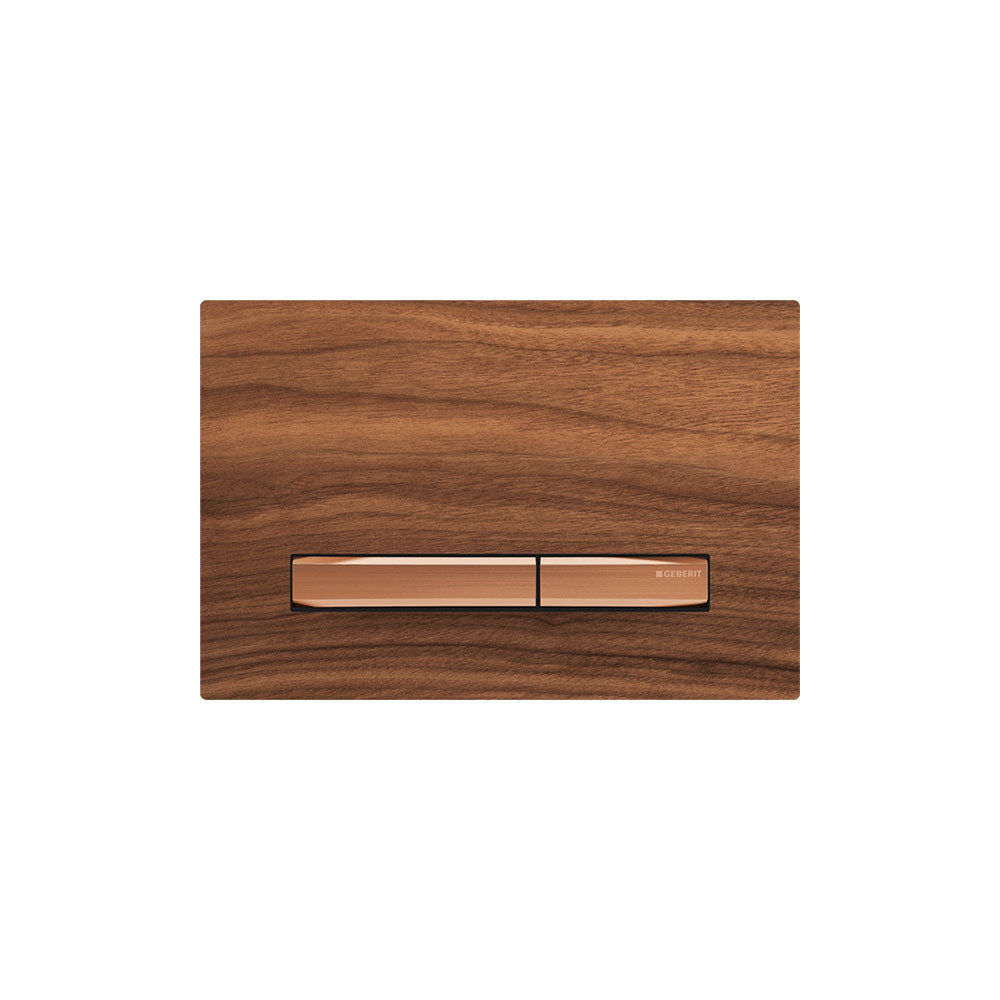

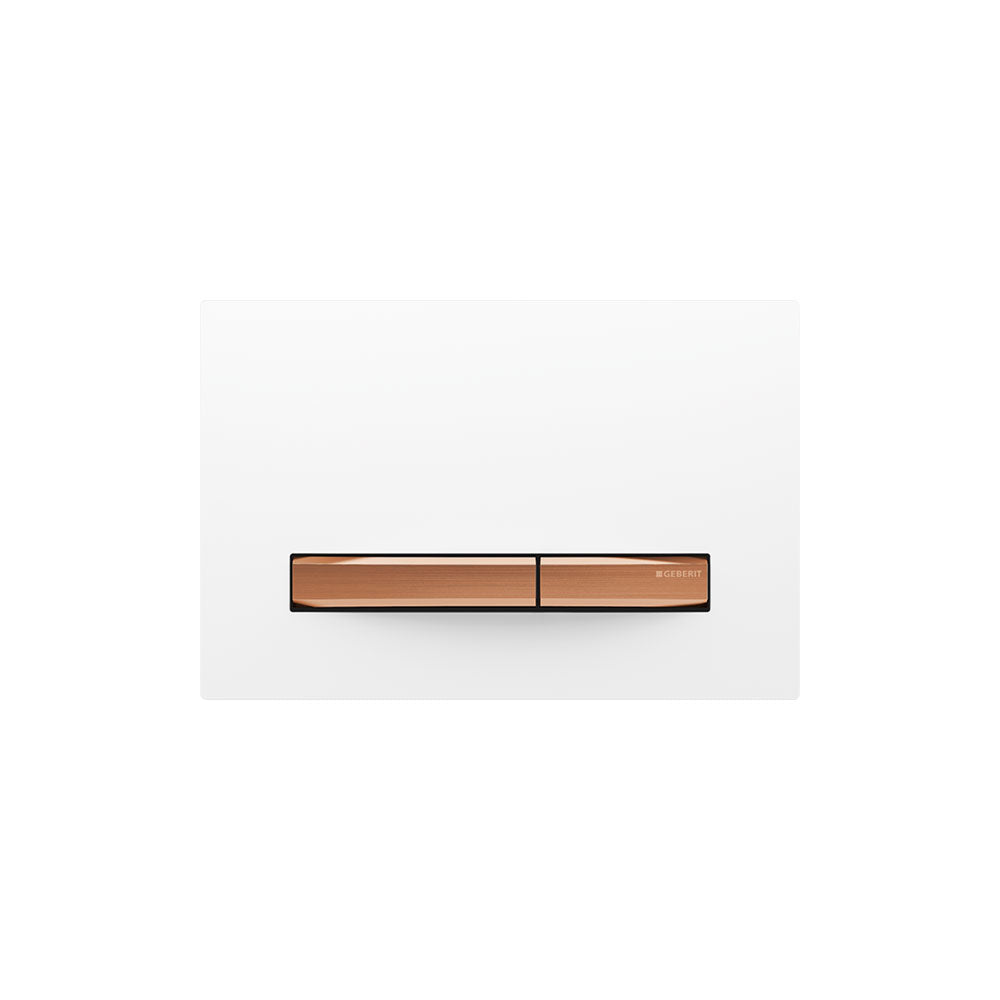

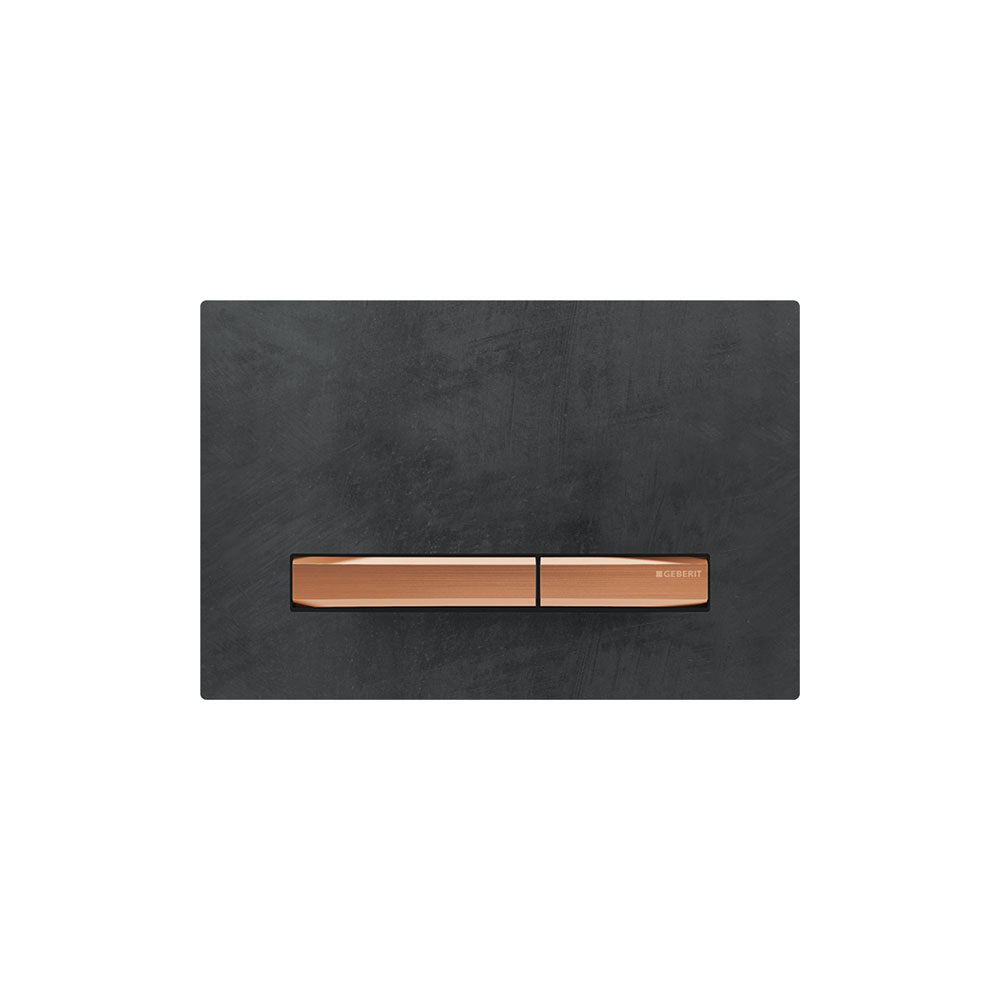

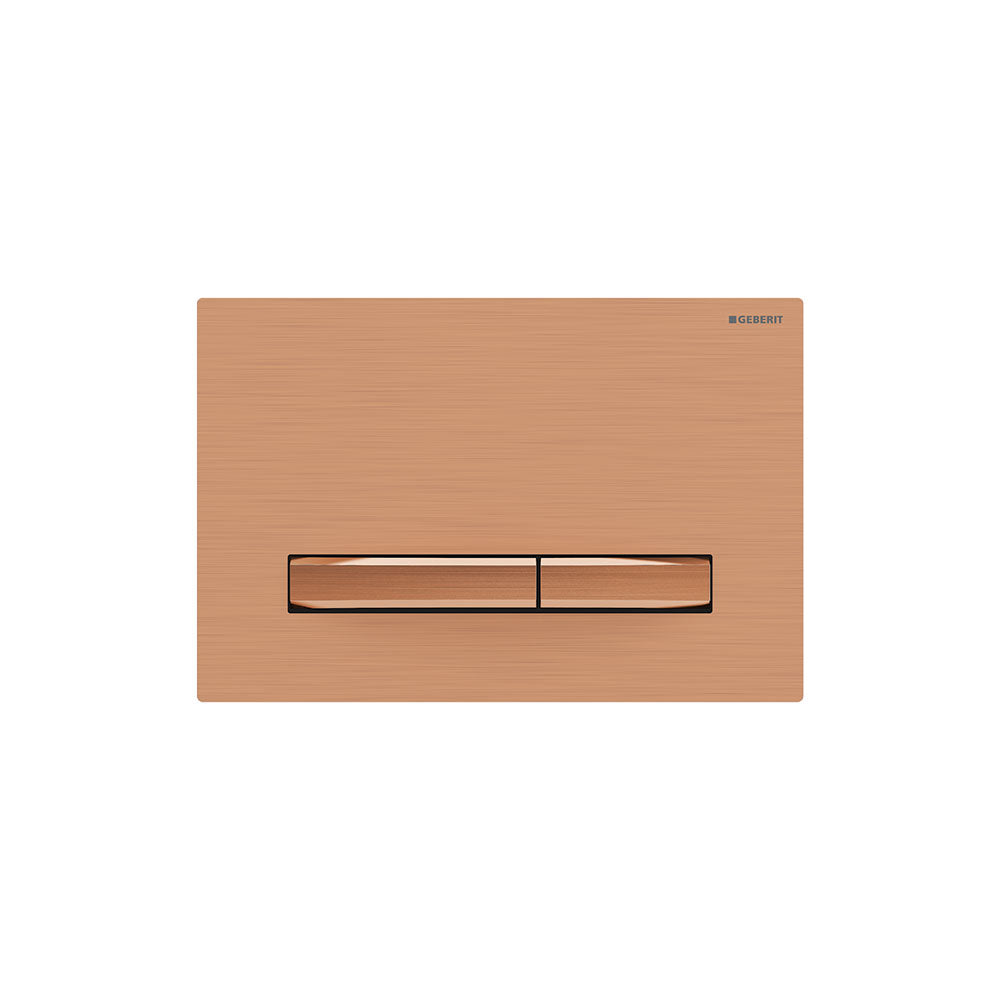

• Available finishes: Customizable overlay, White, Black, Mustang slate, Concrete look, Black walnut, Brushed red gold
