PUSHCONTROL BATH WASTE AND OVERFLOW

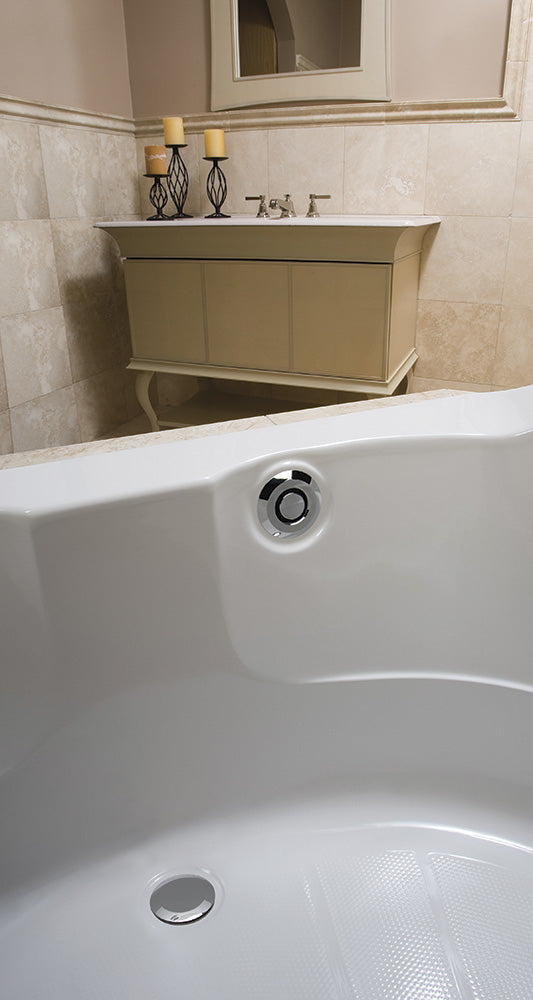

The Geberit PushControl bath waste and overflow is a cable-operated push button tub drain: a simple push on the self-adjusting push button opens and closes the tub drain. It has a solid brass push button and plunger, a decorative trim kit with flexible neck and a stainless steel strainer. The patented PushControl line is a thin, elegant drain design that earned the iF Award (International Design Forum).

Features

• Self-adjusting push button opens and closes the drain
• Thin profile
• Solid brass push button and plunger
• Decorative trim kit with flexible neck
• 27" Teflon-coated stainless steel cable
• Installation tools included
• ASME A112.18.2/CSA B125.2 compliant
• Not suitable where glued joints are required; consult local codes before installing

Specifications

• Tub depth: Fits most tubs 17"-24" deep
• Tub wall thickness: Up to 1/2"
• Drain hole opening: 2" dia.
• Overflow hole opening: 2" to 2-1/2" dia.
• Tubular: 1-1/2" tubular PP, .08" wall
• Cable: 27" Teflon-coated stainless steel
• Strainer: Stainless steel
• Compliance: ASME A112.18.2/CSA B125.2
• Available finishes: Brass - Polished chrome, Brass - ForeverShine (ForeverShine PVD brushed nickel)

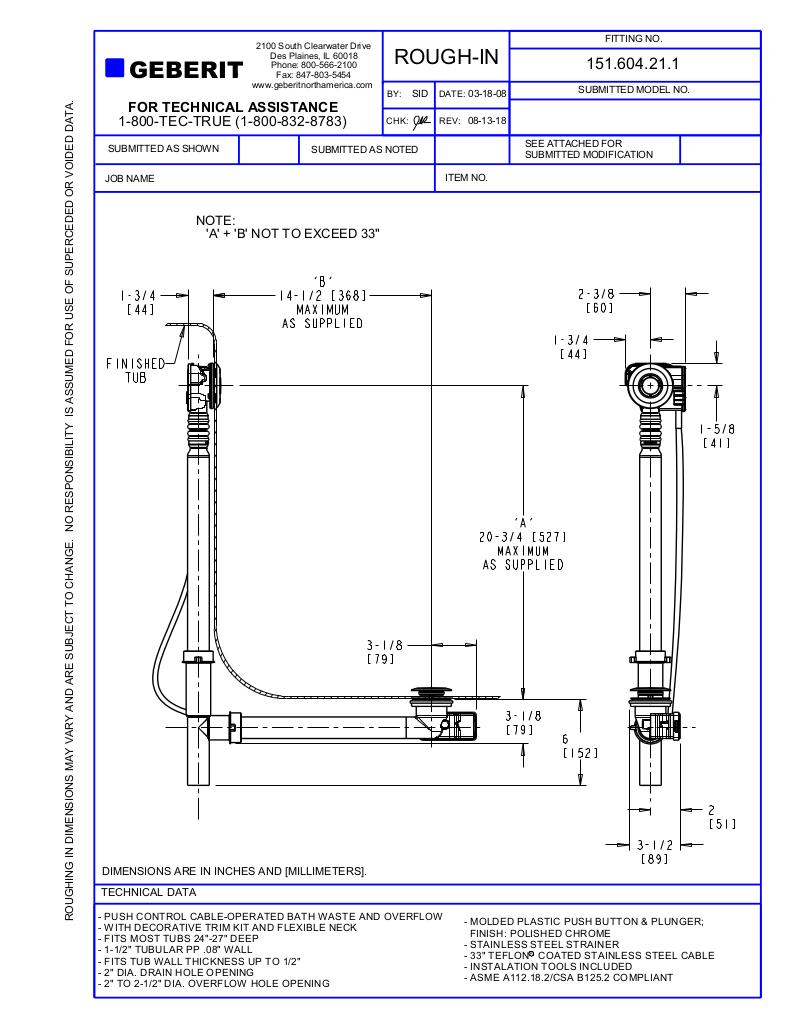

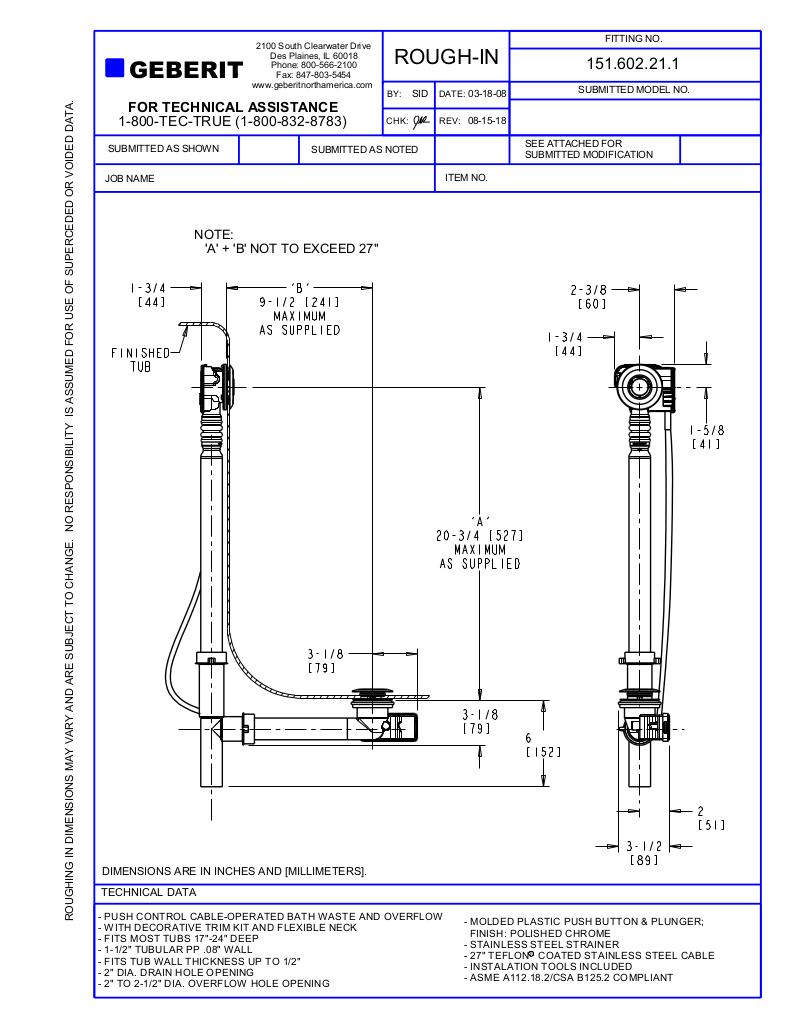

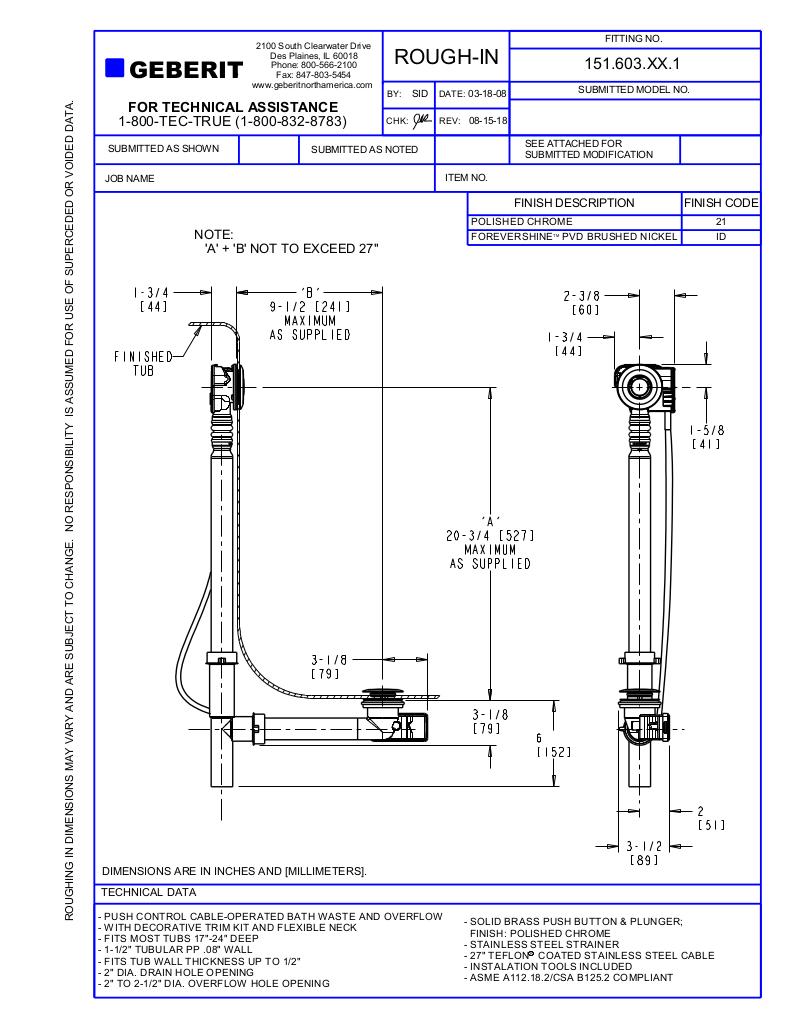

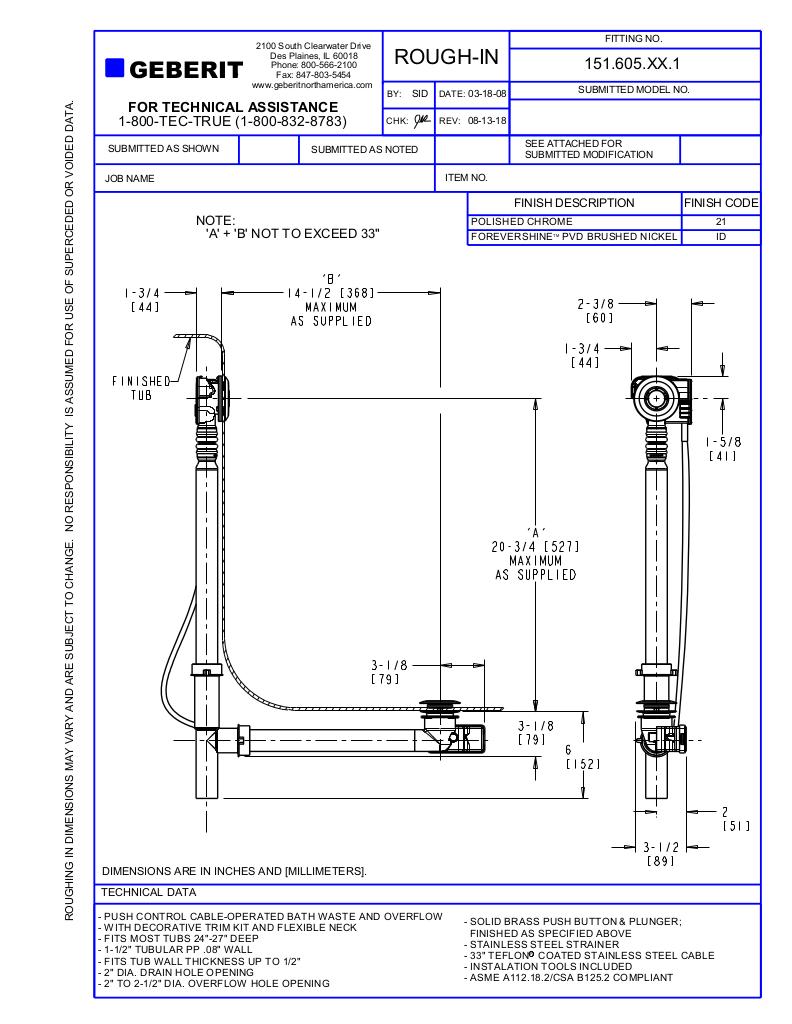

• Note: Roughing-in dimensions may vary and are subject to change
