Concealed Tank

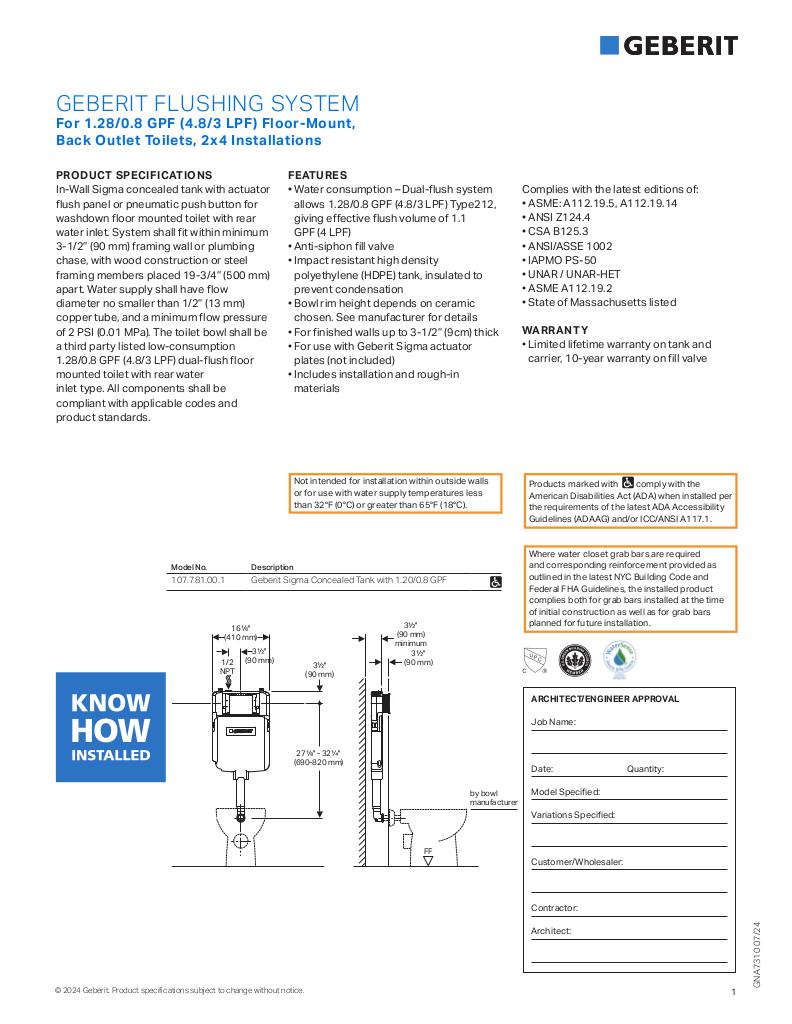

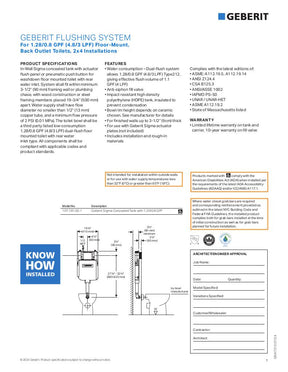

The Geberit Sigma Concealed Tank offers many of the benefits of the Geberit in-wall toilet system and replaces a standard toilet when a wall-hung toilet is not possible or practical. All the working parts, including the tank and fill and flush valves, are concealed inside the wall. The 1.28/0.8 GPF version (109.781.00.1) is specified for 1.28/0.8 GPF (4.8/3 LPF) floor-mount, back outlet toilets in 2x4 installations.

Features

• 1.28/0.8 GPF version: dual-flush system allowing 1.28/0.8 GPF (4.8/3 LPF), giving an effective flush volume of 1.1 GPF (4 LPF).
• 1.28/0.8 GPF version: anti-siphon fill valve and an impact resistant high density polyethylene (HDPE) tank, insulated to prevent condensation.
• 1.28/0.8 GPF version: for finished walls up to 3-1/2" (9cm) thick and for use with Geberit Sigma actuator plates (not included).
• 1.28/0.8 GPF version: installation and rough-in materials are included.
• 1.28/0.8 GPF version: not intended for installation within outside walls or for use with water supply temperatures less than 32°F (0°C) or greater than 65°F (18°C).

Specifications

• Flush volume options: 1.6/0.8 GPF, 1.28/0.8 GPF
• Collection: Sigma
• Complies with (1.28/0.8 GPF version): ASME A112.19.5, A112.19.14, A112.19.2; ANSI Z124.4; CSA B125.3; ANSI/ASSE 1002; IAPMO PS-50; UNAR / UNAR-HET; State of Massachusetts listed
• Warranty (1.28/0.8 GPF version): Limited lifetime warranty on tank and carrier; 10-year warranty on fill valve
