Concealed Tank

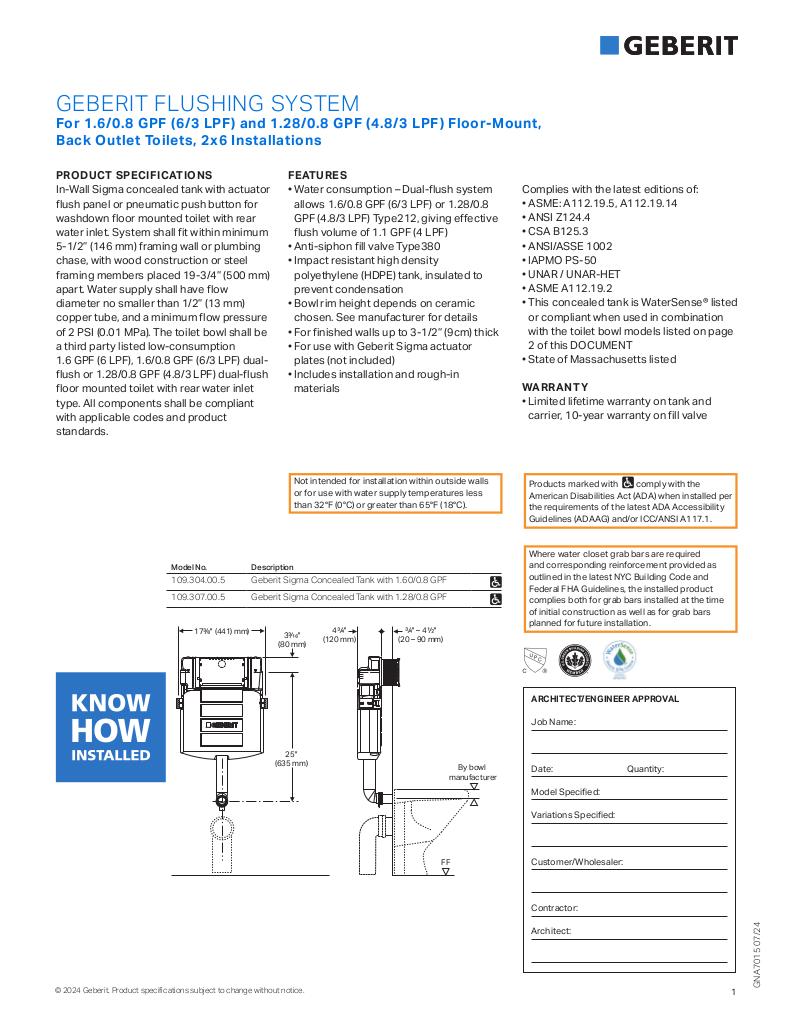

The Geberit Sigma Concealed Tank is an in-wall concealed tank with actuator flush panel or pneumatic push button for a washdown floor-mounted toilet with rear water inlet. It is made for 1.6/0.8 GPF (6/3 LPF) and 1.28/0.8 GPF (4.8/3 LPF) floor-mount, back outlet toilets in 2x6 installations. The tank and fill and flush valves are concealed inside the wall, which makes it an option when a wall-hung toilet is not possible or practical.

Features

• Dual-flush system, Type212, giving an effective flush volume of 1.1 GPF (4 LPF)
• Anti-siphon fill valve Type380
• Impact resistant high density polyethylene (HDPE) tank, insulated to prevent condensation
• For finished walls up to 3-1/2" (9cm) thick
• For use with Geberit Sigma actuator plates (not included)
• Includes installation and rough-in materials

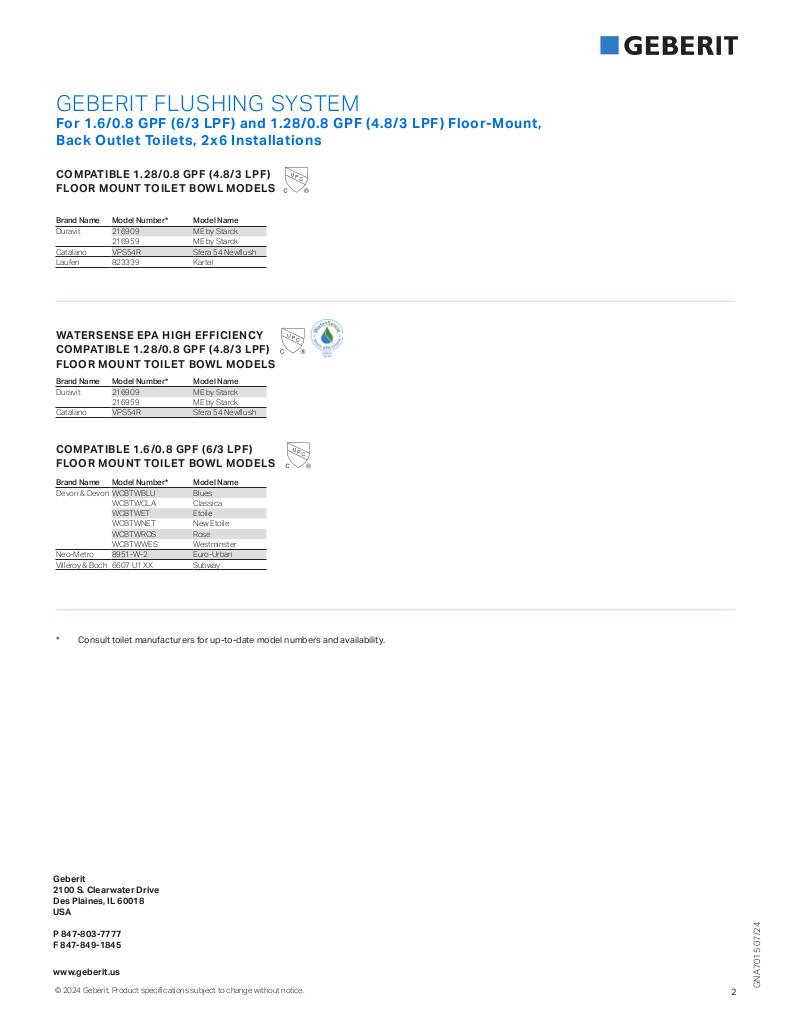

• WaterSense® listed or compliant when used in combination with specified toilet bowl models
• Installation: the system fits within a minimum 5-1/2" (146 mm) framing wall or plumbing chase with wood or steel framing members placed 19-3/4" (500 mm) apart; water supply no smaller than 1/2" (13 mm) copper tube with a minimum flow pressure of 2 PSI (0.01 MPa)
• Not intended for installation within outside walls or for use with water supply temperatures less than 32°F (0°C) or greater than 65°F (18°C)

Specifications

• Models: 109.304.00.5: 1.6/0.8 GPF; 109.307.00.5: 1.28/0.8 GPF
• Tank material: High density polyethylene (HDPE)
• Fill valve: Anti-siphon, Type380
• Standards: ASME A112.19.5, A112.19.14; ANSI Z124.4; CSA B125.3; ANSI/ASSE 1002; IAPMO PS-50; UNAR / UNAR-HET; ASME A112.19.2
• Listings: State of Massachusetts listed
• Warranty: Limited lifetime warranty on tank and carrier, 10-year warranty on fill valve
