Palladian® Floor Mount Tub Filler AKIT1901NXM

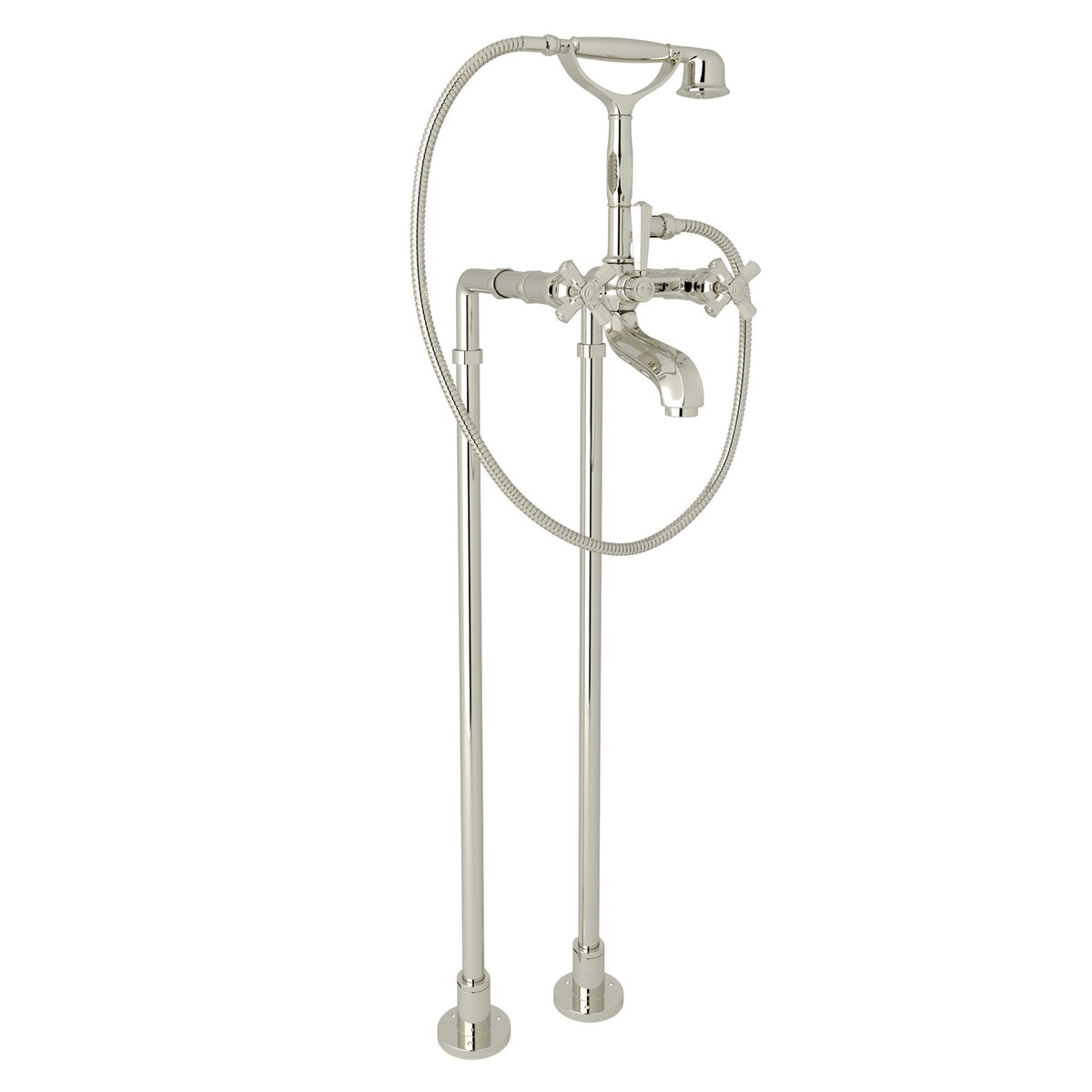

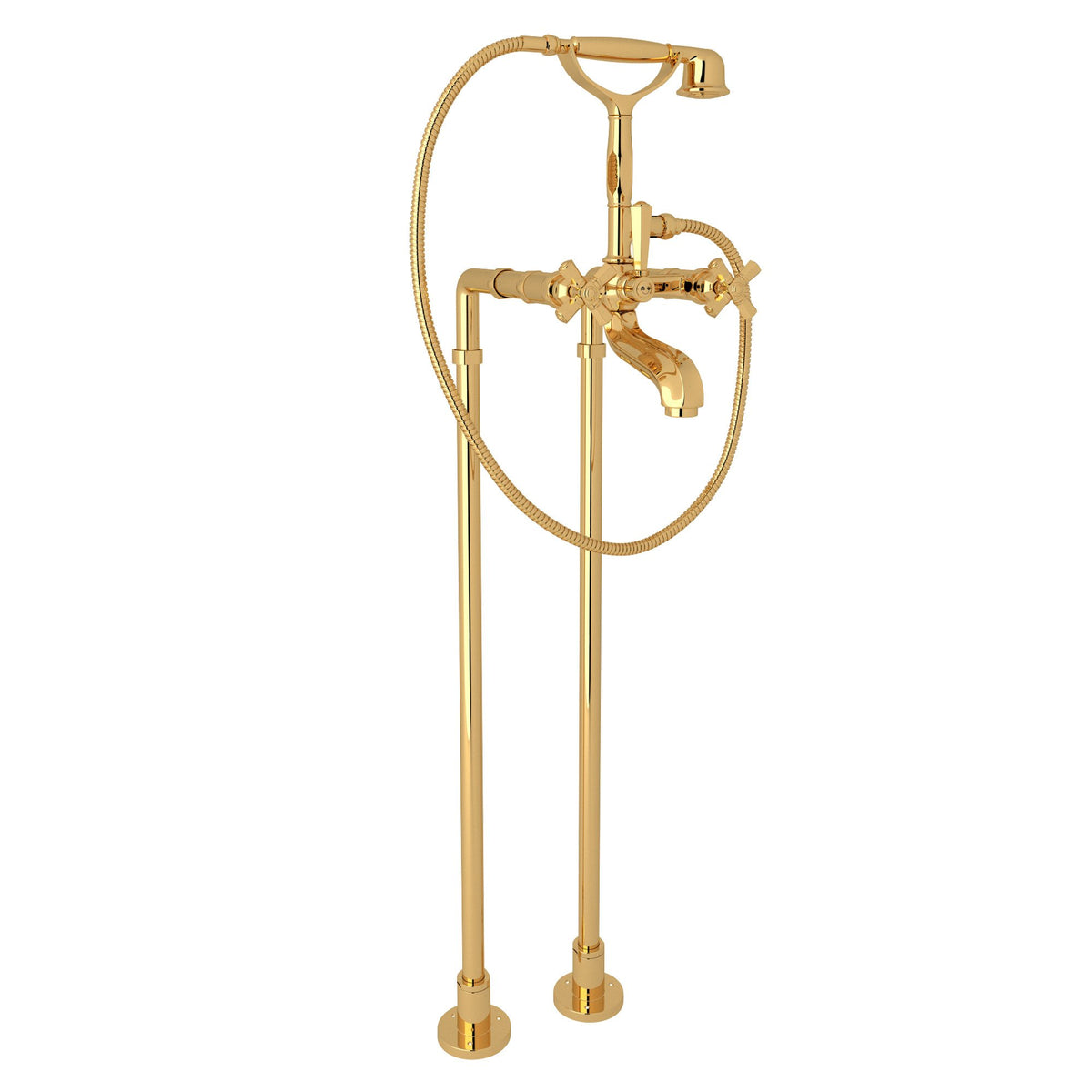

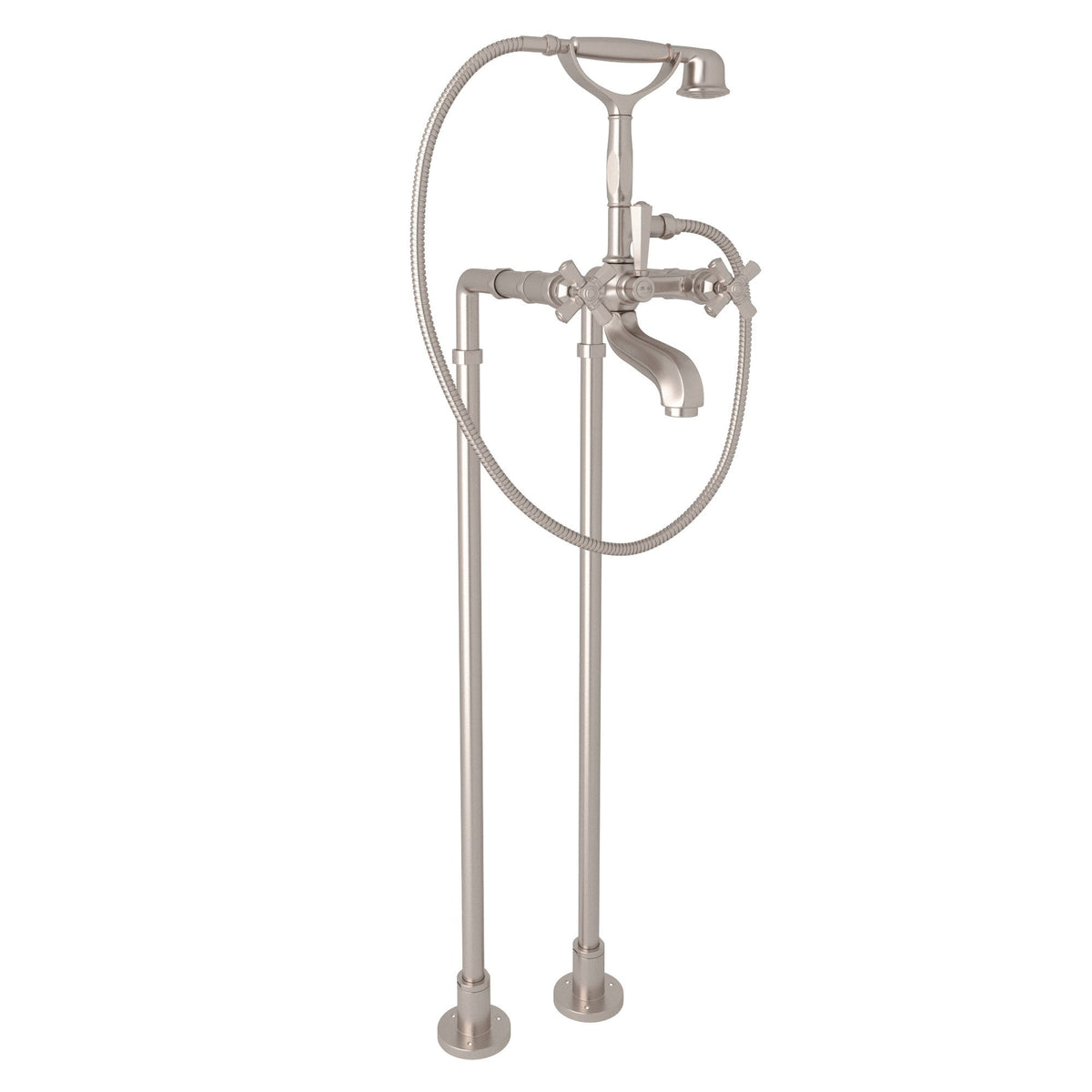

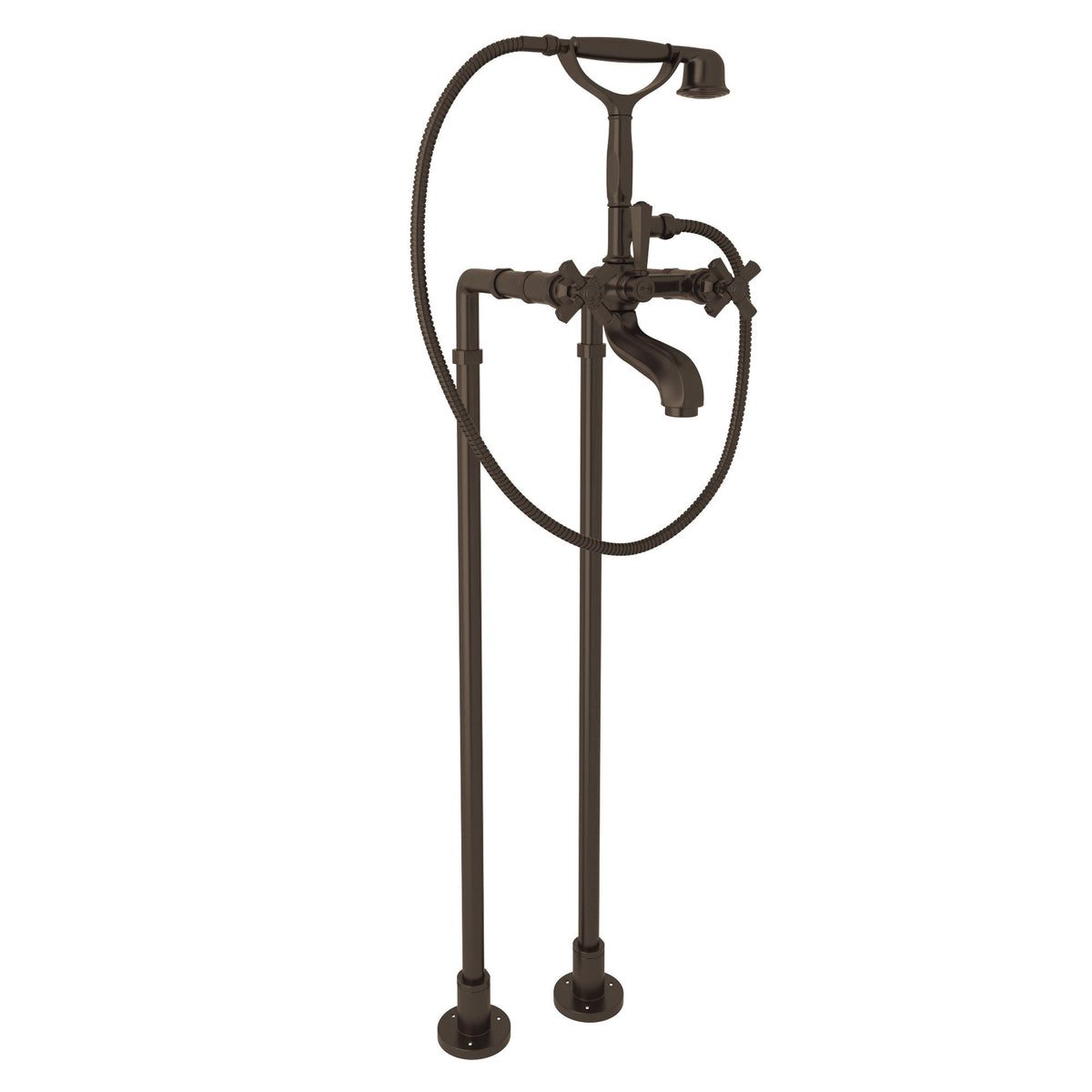

The ROHL Palladian® floor mount tub filler AKIT1901NXM is a floor-mounted exposed two-handle tub filler with cross handles, a cradle and a single-function brass handshower with metal insert. It flows at 8 GPM/30 LPM at 60 PSI (CEC compliant), and the anti-calcium hand spray flows at 1.8 GPM at 60 PSI. The kit includes ZA386 floor legs, and no additional rough-in valve is required to install it.

Features

• 5 29/32” center to center ± 5/16”; not eccentric, with a fixed center to center measurement
• 39 3/8” length flexible hose
• Spout reach min. 7 7/8”, max. 8 1/4”
• Spout outlet height 30 3/8”
• 1/4-turn ceramic disc valves
• 1/2” female NPT inlet
• Maximum male stub out 9/16” for floor legs; floor legs cannot be cut down

Specifications

• Collection: Palladian
• Model: AKIT1901NXM
• Finish: Tuscan Brass
• Mounting: Floor
• Material: Brass
• Style: Transitional
• Tub filler flow rate: 8 GPM/30 LPM at 60 PSI
• Hand spray flow rate: 1.8 GPM at 60 PSI
• Standards: ASME A112.18.1/CSA B125.1
• Country of origin: Italy
• Installation requirements: 2 x 1/2” NPT male stub outs at 5 29/32” center; if installing with an Italian Bath exposed tub filler, a set of adaptors C5574EXT must be installed
