Palladian® Floor Mount Tub Filler AKIT1901NLM

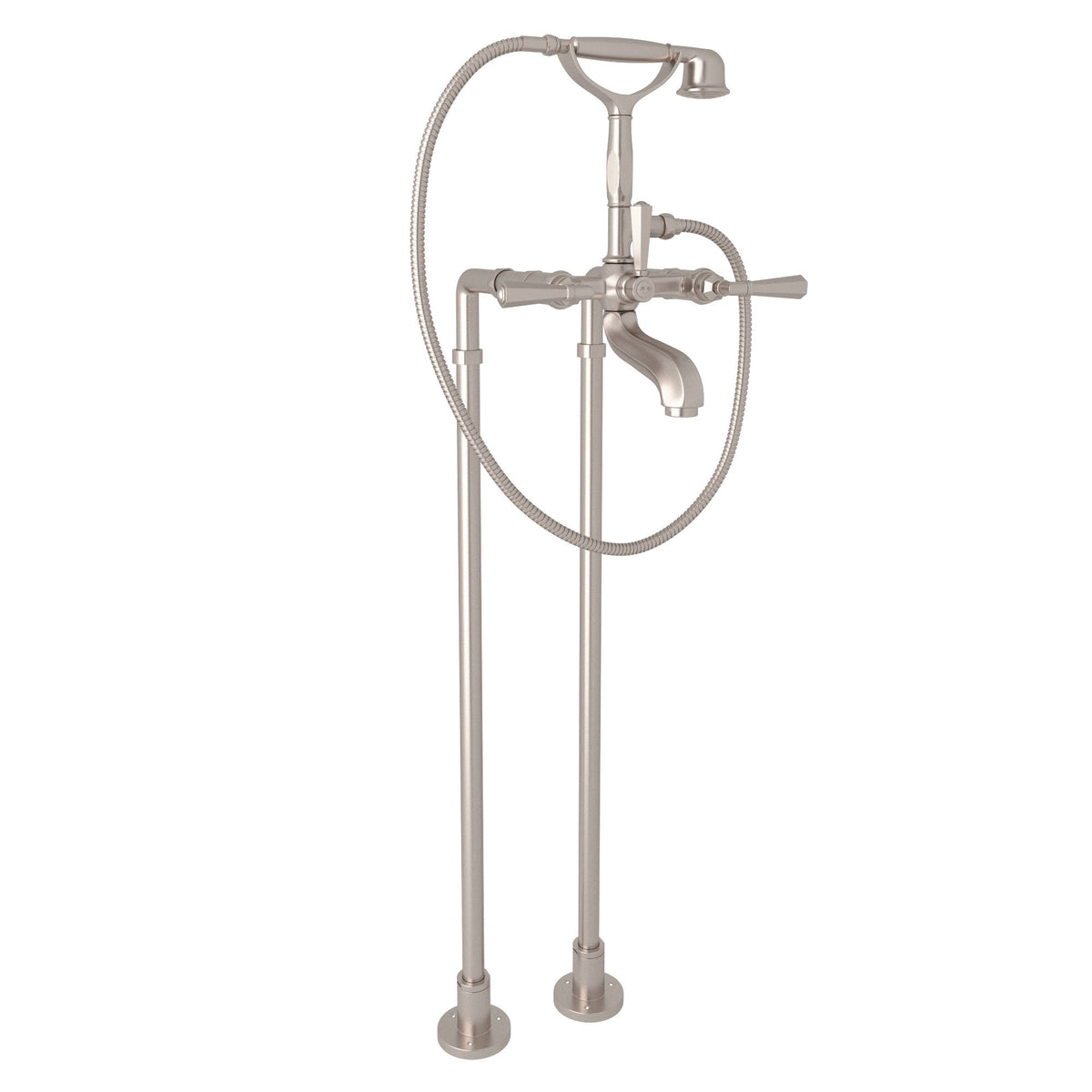

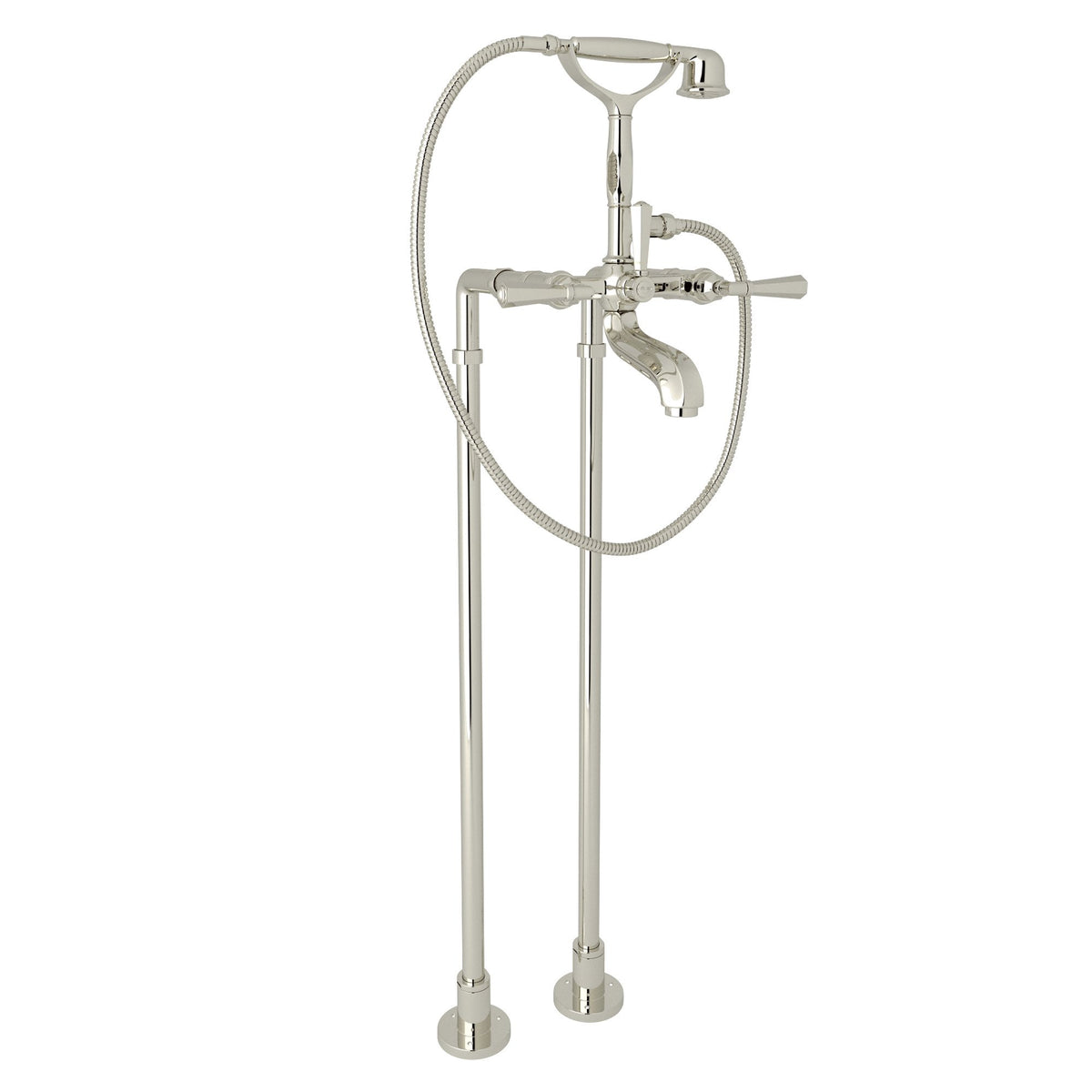

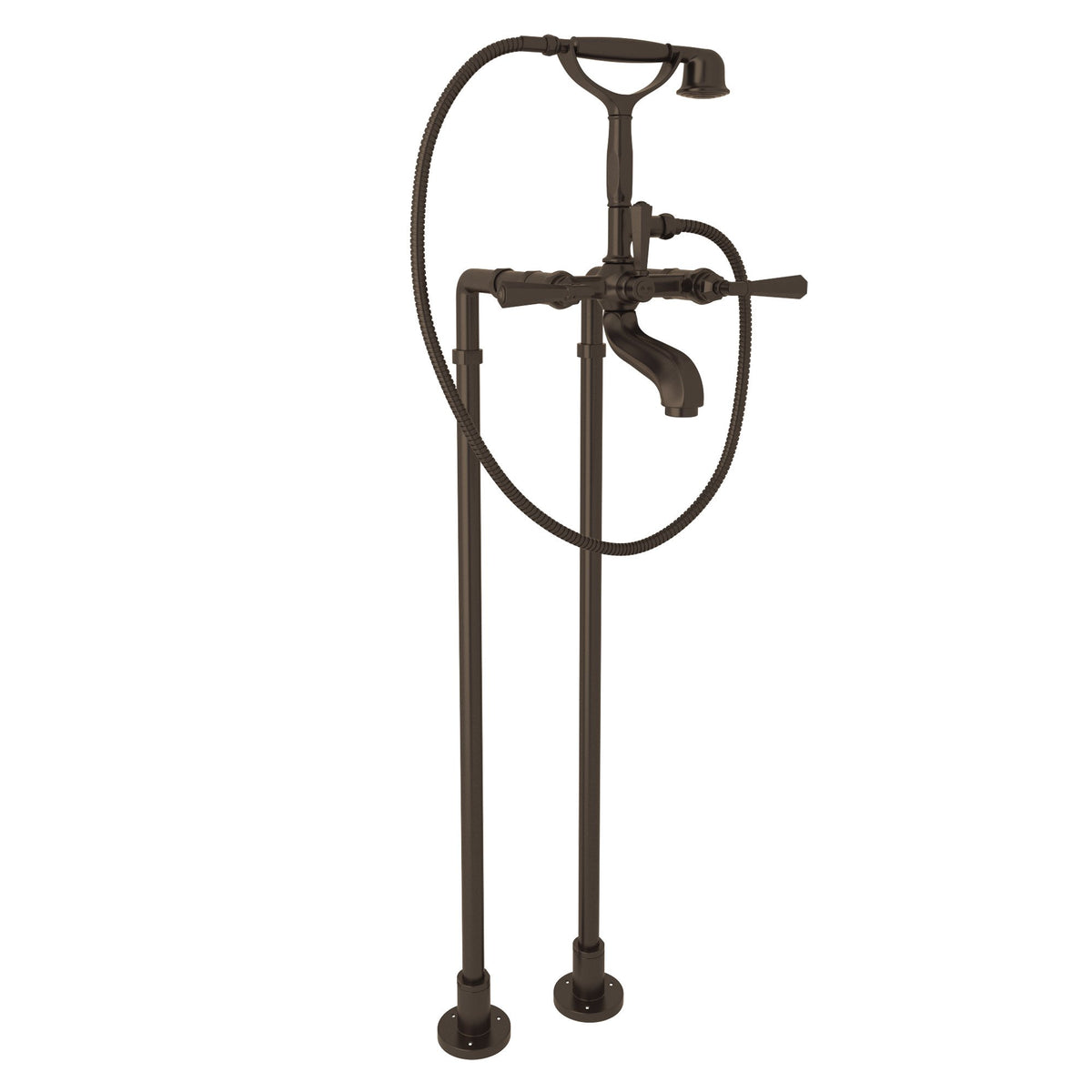

The ROHL Palladian® Floor Mount Tub Filler AKIT1901NLM is a floor-mounted, exposed two-handle tub filler with metal levers, a cradle and a single-function brass handshower with metal insert. The kit includes ZA386 floor legs, and no additional rough-in valve is required to install it. It has a 1/2” female NPT inlet and 1/4-turn ceramic disc valves, and it is listed to ASME A112.18.1/CSA B125.1.

Features

• Single-function anti-calcium metal handshower
• 39 3/8” length flexible hose
• Not eccentric; has a fixed center to center measurement
• Floor legs cannot be cut down
• 1/4-turn ceramic disc control cartridges
• Warranty: Limited Lifetime on Polished Chrome, Polished Nickel and Satin Nickel; 5-year Limited Warranty on Italian Brass; no warranty on Tuscan Brass

Specifications

• Collection: Palladian
• Model: AKIT1901NLM (metal levers)
• Mounting: Floor
• Inlet: 1/2” female NPT
• Center to center: 5 29/32” ± 5/16”
• Spout reach: Min. 7 7/8”, max. 8 1/4”
• Spout outlet height: 30 3/8”
• Hose length: 39 3/8”
• Included: ZA386 floor legs
• Standards: ASME A112.18.1/CSA B125.1
• Available finishes: Polished Chrome, Italian Brass, Polished Nickel, Satin Nickel, Tuscan Brass
